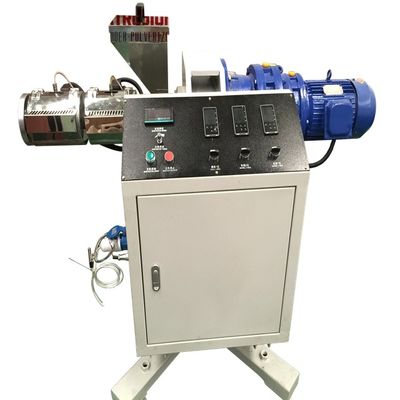

Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine

Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine
Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine

Large Image :  Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine

Product Details:

Place of Origin: CN;JIA
Brand Name: BEISU
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 - 2 Sets
Price: $18,000.00
Packaging Details: Plastic film packing or wood package as customer requirements
Supply Ability: 150 Set/Sets per Year
Detailed Product Description
Application: Straw, Straw, Straw, Straw, Straw, Straw Plastic Processed: FRPP/PVC, FRPP/PVC, FRPP/PVC, FRPP/PVC, FRPP/PVC, FRPP/PVC
Condition: New Output (kg/h): 2 - 20kg/h
Screw Design: Single-screw Screw Material: 38CrMoALA
Screw Diameter (mm): 25 Screw L/D Ratio: 25:1
Screw Speed (rpm): 120rpm Showroom Location: None
Voltage: 220V/380V/440V/415V Dimension(L*W*H): Customized
Power (kW): 1.5 Weight: 300Kg
Warranty: 1 Year After-sales Service Provided: Online Support, Online Support, Online Support, Online Support, Online Support
Key Selling Points: Multifunctional After Warranty Service: Field Maintenance And Repair Service, Field Maintenance And Repair Service, Field Maintenance And Repair Service, Field Maintenance And Repair Service
Local Service Location: None Applicable Industries: Manufacturing Plant
Marketing Type: Hot Product 2019 Video Outgoing-inspection: Provided
Machinery Test Report: Provided Warranty Of Core Components: 1 Year
Core Components: Screw, Screw, Screw, Screw, Screw, Screw, Screw, Screw Raw Material: PE/PVC/PP/PU/TPE/ABS/PA
Extruder Model: SJ25/25;SJ30/25;SJ45/30 Screw Type: Single
Screw Length: 625mm;725mm;1350mm Screw Material: 38 CRMOALA
Extruder Speed: 1-120RPM Motor Power: 1.5Kw Or 2.2Kw Or 3Kw
Inverter Brand: ABB Or Delta Temperature Brand: OMRON,JAPAN
Contactor Brand: SCHNEIDER Or SIEMENS Port: SHANGHAI Or NINGBO PORT
High Light:

20kg/h ppr pipe extrusion machine

,

25mm ppr pipe extrusion machine

,

25mm ppr pipe extrusion line



 Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine 0

Application of single screw extruder: The single-screw extruder is mainly used for extruding soft and hard PVC, polyethylene and other thermoplastics. It can process a variety of plastic products, such as blown film, extruded tube, pressing plate, drawing ribbon, etc., and can also be used for melt granulation. The plastic extruder has advanced design, high quality, good plasticization and low energy consumption. It adopts involute gear transmission, which has the characteristics of low noise, stable operation, large bearing capacity and long life.

The usege of single screw extruder in various fields: A1 single screw pipe extrusion: suitable for PP-R pipe, PE gas pipe, PEX cross-linked pipe, aluminum-plastic composite pipe, ABS pipe, PVC pipe, HDPE silicon core pipe and various co-extruded composite pipes. A2 Single screw plate and sheet extrusion: suitable for the extrusion of PVC, PET, PS, PP, PC and other profiles and plates. Extrusion of various other plastics such as silk and rods. A3 Extrusion of single-screw profiles: Adjusting the speed of the extruder and changing the structure of the extruder screw can be applied to the production of various plastic profiles such as PVC and polyolefins. Modified granulation: It is suitable for blending, modifying and enhancing granulation of various plastics.
Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine 1
Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine 2
Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine 3
Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine 4
Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine 5
Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine 6
Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine 7
Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine 8
Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine 9
Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine 10
Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine 11
Machine Model
Capacity
Screw Rotating Speed
Main Motor Power
SJ-25
5-10kg/h
10-110r/min
2.2kw
SJ-30
10-20kg/h
10-110r/min
3kw
SJ-35
20-30kg/h
10-90r/min
4kw
SJ-45
30-50kg/h
10-90r/min
7.5/11kw
SJ-50
50-80kg/h
10-90r/min
15-22kw
SJ-65
80-120kg/h
10-90r/min
30-45kw
SJ-75
120-150kg/h
10-90r/min
37-75kw
SJ-90
150-200kg/h
10-90r/min
45-110kw
SJ-120
200-300kg/h
10-90r/min
75-160kw
SJ-150
300-400kg/h
10-90r/min
110-185kw
SJ-200
500-600kg/h
10-90r/min
132-280kw
Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine 12
Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine 13
The core patents of Single screw extruder:
A1: Extruder screw It is a key component of plastic transportation and plasticization. Due to its rotation, the plastic is pushed forward to achieve compaction, melting and mixing. The thread is composed of different functional parts to achieve better conveying, compaction, mixing, plasticizing effect and high output. The screw material is made of high-quality nitrided steel (38CrMoALA), and is nitrided and finely ground. It has high corrosion resistance and wear resistance, and has a long service life. A2: Extruder head flange joint It is part of the joint and barrel and is heated by a heating ring to prevent the molten plastic from cooling. A3: Extruder drive system The transmission system will evenly rotate the screw with the necessary torque under the selected process conditions to complete the plasticization and transportation of the plastic to the screw. In order to meet the production requirements of various specifications of plastic products, the screw should have different speeds. The machine uses a variable frequency motor to directly drive the gearbox through the coupling, and uses a speed regulator to achieve speed regulation, so that the screw speed can be smoothly adjusted within the speed range, and the screw speed can be directly adjusted. It is read by the tachometer on the control panel. It can also be read directly on the governor.
Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine 14
Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine 15
Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine 16
Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine 17
Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine 18
Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine 19

Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine 20
