270mm PVC Ceiling Panel Plastic Profile Production Line High Durability

270mm PVC Ceiling Panel Plastic Profile Production Line High Durability
270mm PVC Ceiling Panel Plastic Profile Production Line High Durability 270mm PVC Ceiling Panel Plastic Profile Production Line High Durability 270mm PVC Ceiling Panel Plastic Profile Production Line High Durability 270mm PVC Ceiling Panel Plastic Profile Production Line High Durability 270mm PVC Ceiling Panel Plastic Profile Production Line High Durability

Large Image :  270mm PVC Ceiling Panel Plastic Profile Production Line High Durability

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: BS-270
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film packing and pallet fix the machine bottom
Delivery Time: 35 working days
Payment Terms: L/C, D/P, T/T
Supply Ability: 10 Set per month
Detailed Product Description
Material: PVC+addtives Products: PVC Ceiling Panel Profiles
Extruder Model: SJSZ55/120 Extruder Power: 22Kw
Vacuum Power: 4Kw Water Power: 4Kw
Haul Off Power: 3Kw Cutter Power: 2.2Kw
Inverter Brand: ABB Or Delta Temperature Control Brand: OMRON
Line Length: 20000mm
High Light:

pvc profile production line

,

pvc profile manufacturing machine

270mm PVC ceiling panel production line twin extruder profile making machine



Application:

PVC ceiling panel production line, also known as PVC siding production line, PVC hollow plastic material, is one of the common materials for decoration and decoration. It is widely used in kitchens, bathrooms, baths, shopping malls, etc. The color pattern on the surface of wallboard can be customized according to customer needs. It has the characteristics of colorful patterns.



PVC ceiling panel production line produced by BEISU can be modified to be used in the following production lines: PVC gusset production line, PVC siding production line, PVC foam board production line, PVC window sill production line, PVC ceiling production line, stone plastic line production line etc.



Layout:

PVC Raw material+additive→Mixing Unit→Auto Feeder→Conical Twin-screw Extruder→-Moulds→Vacuum Calibration Tank→Haul-off&Cutting Machine→Stacker



270mm PVC Ceiling Panel Plastic Profile Production Line High Durability 0





Features Specifications:

A1:The PVC ceiling panel production line produced by BEISU uses high-speed and high-efficiency SJZ-55/120 conical twin-screw extruder. The whole line has high output and low failure rate. It adopts ABB inverter speed control, imported Omron temperature control, and temperature control. High precision, small temperature fluctuations and so on.

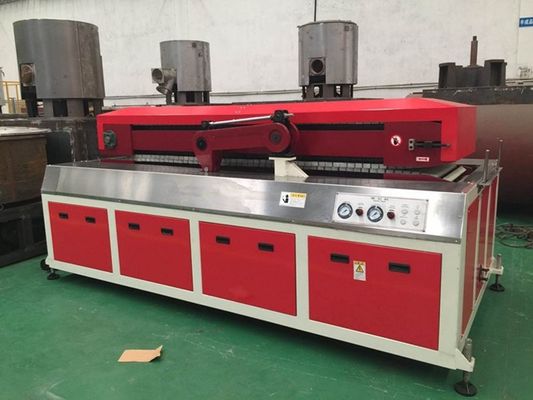

A2:The auxiliary machine of the PVC ceiling panel production line produced by BEISU consists of a vacuum setting table, a tractor, a cutting machine and a bronzing film laminating equipment. The gusset plate produced by the machine has the characteristics of firmness, smoothness and durability.



A3:The PVC ceiling panel production line produced by BEISU Machinery is equipped with a chiller to ensure the forming effect of the PVC gusset. The double rubber crawler type traction machine adopts imported bearings and ABB frequency converter, which has the advantages of stable traction, strong grip and low energy consumption.



Details specification pictures of PVC ceiling panel production line:

270mm PVC Ceiling Panel Plastic Profile Production Line High Durability 1

270mm PVC Ceiling Panel Plastic Profile Production Line High Durability 2

270mm PVC Ceiling Panel Plastic Profile Production Line High Durability 3

270mm PVC Ceiling Panel Plastic Profile Production Line High Durability 4



Main technical parameter for Trunking &Ceiling conner&cable duct,Rain gutter:

Modle Product Range Extrusion Output(kg/hr) Line Speed(m/mim) KW Lenght(m)
PVC-55 150*80 150 0~10 80 15~20
PVC-45 150*80 100 0~10 60 15~20
PVC-45 150*80 60 0~10 40 12~20



Main technical parameter for Ceiling Panel,Windows,doors&Foam profiles:

Modle Product Range Extrusion Output(kg/hr) Line Speen(m/mim) KW Lenght(m)
PVC-80 240*100 360 0~10 120 24~28
PVC-65 240*100 240 0~10 100 22~25
PVC-55 150*80 150 0~10 80 20~24



BEISU Machinery:

BEISU machinery and equipment recommendation: PVC/PE/PP pipe production line, PVC/PE wood plastic production line, PVC profile/profile production line, PVC/PP/PE/ABS sheet/sheet production line, PVC edge band production line and mill, High-speed mixer (group), crusher, sharpener, shredder, tractor, winder, cutting machine and other plastic auxiliary machinery.



Why choose BEISU Machinery:
A1: Plant construction, renovation plan, pipeline laying plan in the plant, construction plan of circulating cooling pool, etc.;

A2: Supply of raw materials, transformers, air compressors and other procurement plans;

A3: Provide relevant raw material specific formula, high quality raw material suppliers, raw material cost accounting, etc. ;

A4: Installation equipment, commissioning equipment, training staff, and provide technical support throughout the year;

A5: BEISU company has a plastics industry engineering alliance nationwide, in the case of distance, can provide relevant talents in your company year-round work, as a technology backing.
