T5 T8 LED Lighting Tube Production Line 380V 50Hz Voltage Compact Structure

Certification
China Zhangjiagang Beisu Machinery Co., Ltd. certification
China Zhangjiagang Beisu Machinery Co., Ltd. certification
The quality of the machine of Beisu Machinery is very stable, the output is high, the details are very user friendly, and they provide a quick response when we need service.

—— Ahmed Zeitoun

The quality of the high speed mixer produced by Beisu Machinery is outstanding. We have ordered 3 sets of equipment and they are all in use. Maria provides our professional and prompt after sales service.

—— Adrew

I'm Online Chat Now

T5 T8 LED Lighting Tube Production Line 380V 50Hz Voltage Compact Structure

T5 T8 LED Lighting Tube Production Line 380V 50Hz Voltage Compact Structure
T5 T8 LED Lighting Tube Production Line 380V 50Hz Voltage Compact Structure T5 T8 LED Lighting Tube Production Line 380V 50Hz Voltage Compact Structure T5 T8 LED Lighting Tube Production Line 380V 50Hz Voltage Compact Structure T5 T8 LED Lighting Tube Production Line 380V 50Hz Voltage Compact Structure T5 T8 LED Lighting Tube Production Line 380V 50Hz Voltage Compact Structure

Large Image :  T5 T8 LED Lighting Tube Production Line 380V 50Hz Voltage Compact Structure

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: BS-65/30
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Plastic films with wood tray
Delivery Time: 30 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 SET PER YEAR
Detailed Product Description
MOTOR: SIEMENS MOTOR POWDER: 15kw
GEAR BOX: GUOMAO INVERTER: ABB
TEMPERATURE CONTROLLER: OMRON Application: Profile
Voltage: 380V 50HZ 3Phase(Customized) Condition: New
High Light:

plastic extrusion line

,

plastic extruder

Plastic single screw extruder for make T5 T8 PC/ABS LED Tube



Application:

Single-screw extruder can be applied to the processing of thermoplastic pipes, plates, sheets, bars, profiles and plastic granulations such as PP, PE, PS, ABS, PMMA, PVC, etc. For different raw material and product specifications, the screw uses different aspect ratios and compression ratios, and the barrel has a different structure. Choose the right barrel, screw and drive mechanism to meet the processing needs of high quality products.



Single screw plastic extruder features:

● High output and low energy consumption.

● Each gear in the hardened gearbox is heat treated and finished with a forced cooling system to ensure high efficiency, low noise and long service life.

● Screw geometry parameters, reasonable design, different products, different products, screw has different length to diameter ratio and structure to meet the needs of different customers.

● The heating section of the plastic extruder barrel has two structures, grooved and smooth, to meet the needs of different raw materials.

● The screw and barrel of the plastic extruder are made of high-performance alloy steel, which has the advantages of wear resistance, corrosion resistance and high strength.

● The design of the plastic extruder is compact and reasonable, easy to operate and easy to maintain.

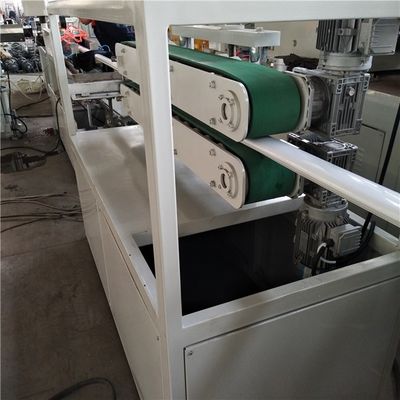

Details specification pictures of Plastic extruder:

T5 T8 LED Lighting Tube Production Line 380V 50Hz Voltage Compact Structure 0

T5 T8 LED Lighting Tube Production Line 380V 50Hz Voltage Compact Structure 1

T5 T8 LED Lighting Tube Production Line 380V 50Hz Voltage Compact Structure 2

T5 T8 LED Lighting Tube Production Line 380V 50Hz Voltage Compact Structure 3

T5 T8 LED Lighting Tube Production Line 380V 50Hz Voltage Compact Structure 4



Technical parameter:

Model L/D Output(kg/h) Speed(r/min) Drive power Center height(MM)
SJ25 25/1 5 20-120 2.2 1000
SJ30 25/1 10 20-180 5.5 1000
SJ45 25-33/1 50-150 20-150 7.5-22 1000
SJ65 25-33/1 60-250 20-150 22-90 1000
SJ75 25-33/1 200-350 20-150 55-110 1100
SJ90 25-33/1 280-550 20-110 37-185 1000-1100
SJ120 25-33/1 320-880 20-90 75-280 1000-1250
SJ150 25-33/1 400-1200 20-75 90-355 1000-1300



FAQ

Q1: Are you a factory or trading company?
A: We are the manufacturer and we have 15 years factory experience .As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit to our factory.
Q2: How long is the delivery time?
A: For standard machines, it would be 7-10 working days; For non-standard machines and customized machines according to client s specific requirements, it would be 25 to 35 working days.
Q3: How should I pay for my order ? what is the procession of this purchase?
A:You can do 30% prepayment at first, then we will start to make production. When the machines are ready , we will take pictures and videos to you, and then you can do the balance.After we got your payment. We will send the machine to you.
Q4:How is the machine warranty and after-sale service?
A: All our machine would have a warranty of 12 months since the date of machine installation in client's factory. And beyond warranty period, we can offer spare parts or repair service with or without charges.
