Double Electrical Threading PVC Pipe Production Line 16 - 40mm Pipe Dia

China Double Electrical Threading PVC Pipe Production Line 16 - 40mm Pipe Dia supplier
Double Electrical Threading PVC Pipe Production Line 16 - 40mm Pipe Dia supplier Double Electrical Threading PVC Pipe Production Line 16 - 40mm Pipe Dia supplier Double Electrical Threading PVC Pipe Production Line 16 - 40mm Pipe Dia supplier Double Electrical Threading PVC Pipe Production Line 16 - 40mm Pipe Dia supplier Double Electrical Threading PVC Pipe Production Line 16 - 40mm Pipe Dia supplier

Large Image :  Double Electrical Threading PVC Pipe Production Line 16 - 40mm Pipe Dia

Product Details:

Place of Origin: ZHANGJIAGANG,CHINA
Brand Name: BEISU
Certification: CE
Model Number: GF40

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plastic film,40GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Raw Material: PVC Powder,Caco3 Pipe Diameter: 16-40mm
Main Motor Powder: 18.5kw Istall Power: 75kw
Processing Type: Pipe Extrusion Machine Voltage: 380V 50HZ 3Phase(Customized)
After-sales Service Provided: Engineers Available To Service Machinery Overseas

Twin extruder 16-40mm PVC Double Electrical Threading Pipe Production Line



Layout:



PVC Raw material+additive→Mixing Unit→Auto Feeder→Conical Twin-screw Extruder→-Moulds→Vacuum calibration tank→Haul-off→Cutting Machine→Stacker

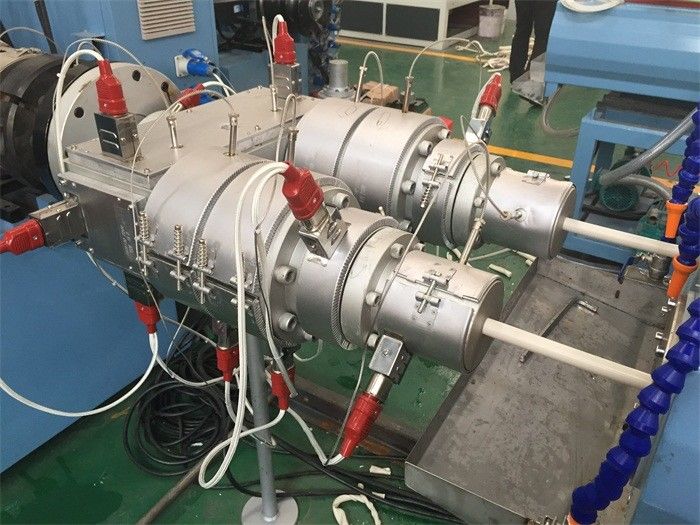

Double Electrical Threading PVC Pipe Production Line 16 - 40mm Pipe Dia

Summary:



The Pvc threading pipe equipment is mainly composed of a conical twin-screw extruder, and is equipped with different pipe head molds and corresponding auxiliary machines. It is mainly used to produce double PVC pipes. The PVC pipes produced are mainly used for electrician threading pipes and the like. The production line makes full use of the extrusion capacity of the extruder to produce small-diameter pipes, which can achieve extremely high quality, high production efficiency, safe and convenient operation and use.


The whole structure of the pvc threading pipe equipment is reasonable, the performance is stable and reliable, and the synchronous speed regulation of the main motor and the traction machine motor of the extruder is realized. The vacuum sizing method is adopted, and the sizing effect is good and the degree of automation is high.


Pvc threading pipe equipment auxiliary machine vacuum sizing box is double pipe sizing, which is composed of two sizing boxes and can be operated separately. The sizing box is 5 meters long and made of stainless steel. The liquid level is controlled by a visual level automatic controller, and the front and rear movement is controlled by the motor. The tractor adopts frequency conversion speed regulation, and the clamping adopts pneumatic control clamping. The cutting machine automatically cuts the length, and the stacker can be automatically flipped.



TDouble Electrical Threading PVC Pipe Production Line 16 - 40mm Pipe DiaDouble Electrical Threading PVC Pipe Production Line 16 - 40mm Pipe DiaDouble Electrical Threading PVC Pipe Production Line 16 - 40mm Pipe DiaDouble Electrical Threading PVC Pipe Production Line 16 - 40mm Pipe Dia

Main technical parameter:



Pipe Range 16-40mm 16-63mm
Extruder Model SJSZ51/105 SJSZ65-132
Extruder power 22Kw 37Kw
Extrusion Capacity 135Kg/h 250Kg/h
Max.Production Speed 2*8m/min 2*10m/min



1. Delivery method: delivery by the supplier factory, simple packaging of domestic customers' films, wooden packaging of foreign customers.

2. Mode of transportation: The supplier shall charge the consignment, and the expenses shall be borne by the acquirer.

3. Payment method: The buyer must prepay 30% of the total equipment to the supplier as a deposit; 70% of the total equipment will be paid before the equipment is processed; the equipment arrives at the demanding factory after commissioning.

4, quality assurance: equipment quality warranty period is one year.

5. Related after-sales service

a) Provide on-site installation instructions

b) Responsible for on-site commissioning of equipment (users provide room and board for commissioning personnel)

c) Responsible for pre-employment operation and maintenance training for the demand side personnel

d) Long-term guarantee of spare parts supply

e) Long-term technical advisory services

6. Delivery time: After the contract is signed and the deposit of the purchaser is received, the processing and production of the equipment is completed within 30 working days and the delivery conditions are met. (The factory only needs 3-7 working days for stocking).
