Shockproof MPP Plastic Pipe Production Line With Excellent Electrical Insulation

China Shockproof MPP Plastic Pipe Production Line With Excellent Electrical Insulation supplier
Shockproof MPP Plastic Pipe Production Line With Excellent Electrical Insulation supplier Shockproof MPP Plastic Pipe Production Line With Excellent Electrical Insulation supplier Shockproof MPP Plastic Pipe Production Line With Excellent Electrical Insulation supplier

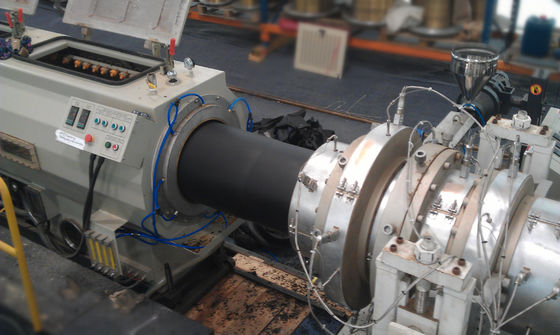

Large Image :  Shockproof MPP Plastic Pipe Production Line With Excellent Electrical Insulation

Product Details:

Place of Origin: CHINA
Brand Name: BEISU
Certification: CE
Model Number: BS-315

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plastic film packing and pellet fix on the bottom
Delivery Time: 90 working days
Payment Terms: T/T, L/C
Supply Ability: 2 sets per month
Contact Now
Detailed Product Description
Material: MPP Pipe Range: 160mm~315mm
Extruder Model: SJ-90/33 Max. Output: 280kg/h
Max.speed: 3.5m/min Warranty: 12 Months
Processing Type: Extrusion Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas

Shock proof MPP 160-315mm pipe extrusion line with excellent electrical insulation



Advantage of Beisu Extruder:



Traditional extruder:

The use of a smooth barrel provides limited friction, resulting in a significant reduction in the solids delivery efficiency of the extruder, resulting in lower yields for conventional smooth extruders and more difficult for extrusion of materials with high viscosity and low coefficient of friction. This greatly limits the application of single screw extruders.



IKV extruder with slotting in the feed section:

The groove is formed on the inner surface of the barrel feeding section, which helps to improve the friction coefficient between the plastic particles and the inner surface of the barrel, and hinders the plastic particles from sliding axially, thereby improving the solid conveying efficiency and finally greatly increasing the output. According to the different direction of the groove, it is divided into a straight groove and a spiral groove.



Details specification pictures of plastic pipe production line by BEISU Machinery:



Shockproof MPP Plastic Pipe Production Line With Excellent Electrical InsulationShockproof MPP Plastic Pipe Production Line With Excellent Electrical InsulationShockproof MPP Plastic Pipe Production Line With Excellent Electrical InsulationShockproof MPP Plastic Pipe Production Line With Excellent Electrical Insulation



Shockproof MPP Plastic Pipe Production Line With Excellent Electrical Insulation



Main technical parameter:



Pipe range 16-63mm 20-110mm 75-160mm 90-250mm 110-315mm 160-500mm 315-630mm 500-800mm
Extruder 65mm 65mm 75mm 75mm 90mm 90mm 120mm 150mm
Extruder power 37kw 56kw 110kw 110kw 160kw 185kw 250kw 335kw
Extrusion capacity 60-kg/h 100-150kg 250-300kg 250-300kg 350-400kg 400-500kg 450-750kg 750-1000kg
Max.production speed 10m/min 6m/min 6m/min 6m/min 3m/min 2m/min 0.9m/min 0.7m/min



Zhangjiagang Beisu Machinery has a professional and dedicated after-sales service team to provide customers with a full range of responsible and reliable service. Our customer service work is divided into three phases: pre-sales program discussion and design, production tracking and installation and commissioning, and after-sales service and maintenance.



Pre-sales program discussion and design:



According to the customer's actual crushing or processing line requirements, provide customers with the corresponding professional knowledge explanation; at the same time, our engineering team selects the equipment model for you, customizes the most reasonable and effective crushing scheme, and ensures the perfect combination of our equipment and site layout. Create the greatest value and leave you carefree.



We provide customers with the design of the production line process, and truly design a satisfactory and reasonable production line for customers. Often, in order to meet the special needs of our customers and achieve the best results, we will make non-standard design changes to our products and treat every customer with care.
