Product Details:
Payment & Shipping Terms:
|
| Material: | PVC/PE/PET/PP/PC/ABS/PS | Shaft Design: | Single |
|---|---|---|---|
| Power: | 30HP | Blades Material: | 9CrSi/D2/SKD-11 |
| Screen Mesh: | 8-20mm Or Customized | Capacity: | 50-450Kg/h |
| High Light: | sealing strip grind milling machine,ABS grinding milling machine,30HP grinding milling machine |
||

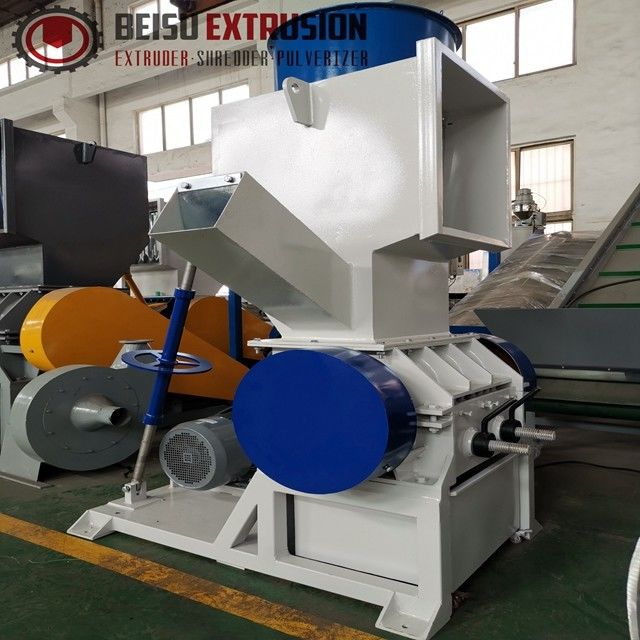

PC-400 Plastic PVC grinding milling machine for pipes and sealing strip
Waste plastic profiles crushing machine suitable for profiles, PET bottles, and various waste industries. According to per customer's requirements, such as the input size of the material, capacity and the final output size etc, we can work out a suitable proposal for our customers. After being shredded by the single shaft shredder/crusher/granulator machine, the output material could be used directly or go into the step of size reduction.
A1: All structure is made by steel, substantial and durable, it won't affect by uncrushed residual plastic keep efficiency.
A2: Havea heavy hearing, load prevent oil leakage and noise from procession no vibration during processing and make sure products are not polluted by oil.
A3: A safety protection system conncetiong between power and motor to prevent overload, enclose with safe pad to prevent cleaning knife in safety position.
A4: Modulation on knife stretch in and out, a blunt knife can be polished and keep using for a long time. Mill soft and hard plastic tank, crusher and filter net, easy for cleaning.
Technical characteristics service System of Plastic Crusher:
We will offer below items freely:
A1:Technical supports of Plastic Crusher
A2: All-sided sales service of Plastic Crusher
A3:Free assistance which is related to the plastic recycling and rebirthing.
A4:Plant design and making budget for the whole palnt.
A5:Previous on the the filed, and make economical analysis for all products.
A6:Offer purchasing guide and to help clients to choose machines, also, make analysis on the targeted machines.
A7: After-sales maintain and updated technical information for all clients.
Details of PVC grinding machine:
Features of PVC grinding milling machine:
A1: The body structure of the whole machine is made by steel, solid and durable.the long-term use is not due to crushing material influence the mechanical properties.
A2: Excellent mechanical properties, with claw blade type tool"is suitable for hard materials, such as glass, polymers, plastic and other material crushing" and "flat type fixed cutter is suitable for soft properties such as rubber film etc.."
A3: Load type bearing and oil seal device, and a sound proof clapboard, can effectively prevent the vibration and noise, ensures the processing object is not polluted by oil.
A4: Claw cutter tool manufacturing is directly installed in the internal machinery,design of automatic control, safe operation.
A5: Power saving, good crushing effect, base attached to the pulley, move quickly,does not occupy a space volume is exquisite.
A6: Touch the design operation, easy to concentrate feed diameter can be quickly shattered feed.
Technical date:
| Model | PC-300 | PC-400 | PC-500 | PC-600 | PC-800 |
| Power | 5.5 | 7.5 | 11 | 15 | 22 |
| Rotation blade(pcs) | 9 | 12 | 15 | 18 | 24 |
| Fixed blade(pcs) | 2 | 2 | 2 | 4 | 2 |
| Screen size(mm) | 10 | 10 | 10 | 12 | 12 |
| Weight(kg) | 480 | 660 | 900 | 1400 | 1950 |
| Max.capacity(kgh) | 200-300 | 400-600 | 500-700 | 600-800 | 700-900 |
| Feeding mouth(mm) | 300*210 | 400*240 | 500*300 | 600*310 | 800*400 |
| Dimension(L*W*H) | 1100*800*1050 | 1300*900*1400 | 1450*1050*1500 | 1500*1250*1720 | 2000*1400*2100 |
