PVC Compounding Plastic Pellet Maker , Waste Plastic Recycling Pelletizing Machine

Hot die cutting waste plastic PVC compounding pelletizing machine

Application:

PVC pelletizing machine applied to granulate the recycled material of rigid PVC, soft PVC and waste PVC.

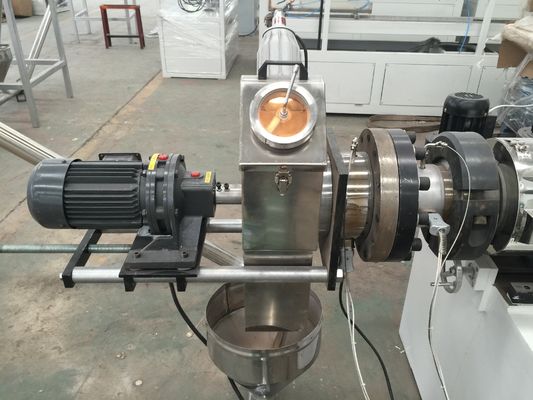

PVC pelletizing/granulating machine is composed by conical twin screw extruder, hot cutting system, air sending and drying device silo etc.

PVC pelletizing/granulating machine is used for PVC materials granulation machine, and has the features of novel design, compact structure, reasonable layout, stable, facilitating the maintenance and debugging, Low-noise, low-power consumption.

Function:
PVC pelletizing machine is mainly used in hot-cutting PVC and other plastic.
The pvc pelletizing machine is suitable for the pelletizing of pvc raw material with wood powder or other additives.

Process flow:

Raw material+ additive → Mixing → Conveying feeding → hopper feeding → Conical twin screw extruder → Hot face cutting → Cyclone separator → Vibration sieve → Blowing system → Storage hopper → Finished product packing

Advantage:

A1. precision is high. Hot-cutting efficiency is high. Installation and movementis convenient.
A2. this pvc granulating machine is composed by a conical twin screw extruder and the correspindingly pelletizing downstream equipment, it is suitable for the pelletizing of pvc raw material or add some additives, such as wooden power.
A3. the pellets produced by this machine is evenly, solid, elegace.
A4. the pelletizing downstream equipment is the die face cutter, air transferring unit, vibration screen and fan delivery system, this pelletizing auxuliary machine has the features of high automation and high production efficiency.
A5.The screw and barrel, made of 38CrMoAlA, and made through smithing, tempering, nitriding treatment.Different from other: screw edge is tempered after rough finish with good harder ability, and double aging reduce efficiently stree, Meanwhile, through accurate processing, phases of screw edges have small error, the barrel and screw have high universal property, the structure of screw is different based on the material.

Details specification picture:

Technical dates :

The services provided by our company are:
A1:Plant construction, renovation plan, pipeline laying plan in the plant, construction plan of circulating cooling pool, etc.;
A2:Provide procurement plans for raw materials, transformers, air compressors, etc.;
A3:Provide relevant formulas for relevant raw materials, suppliers of high quality raw materials, cost accounting of raw materials, etc.;
A4:Install equipment, commission equipment, train employees, and provide technical support throughout the year;
A5:Our company has a plastics industry engineering alliance nationwide, and can provide relevant talents to work in your company all year round as a technical backing.
