Product Details:
Payment & Shipping Terms:
|
| MOTOR: | SIEMENS | MOTOR POWDER: | 37KW |
|---|---|---|---|
| GEAR BOX: | De Ling | INVERTER: | ABB |
| TEMPERATURE CONTROLLER: | OMRON | Feeding: | Twin Screw Force Feeding |
| Highlight: | plastic extrusion equipment,plastic extruder |
||

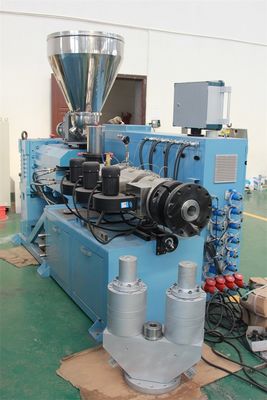

Plastic PVC twin screw extruder machine for make 50-200mm water pipe
Product description:
SJSZ series conical twin screw extruder especially used for extrusion PVC powder, it has advantages as good mixing, large output, working steady , long service life time etc. equipped with series mold and auxiliary machine,
it can produce various PVC pipes, profiles, sheets, plates, bars and it also can be used for pelletizing.
Features specifications:
1.SJSZ series conical twin- screw extruder have applied oil cooling system. Barrel is cooled by special wind cooling system.
2. SJSZ series conical twin- screw extruder system has applied special computer control. According to customers requirements, most reasonable structure of conical twin screw can be made so as to achieve best plasticity performance and material quality.
3. SJSZ series conical twin- screw is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.
4. The distribution gearbox is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged. It can bear larger extruding pressure.
5. The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1degree.
Main technical parameter
| Item | SJSZ-45 | SJSZ-51 | SJSZ-55 | SJSZ-65 | SJSZ-80 | SJSZ-92 |
| Diameter of screw (mm) | 45/90 | 51/105 | 55/113 | 65/132 | 80/156 | 92/188 |
| Number of screw | 2 | 2 | 2 | 2 | 2 | 2 |
| Direction of screws | Screw rotation direction | |||||
| Screw rotation speed (rpm) | 1-45 | 1-45 | 40 | 1-35 | 1-37 | 1-33 |
| Effective length of screw (mm) | 985 | 1070 | 1200 | 1440 | 1800 | 2500 |
| Power of main engine (kw) | 15 | 18.5 | 30 | 37 | 55 | 90 |
| Barrel heating power (kw) | 12 | 18 | 18 | 24 | 36 | 55 |
| Production capacity (kg/h) | 120 | 80-150 | 150-180 | 250-300 | 320-400 | 600-800 |
| Center height (mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1200 |
| Net weight (kg) | 2800 | 3200 | 3500 | 4000 | 5000 | 8000 |
After-Sales Service
* We arrange engineer to install the machinery and training the workers for client abroad if clients required.
* We have 24 hours team to solve problems after sales.
* We have free spare parts with the right machine during warranty time.
* We supply whole machine lifetime spare parts for every customer with low cost after warranty time.
* We always update the new technology to every customer.
Pre-Sales Service
* We given client the details technician offer.
* Professional advice for Inquiry and technical support.
* supply the details layout, installation instruction, technician support for the clients
* View our Factory,sales manager accompany.
* 24 hours English support.
