Window / Door Profile Extrusion Machine , Plastic Extruder PVC Raw Material

Window / Door Profile Extrusion Machine , Plastic Extruder PVC Raw Material
Window / Door Profile Extrusion Machine , Plastic Extruder PVC Raw Material Window / Door Profile Extrusion Machine , Plastic Extruder PVC Raw Material Window / Door Profile Extrusion Machine , Plastic Extruder PVC Raw Material Window / Door Profile Extrusion Machine , Plastic Extruder PVC Raw Material Window / Door Profile Extrusion Machine , Plastic Extruder PVC Raw Material

Large Image :  Window / Door Profile Extrusion Machine , Plastic Extruder PVC Raw Material

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: SJSZ65/132
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Plastic films with wood tray
Delivery Time: 40 DAYS
Payment Terms: L/C, T/T
Supply Ability: 100 SET PER YEAR
Detailed Product Description
PLC Brand: SIEMENS Feeding: Twin Screw Force Feeding
Screw Model: Doube Screw Weight: 3500kg
Application: Profile Condition: New
Plastic Processed: PVC,wood Powder Warranty: 1 Year
Raw Material: PVC
High Light:

plastic extrusion equipment

,

plastic extrusion line

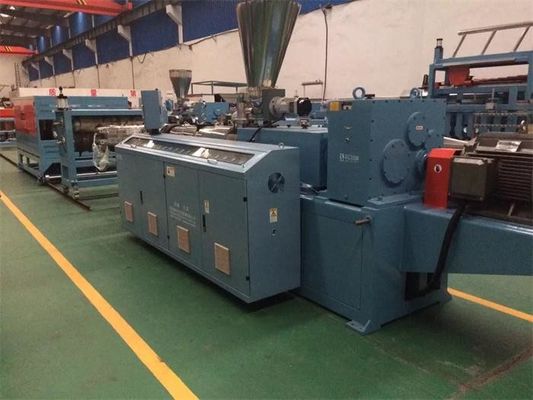

Conic PVC SJSZ65/132 twin screw extruder machine for make window and door profile



The auxiliary machine of the twin-screw extruder twin-screw extruder mainly includes a pay-off device, a straightening device, a preheating device, a cooling device, a traction device, a metering device, a spark testing machine, and a wire take-up device. The use of the extrusion unit is different for its optional auxiliary equipment, such as cutters, blowers, printing devices, etc.



1 Basic features



The remarkable feature of the split-type parallel-parallel twin-screw extruder is that the barrel can be split. At the same time, the screw and the inner liner of the barrel can be combined at will.



2 main advantages



1, wear and tear

Thanks to the easy opening, the threaded components and the inner bushings of the barrel can be found at any time for effective maintenance or replacement. It is not discovered when there is a problem with the extruded product, causing unnecessary waste.

2, reduce production costs

When making masterbatch, it is often necessary to change the color. If it is necessary to replace the product, open the open processing area in a few minutes, and also analyze the mixing process by observing the melt profile on the entire screw. At present, the conventional twin-screw extruder needs to use a large amount of cleaning materials to clean the machine when replacing the color, which is time consuming, expensive, and wastes raw materials. The split-type twin-screw extruder can solve this problem. When the color is changed, the barrel can be quickly opened and manually cleaned in a few minutes, so that the cleaning material can be used or not, which saves the cost.

3. Improve labor efficiency

In the maintenance of equipment, ordinary twin-screw extruders often have to first remove the heating and cooling system, and then withdraw the screw as a whole. The split-type twin-screw is not used. Just loosen a few bolts and turn the worm gear handle to raise the upper half of the barrel to open the entire barrel and then perform maintenance. This reduces maintenance time and labor intensity.

4, high torque, high speed

At present, the development trend of the twin-screw extruder in the world is to develop toward high torque, high speed and low energy consumption, and the effect brought by high speed is high productivity. The split-type twin-screw extruder belongs to this category and its speed can be increased by 500 rpm. Therefore, it has unique advantages in processing high viscosity and heat sensitive materials.

In the high-speed, high-torque core technology, the asymmetric and symmetrical high-torque gearboxes currently only have the core technology of German and Japanese manufacturers, and their high speed can reach more than 1800 rpm. Sichuan Zhongchuang Technology Co., Ltd. is currently one of the main choices for domestic high-end material processing companies, and it is a national independent innovation national encouragement project.

5, a wide range of applications

Wide range of applications, suitable for processing a variety of materials

6, high output, high quality

With the other advantages of a conventional twin-screw extruder, high throughput, high quality, and high efficiency can be achieved.



Main technical parameter:



Model SJSZ51 SJSZ65 SJSZ80 SJSZ92 SJSZ105
Screw DIA(mm) 51/105 65/132 80/156 92/188 105/216
Qty of screw 2 2 2 2 2
Screw direction Opposite and outer
Screw speed(rpm) 1-37 1-34.7 1-36.9 1-33 1-32
Screw length(mm) 1065 1440 1800 2500 3330
Structure Conical mesh
Main motor power(kw) 22 37 55 90 185
Total power(kw) 38 58 90 140 255
Output(max: kg/h) 135 250 450 800 1400
Qty of barrel heating zone 4 4 5 5 6
Feeder Screw dosing
Center height of machine(mm) 1000 1000 1000 1100 1300

Window / Door Profile Extrusion Machine , Plastic Extruder PVC Raw Material 0Window / Door Profile Extrusion Machine , Plastic Extruder PVC Raw Material 1Window / Door Profile Extrusion Machine , Plastic Extruder PVC Raw Material 2



FAQ

Q1: Are you a factory or trading company?
A: We are the manufacturer and we have 5 years factory experience .As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit to our factory.
Q2: How long is the delivery time?
A: For standard machines, it would be 7-10 working days; For non-standard machines and customized machines according to client s specific requirements, it would be 25 to 35 working days.
Q3: How should I pay for my order ? what is the procession of this purchase?
A:You can do 30% prepayment at first, then we will start to make production. When the machines are ready , we will take pictures and videos to you, and then you can do the balance.After we got your payment. We will send the machine to you.
Q4:How is the machine warranty and after-sale service?
A: All our machine would have a warranty of 12 months since the date of machine installation in client's factory. And beyond warranty period, we can offer spare parts or repair service with or without charges.
