Product Details:
Payment & Shipping Terms:
|
| MOTOR: | SIEMENS | MOTOR POWDER: | 37KW |
|---|---|---|---|
| GEAR BOX: | GUO MAO | INVERTER: | ABB |
| TEMPERATURE CONTROLLER: | OMRON | ||
| Highlight: | plastic extrusion line,plastic extruder |
||

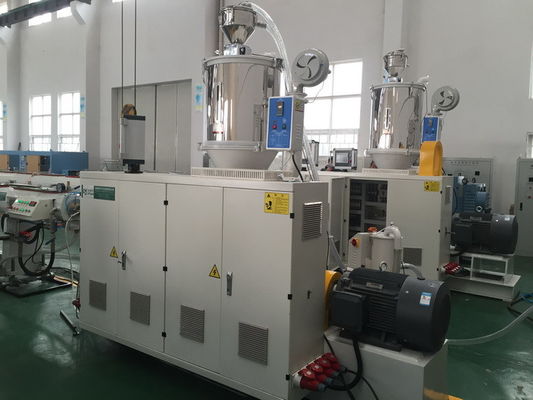

Plastic Single Screw Extruder Machine For Making PE PVC PP PPR ABS Product
Summary description:
SJ series single screw extruder is mainly used to process 3D Printer Product,PP, PE, PPR, PET,ABS, Nylon and other plastics. Equipped with auxiliary machines, it can manufacture profile, pipes, sheets ,film, granulates and other plastic products.
Product features:
1. SJ series single screw material using high quality alloy steel-38GrMoAlA, after high-temperature nitriding, nitriding depth: 0.5-07mm, the surface hardness HV740-940.
2. SJ series single screw barrel temperature control though two section, the cast aluminum ring heater provide the hot temperature while the cooling fan with the help of air control the temperature zone.
3. SJ series single screw extruder reduction box adopt the Germany technical which have long life span, low noise and lower hot.
4. SJ series single screw extruder temperature control system to ensure the stability of the producing process. Integrated design of force water cooling and force feeding groove ensures the evenness and stability of the manufacturing process.
5. High performance driving system, wearable and easy to maintain.
6. High efficiency single screw extruder have been endowed with innovative features which mainly focused on energy-saving, more accurate process control, and higher output.
Technical parameter
| Model | L/D | Output(kg/h) | Speed(r/min) | Drive power | Center height(MM) |
| SJ25 | 25/1 | 5 | 20-120 | 2.2 | 1000 |
| SJ30 | 25/1 | 10 | 20-180 | 5.5 | 1000 |
| SJ45 | 25-33/1 | 50-150 | 20-150 | 7.5-22 | 1000 |
| SJ65 | 25-33/1 | 60-250 | 20-150 | 22-90 | 1000 |
| SJ75 | 25-33/1 | 200-350 | 20-150 | 55-110 | 1100 |
| SJ90 | 25-33/1 | 280-550 | 20-110 | 37-185 | 1000-1100 |
| SJ120 | 25-33/1 | 320-880 | 20-90 | 75-280 | 1000-1250 |
| SJ150 | 25-33/1 | 400-1200 | 20-75 | 90-355 | 1000-1300 |
FAQ
Q1: Are you a factory or trading company?
A: We are the manufacturer and we have 15 years factory experience .As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit to our factory.
Q2: How long is the delivery time?
A: For standard machines, it would be 7-10 working days; For non-standard machines and customized machines according to client s specific requirements, it would be 25 to 35 working days.
Q3: How should I pay for my order ? what is the procession of this purchase?
A:You can do 30% prepayment at first, then we will start to make production. When the machines are ready , we will take pictures and videos to you, and then you can do the balance.After we got your payment. We will send the machine to you.
Q4:How is the machine warranty and after-sale service?
A: All our machine would have a warranty of 12 months since the date of machine installation in client's factory. And beyond warranty period, we can offer spare parts or repair service with or without charges.
