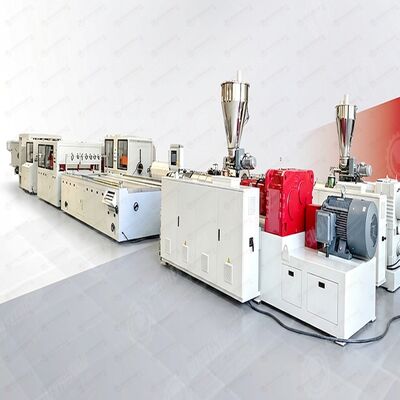

Conical Twin Screw PVC Profile Extrusion Machine with Adjustable Molds and High Production Capacity

Large Image : Conical Twin Screw PVC Profile Extrusion Machine with Adjustable Molds and High Production Capacity

Product Details:

Place of Origin:	CHINA
Brand Name:	BEISU
Certification:	CE
Model Number:	SJSZ50; SJSZ65 ; SJSZ80; SJSZ92

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD45000
Packaging Details:	Wood pallet and film cover
Delivery Time:	35 working days
Payment Terms:	T/T,L/C
Supply Ability:	10 sets per month

Contact Now

Detailed Product Description

Screw Diameter:	80/156 Mm	Quantity Of Screw:	2
Max Rotation Speed:	37 R/min	Effective Length:	1800 Mm
Main Motor Power:	55 Kw	Production Capacity:	400 Kg/h
Highlight:	Conical Twin Screw PVC Profile Extrusion Machine , Adjustable Molds Plastic Profile Extruder , High Production Capacity Twin Extruder PVC Machine

Product description

BEISU Machinery could supply complete set UPVC PVC profile extrusion machines for producing UPVC PVC Window profile, door frame, PVC wall panel, door panel PVC hollow board & 700-1000mm PVC WPC door board, windowsill, fence, ceiling, gutter, etc, as well as wood plastic composite ( WPC) decking profile production lines.

To produce PVC profile, you shall have high speed mixer to mix PVC powder, CACO3 and other additives according to your formula. Then feed the mixture to the conical twin screw extruder for the production. The mixed material will be extruded through different molds to produce different shape profiles. Then it will be calibrated to keep the shape by vacuum calibration tank, then haul off and cutting. You could cut different length as you want, 4 meter, 6 meter, etc.

Plastic profile extrusion machine application

The Plastic Profile Extrusion Machine can produce a wide range of plastic profile products, including:

Building materials like PVC window frames, door frames, wall corners, floors, ceilings, partition boards, etc.
Packaging materials such as PE/PP pipes, sheets, films, nets, containers, buckets, boxes, etc.
Consumer goods like ABS/PS/LDPE car interiors, household appliance shells, toys, stationery, shoe materials, mats, etc.
PVC/PE drainage pipes, cables conduits, and other pipeline materials.
PVC/PE irrigation pipes, sewage pipes, and other agricultural and environmental protection materials.

Since the plastic profile extrusion machine has adjustable molds and extruders, it can customize various shapes of plastic profile products according to customer requirements, which is relatively flexible.

Extruder type

Model	SJZ51/105	SJZ55/100	SJZ65/132	SJZ80/156	SJZ92/188
Screw diameter(mm)	51/105	55/100	65/132	80/156	92/188
Quantity of screw	2	2	2	2	2
Max. rotation speed of screw(r/min)	40	38	38	37	36
Effective length of screw(mm)	1200	1200	1440	1800	2500
Main motor power(kw)	18.5	22	37	55	110
Productuion capacity(kg/h)	100	150	250	400	750
Center height(mm)	1000	1000	1000	1100	1200

Equipment list of Profile Extrusion Making Machine

Compulsory devices
1	Material charge	1 set
2	Single/Conical twin screw extruder/	1 set
3	Extrusion die head	16-400m
4	calibrating and cooling table	1 set or several sets
5	caterpillars hauling off machine	1 set
6	Saw cutting machine	1 set

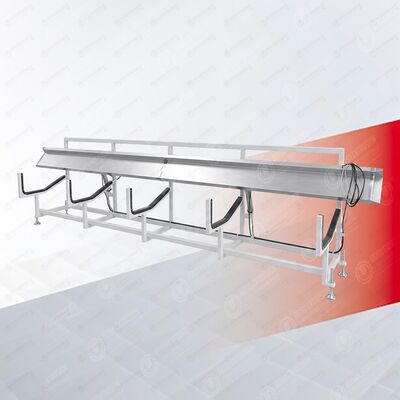

7	stacker-6000mm length or colier	1 set
8	Electrical cabinet(Omron, RKC etc)	1 set
9	Spare parts	1 set
Optional Devices
1	High speed hot and cold mixer	1 set
2	Crusher	1 set
3	Industrial water chiller	1 set
4	Air compressor	1 set
5	Thermocontroller for die head	1 set

Machine details

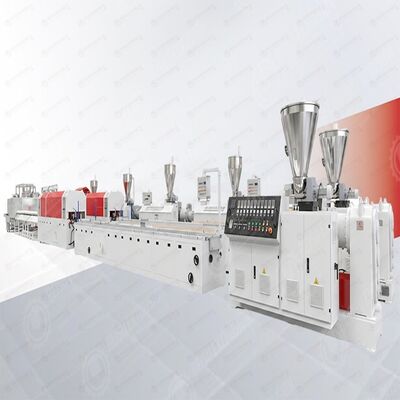

Conical Twin Screw PVC Profile Extrusion Machine with Adjustable Molds and High Production Capacity

Machine features

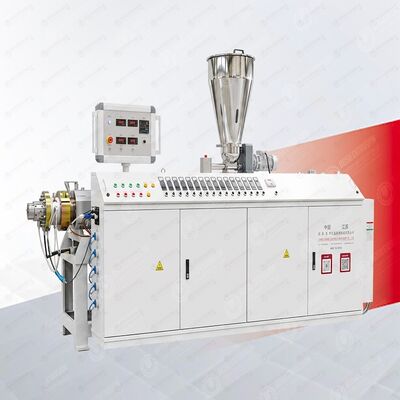

A1·Conical Twin Screw Extruder
The screws are specifically designed and manufactured for the processing of dry pvc powder blend. Our conical twin screw extruder design cater to the raw materials feature ensuring homogeneous mixture, better plastification and conveying efficiency. The permanent magnet synchronous motor provide high energy efficiency for the extruder. Equipped with PLC control system, it realized controlling the whole production line in the one site.

A2·Plate Mould
We offer double Strand mould for the PVC trunking production line. By this way, the productivity will be highly improved. The optimized channel design ensures high flow performance. The advanced plate mould produced the profile with high precision.

A3·Calibration table
The calibration table has stable steel frame and the whole body material is SUS 304 stainless steel. We have multi-dimension position adjustment system. With precious layout of water pumps and vacuum calibrator, the PVC profile will be rapidly shaping and cooling. Enough length of the calibration table ensures the shaping of the PVC profile

A4·Haul-off & Cutter Combination
The force distribution along each pillars has sufficient hauling force. We offer good-quality rubber for the haul-off machine. The pneumatic pressure is conducive to the easy adjustment and product protection. Two kinds of cutting way including swarfless and saw cutting are available for customization.

Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.

Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.

Q: What is the lead time?
For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .

Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer's needs.

Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's the advantage of BEISU?
We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
