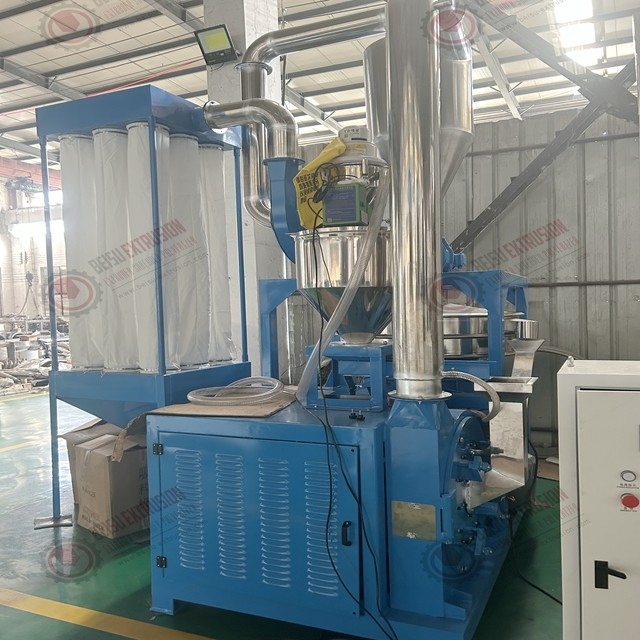

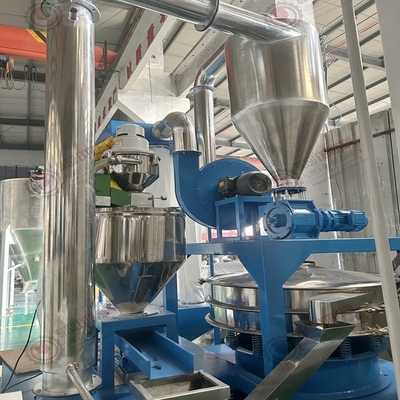

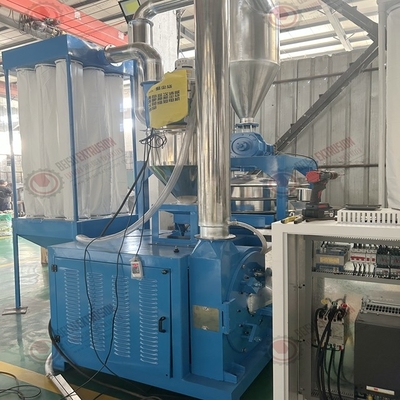

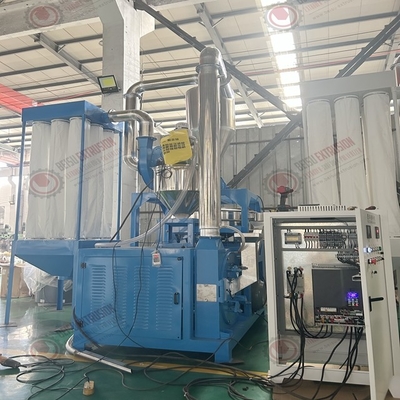

SMF-800 Disc Blade Plastic Pulveriser Machine Ldpe Pulverizing Grinding Mill Equipment
Product Details
Disc Blade plastic pulveriser machine
,Ldpe plastic pulveriser machine
,Grinding Mill plastic pulveriser machine
The new MF series PE pulverizers belong to the family of disc pulverizers with disc diameters from 350 mm to 800 mm. The pulverizers are high-speed, precision grinders for processing medium-hard, impact-resistant and brittle materials such as PE, PVC, PP, ABS, PA, EVA, PET, PS, PPS, EPS, PC, foam, cowhide, etc.
MF series plastic grinding mill is mainly used for high quality powder (free-flowing powder with high bulk density) for roto-molding applications. Relative to output and energy consumption, MF series is the most economical air-cooled grinding mill. Small footprint (compact size) makes it an ideal choice for producers or processors.
One of the main areas of use of MF series plastic grinding mill is PE pulverization for roto-molding applications. In this process, a screening machine is needed to ensure the correct output size.
Features of plastic grinding mill:
1-Compact, space-saving design
2-Low energy consumption, high output
3-Adjust the grinding disc gap from the outside
4-The machine keeps the grinding disc balanced by a handle
5-Easy replacement of grinding knives
6-The main bearing has a water cooling system
7-The main grinding chamber, which is specially designed for various materials, and the grinding knife material is special steel.
8-The machine has a fan and an air fan working together.
9-Vibrating screen machine to make the powder uniform.
10-All pipeline materials: stainless steel
11-Hopper: store materials and keep the workshop and machine clean.
Technical datas of Plastic LDPE grinding mill:
|
Model |
MF-500 |
MF-600 |
MF-800 |
|
Milling chamber |
φ500 |
φ600 |
φ800 |
|
Rotary Blades |
24 PCS |
28 PCS |
36 PCS |
|
Main Speed(RPM) |
3900 |
3900 |
3900 |
|
Main motor |
37KW |
45KW |
75KW |
|
Final powder size |
12-120 micron |
12-120 micron |
12-120 micron |
|
Capacity |
150-230kg/hr |
200-350kg/hr |
400-600kg/hr |
|
Machine Weight |
1500kgs |
1600kgs |
1800kgs |
|
Dimension(mm) |
4200*1450*2900 |
4500*1450*3600 |
4800x1800x4000 |
• For the loose cargo we will packing by wooden box.
• For the full container loading we are packing the machine by film and some on pallet accordingly.
• We can ship the goods by air or by sea.
• We will send pictures of cargo loading to our client to check and keep recording.
• We can send cargo to client's warehouse to loading.
• Pre-sale: we give our client the detailed technician offer, sign the sales contract etc.
• In-sales: we supply the details layout, installation instruction, and technician support for the clients.
• After sales: we arrange engineer to install the machine and train the workers for our client.
• We have 24 hours service line to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
• We always update the new technology to every customer.
-
