Product Details:
Payment & Shipping Terms:
|
| Model NO.: | BS-65/132-80/156-92/188 | Screw: | Twin(double)-screw |
|---|---|---|---|
| Suitable Material: | UPVC/CPVC/PVC Powder | Output Pipe Size: | 50~250mm |
| Barrel & Screw Material: | Bimetallic Barrel & Screw | Gearbox: | Vertical Type Sew/Falk Brand |
| Motor Brand: | Siemens, Weg, Sew | Inverter: | ABB/Schneider/Siemens |
| Highlight: | 250mm PVC Pipe Production Line,Highly Productive PVC Pipe Production Line,50mm PVC Pipe Production Machine Line |
||
Product Application for Dual Plastic PVC pipe production line:
Introduction:
A1 .The full electrical pvc pipe production machine include one double screw extruder SJZ55 or SJZ65, Mould based on pipe diameter, Vacuum Tank, Haul-off& cutter, Stacker.
A2. On this pvc water waste pipe making machine you want to produce CPVC pipe, you can add one system called die core temperature adjust system, and must be with water cooling, as CPVC has special chemical character than UPVC;
A3. For electrical pvc pipe production machine, the capacity can be 150kg/h, 200kg/h, 300kg/h and 500kg/h, you can choose them based on your needs, then we will suggest the satisfied extruder and auxiliary machines; You can check different capacity of extruder from below form:
A4.Used for Water Supply Pipe&Drainage pipe&Sewage Pipe
PVC Pipe processing flow:

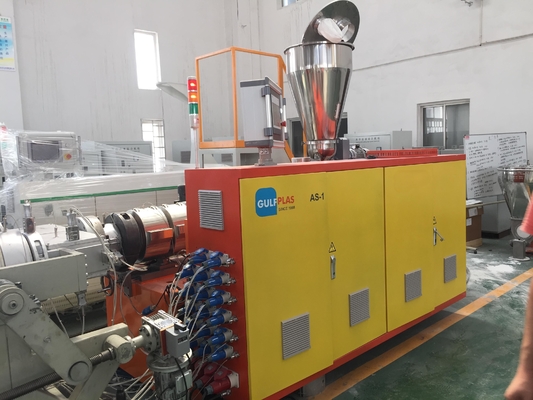

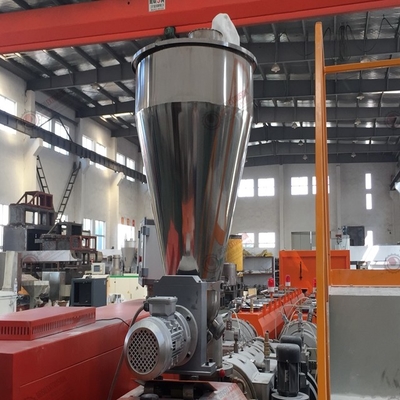

Raw Material &additive → Heating Cooling Mixer →Material Feeding → Forced feeding → Conical Double Screw Extruder →Extruder Mould &Calibrator → Vacuum Calibration Cooling Tank → (Spray Cooling Tank) → Ink Printer → Double belt Haul-off → Double uplift Cutter → Double pipe Stacker
Advantages for Plastic PVC pipe line:
A1. Specified screw design for better material plasticizing &mixing effect, For high filling formula, bimetallic screw and barrel can guarantee perfect solution;

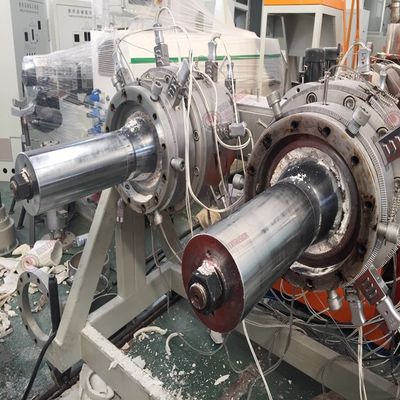

A2. Spider type die head can reduce joint line of the melt material, with reasonable compression ratio design;

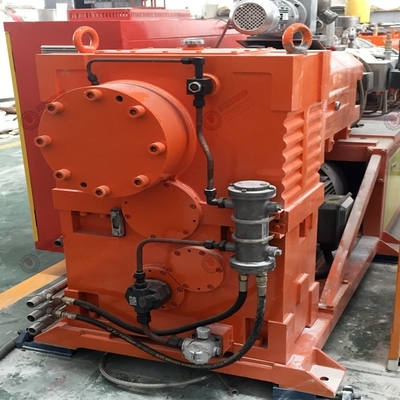

A3. Vertical integrated structured gear box with adopts NSK/SKF bearings guarantee stable operation and long uselife;

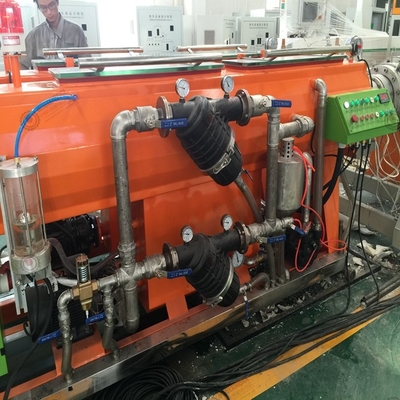

A4. Vacuum calibration tank adopts high-efficiency two chamber and large length design, providing faster calibration and more efficient cooling;

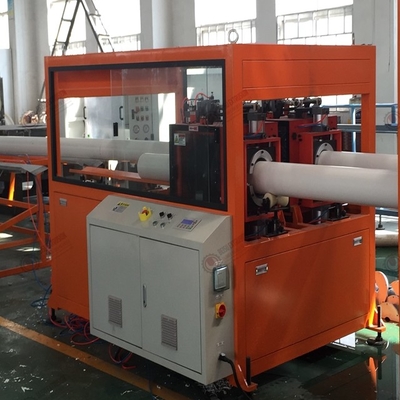

A5. Planetary cutter adopts hydraulic feeding of blade which providing perfect chamfering processing and cutting surface;
A6. U type, R type and Air blow type socket can be provided according to applications;

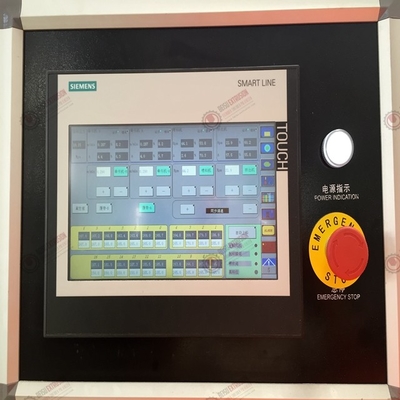

A7. Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently.
Main Model of PVC pipe machine:
| Machine model |
Pipe diameter |
Vacuum Calibration Tank | Spray Cooling Tank | Haul-off unit | cutter | |||||
| Vacuum pump | Water pump |
Length(mm) | Water pump |
Length(mm) | caterpillar Quantity | Motor | Motor | Cutting type | ||
| PVC63*2 | φ16mm-φ63mm | 3kw*2 | 3kw*2 | 5000mm | / | / | 2 | 1.5kw*4 | 1.1kw*2 | Guillotine cutter |
| PVC-110 | Φ40mm-φ110mm | 4kw*1 | 4kw*2 | 6000mm | / | / | 2 | 3kw | 2.2kw*1 | Guillotine cutter |
| PVC-160 | Φ50mm-φ110mm | 5.5kw*1 | 4kw*2 | 6000mm | / | / | 3 | 1.1*3 | 1.5kw*1 | Planetary cutter |
| PVC-250 | Φ75mm-φ250mm | 5.5kw*1 | 5.5kw*2 | 6000mm | / | / | 3 | 1.1kw*3 | 2.2kw*1 | Planetary cutter |
| PVC-315 | Φ110mm-φ315mm | 5.5kw*1 | 5.5kw*2 | 6000mm | / | / | 4 | 1.1kw*4 | 2.2kw*1 | Planetary cutter |
| PVC-400 | Φ160mm-φ400mm | 5.5kw*2 | 5.5kw*2 | 6000mm | 5.5kw*1 | 6000mm | 4 | 1.1kw*4 | 2.2kw*1 | Planetary cutter |
| PVC-630 | Φ315mm-φ630mm | 7.5kw*2 | 7.5kw*2 | 6000mm | 7.5kw*1 | 6000mm | 6 | 1.1kw*6 | 3kw*1 | Planetary cutter |
| PVC-800 | Φ500mm-φ800mm | 11kw*2 | 7.5kw*2 | 6000mm | 7.5kw*1 | 6000mm | 8 | 1.1kw*8 | 3kw*1 | Planetary cutter |
1. Before shipment testing at factory, vedio record.
2. Vedio instruction for operation.
3. User manual and installation instruction, layout and drawings.
4. Lable&marks for disassemble parts, wiring&cables.
1.Reliable
Most popular design with years' verification.
Mature supply chain for raw materials with strict quality assurance.
International famous brands of key parts i.e. ABB invertor, Siemens electronics, Siemens motor, Mettler Toledo scale etc.
2. Economy
BEISU Stable technology commercialized in China.
High efficiency mixing performance.
Cost effective solutions.
Real time communication SNS group chat(WeChat preferred, Skype/WhatsApp) which includes buyer side and BEISU service team is created for technical assistance in the quickest manner. Scheduled video calls are also available. Just as the company vision 'Customer Oriented' says,BEISU always stands at customer's point to offer the optimum solution and help customer to maximize profit. BEISU has its own customer management system and spare parts management system which ensure quickest responds and enough regular easy-wearing parts whenever customer requests.
