50 - 200mm Pipe Plastic Extrusion Machine SJSZ65 / 132

50 - 200mm Pipe Plastic Extrusion Machine SJSZ65 / 132
50 - 200mm Pipe Plastic Extrusion Machine SJSZ65 / 132 50 - 200mm Pipe Plastic Extrusion Machine SJSZ65 / 132 50 - 200mm Pipe Plastic Extrusion Machine SJSZ65 / 132 50 - 200mm Pipe Plastic Extrusion Machine SJSZ65 / 132 50 - 200mm Pipe Plastic Extrusion Machine SJSZ65 / 132

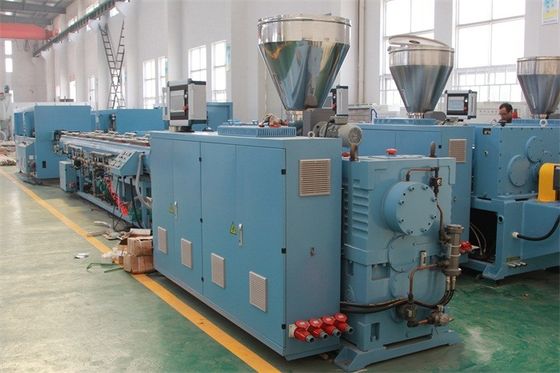

Large Image :  50 - 200mm Pipe Plastic Extrusion Machine SJSZ65 / 132

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: SJSZ65/132
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Plastic films with wood tray
Delivery Time: 40 DAYS
Payment Terms: L/C, T/T
Supply Ability: 100 SET PER YEAR
Detailed Product Description
PLC Brand: SIEMENS MOTOR Brand: Domestic Brand
GEAR BOX: Jiangyin De Ling INVERTER: ABB
TEMPERATURE CONTROLLER: OMRON Feeding: Twin Screw Force Feeding
Screw Model: `Doube Screw Voltage: 380V,380V 50HZ 3Phase(Customized)
Weight: 3500kg
High Light:

plastic extrusion equipment

,

plastic extrusion line

Conic PVC SJSZ65/132 twin screw extruder machine for make 50-200mm pipe



50 - 200mm Pipe Plastic Extrusion Machine SJSZ65 / 132 0



Product description:



SJSZ series conical twin screw extruder is a highly efficient agglomerating and extruding equipment. Machines of this series feature low shearing rate, uneasy degradation, even plasticization and agglomeration, reliable quality and long servicing life.

Using PVC powder as raw material for a direct forming, the extruders perform an excellent effectiveness. These machines have automatic temperature control, vacuum gas exhaustion, oil cooled screws, stepless speed regulation, as well as a forced feeding and self-cleaning mechanism.



Machines of this series have wide application. With appropriate extruding heads, screws and other auxiliaries, they are able to directly convert plastics into pipes, plates, bars, films, hollow cross-section products.



Features specifications:



  • According to customer's requirements, most reasonable screw can be made so as to achieve best plasticity state and material quality.
  • The screw is made by high precision special digital screw miller, extruding property can be highly harmonized.
  • It has firstly introduced advanced technique of producing screws with variable pitch and depth, so that the material can be more softly sheared and cut.
  • The distribution box is specially designed, pull force bearing is fully imported, the drive life span can be prolonged. It can bear larger extruding pressure.
  • The electrical system has mainly applied imported parts, it has multiple alarm system, there are few problems which can be easily eliminated.
  • The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, temperature control tolerance can be ±1℃.





Main technical parameter:



Model SJSZ51 SJSZ65 SJSZ80 SJSZ92 SJSZ105
Screw DIA(mm) 51/105 65/132 80/156 92/188 105/216
Qty of screw 2 2 2 2 2
Screw direction Opposite and outer
Screw speed(rpm) 1-37 1-34.7 1-36.9 1-33 1-32
Screw length(mm) 1065 1440 1800 2500 3330
Structure Conical mesh
Main motor power(kw) 22 37 55 90 185
Total power(kw) 38 58 90 140 255
Output(max: kg/h) 135 250 450 800 1400
Qty of barrel heating zone 4 4 5 5 6
Feeder Screw dosing
Center height of machine(mm) 1000 1000 1000 1100 1300

50 - 200mm Pipe Plastic Extrusion Machine SJSZ65 / 132 150 - 200mm Pipe Plastic Extrusion Machine SJSZ65 / 132 250 - 200mm Pipe Plastic Extrusion Machine SJSZ65 / 132 3



After-Sales Service

* We arrange engineer to install the machinery and training the workers for client abroad if clients required.
* We have 24 hours team to solve problems after sales.
* We have free spare parts with the right machine during warranty time.
* We supply whole machine lifetime spare parts for every customer with low cost after warranty time.
* We always update the new technology to every customer.



Pre-Sales Service

* We given client the details technician offer.
* Professional advice for Inquiry and technical support.
* supply the details layout, installation instruction, technician support for the clients
* View our Factory,sales manager accompany.
* 24 hours English support.
