Single Screw Extruder Pvc Profile Manufacturing Machine Eco Friendly For Window Seal

Single Screw Extruder Pvc Profile Manufacturing Machine Eco Friendly For Window Seal
Single Screw Extruder Pvc Profile Manufacturing Machine Eco Friendly For Window Seal Single Screw Extruder Pvc Profile Manufacturing Machine Eco Friendly For Window Seal

Large Image :  Single Screw Extruder Pvc Profile Manufacturing Machine Eco Friendly For Window Seal

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: BS-SJ45
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film packing and pallet fix the machine bottom
Delivery Time: 40 working days
Payment Terms: L/C, D/P, T/T
Supply Ability: 10 Set per month
Detailed Product Description
Material: PVC Pellet Products: PVC Seal
Voltage: 380V 50HZ 3Phase(Customized) Warranty: 12 Months
After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

pvc profile production line

,

pvc profile extrusion line

Single screw extruder soft PVC profile production line for window seal



Features specifications:



PVC trunking, that is, PVC trunking (PVC = Polyvinylchlorid, polyvinyl chloride, a synthetic material), generally known as line trunking, wiring harness, wire trough, etc. PVC trunking is a kind of trunking. There are various types of trunking. Depending on the material, the trunking is divided into various types according to the wiring equipment industry. The commonly used environmentally friendly flame-retardant PVC trunking and halogen-free PPO Wire troughs, halogen-free PC/ABS trunking, metal wire troughs such as steel and aluminum, etc.

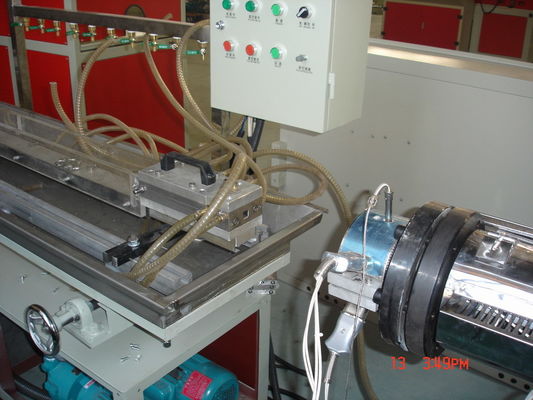

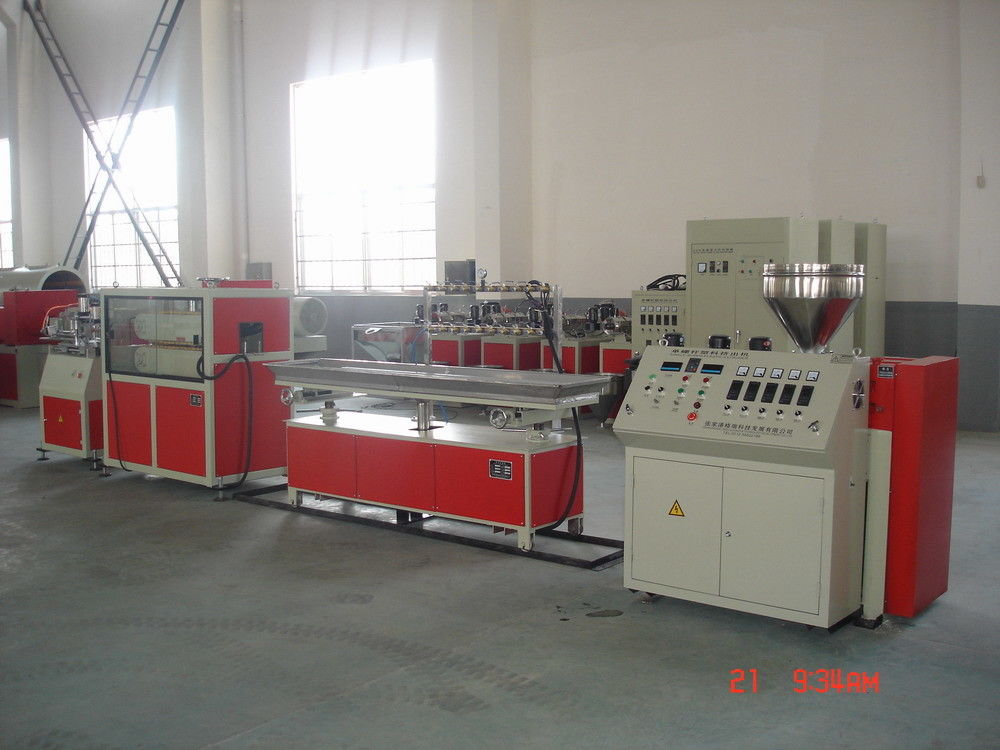

Details specification pictures of PVC ceiling panel production line:



Single Screw Extruder Pvc Profile Manufacturing Machine Eco Friendly For Window Seal 0Single Screw Extruder Pvc Profile Manufacturing Machine Eco Friendly For Window Seal 1Single Screw Extruder Pvc Profile Manufacturing Machine Eco Friendly For Window Seal 2Single Screw Extruder Pvc Profile Manufacturing Machine Eco Friendly For Window Seal 3



Main technical parameter:



Model Heating zones Cooling bath length Output(K/h)
SJ50 6 4 15-55
SJ65 6 4 20-65
SJ75 7 5 60-160
SJ90 7 5 70-180



Use and maintenance:


Plastic profile extrusion die is the core part of extrusion production. The technical state of plastic profile extrusion die is directly related to the stability of extrusion production, the quality of extrusion products, the efficiency of extrusion production and the service life of the die itself. Therefore, the correct use and maintenance of plastic profile extrusion dies is very important.
1. Unpacking inspection of plastic profile extrusion die after arrival
Unpacking inspection, the packaging is intact: After unpacking, take out the packing list, the instruction manual and other technical documents, and build the parts, accessories and special tools according to the contents of the packing list.
2. Half technical requirements and status of plastic profile extrusion dies
>> Plastic profile extrusion die, especially when the extruded material is modified polyvinyl chloride, the molded parts are generally made of corrosion-resistant materials such as stainless steel, and tempered to HRC24 or above to ensure a certain service life.
>> The working surface of the die, the shaping die and its parts should be smooth, and there should be no defects such as bumps, scratches, burrs, attachments and rust.
>> The die runner system should be gentle along the direction of the melt flow, avoiding sudden changes in the cross section and the stagnant zone.
>> There should be reliable positioning between the templates. The repetitive error of the corresponding position between the templates is not more than 0.03mm. The joint surfaces of the plastic extrusion die and the splicing splicing should be in close contact with each other. Must not be greater than 0.02mm.
>> The cooling system and vacuum system of the fixed mold should be smooth and not leaking. Under normal circumstances, the water and gas systems should not collude with each other. The water pipe joint of the plastic profile extrusion die sizing die, the vacuum pipe joint shall have obvious signs and shall not affect the connection of the pipeline.
>> Plastic profile extrusion die setting die should be flexible and flexible, and the sections in the fixed die and water tank should ensure a certain degree of coaxiality.
