GF180 Twin Screw Extruder Plastic Profile Production Line 380V 50Hz Voltage

GF180 Twin Screw Extruder Plastic Profile Production Line 380V 50Hz Voltage
GF180 Twin Screw Extruder Plastic Profile Production Line 380V 50Hz Voltage GF180 Twin Screw Extruder Plastic Profile Production Line 380V 50Hz Voltage GF180 Twin Screw Extruder Plastic Profile Production Line 380V 50Hz Voltage GF180 Twin Screw Extruder Plastic Profile Production Line 380V 50Hz Voltage

Large Image :  GF180 Twin Screw Extruder Plastic Profile Production Line 380V 50Hz Voltage

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: BS-SJSZ51
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film packing and pallet fix the machine bottom
Delivery Time: 45 working days
Payment Terms: L/C, D/P, T/T
Supply Ability: 10 Set per month
Detailed Product Description
Material: PVC Pellet Products: PVC Trunking
Voltage: 380V 50HZ 3Phase(Customized) Warranty: 12 Months
After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

pvc profile manufacturing machine

,

pvc profile extrusion line

GF180 Twin screw extruder hard PVC profile production line for electric trunking



Layout:



PVC Raw material+additive→Mixing Unit→Auto Feeder→Conical Twin-screw Extruder→-Moulds→Vacuum Calibration Tank→Haul-off&Cutting Machine→Stacker



GF180 Twin Screw Extruder Plastic Profile Production Line 380V 50Hz Voltage 0

Features specifications:

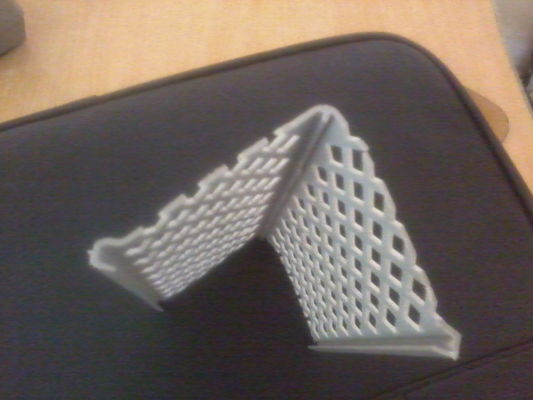

PVC trunking, that is, PVC trunking (PVC = Polyvinylchlorid, polyvinyl chloride, a synthetic material), generally known as line trunking, wiring harness, wire trough, etc. PVC trunking is a kind of trunking. There are various types of trunking. Depending on the material, the trunking is divided into various types according to the wiring equipment industry. The commonly used environmentally friendly flame-retardant PVC trunking and halogen-free PPO Wire troughs, halogen-free PC/ABS trunking, metal wire troughs such as steel and aluminum, etc.



Details specification pictures of PVC ceiling panel production line:

GF180 Twin Screw Extruder Plastic Profile Production Line 380V 50Hz Voltage 1

GF180 Twin Screw Extruder Plastic Profile Production Line 380V 50Hz Voltage 2

GF180 Twin Screw Extruder Plastic Profile Production Line 380V 50Hz Voltage 3

GF180 Twin Screw Extruder Plastic Profile Production Line 380V 50Hz Voltage 4



Main technical parameter:





Model SJSZ45/90 SJSZ51/105 SJSZ55/110 SJSZ65/132 SJSZ80/156
Screw Diameter(mm) 45/90 51/105 55/110 65/132 80/156
Screw Speed(rpm) 1-45.5 1-30 1-38 1-30 1-36.9
Motor Power(kw) 15/11.5 22/18 22/18 37/24 55/36
Output(kg/h) 40-70 60-100 70-150 80-250 250-400
Net weight(kg) 3000 3500 3800 4000 5000
Max Width(mm) 180 240 400 600 800
Drawing Height(mm) 140 140 140 140 140
Drawing Force(fn) 15 30 30 40 50
Drawing Speed(m/s) 0.5-5 0.5-5 0.5-5 0.5-5 0.5-5
Auxiliaries Total Power(kw) 18.7 31.6 31.6 31.6 31.6
Outline Dimension(mm) 3360*1290*2127 3620*1050*2157 3620*3500*2157 4235*1520*2450 4750*1550*2460



Use and maintenance:


Plastic profile extrusion die is the core part of extrusion production. The technical state of plastic profile extrusion die is directly related to the stability of extrusion production, the quality of extrusion products, the efficiency of extrusion production and the service life of the die itself. Therefore, the correct use and maintenance of plastic profile extrusion dies is very important.
1. Unpacking inspection of plastic profile extrusion die after arrival
Unpacking inspection, the packaging is intact: After unpacking, take out the packing list, the instruction manual and other technical documents, and build the parts, accessories and special tools according to the contents of the packing list.
2. Half technical requirements and status of plastic profile extrusion dies
>> Plastic profile extrusion die, especially when the extruded material is modified polyvinyl chloride, the molded parts are generally made of corrosion-resistant materials such as stainless steel, and tempered to HRC24 or above to ensure a certain service life.
>> The working surface of the die, the shaping die and its parts should be smooth, and there should be no defects such as bumps, scratches, burrs, attachments and rust.
>> The die runner system should be gentle along the direction of the melt flow, avoiding sudden changes in the cross section and the stagnant zone.
>> There should be reliable positioning between the templates. The repetitive error of the corresponding position between the templates is not more than 0.03mm. The joint surfaces of the plastic extrusion die and the splicing splicing should be in close contact with each other. Must not be greater than 0.02mm.
>> The cooling system and vacuum system of the fixed mold should be smooth and not leaking. Under normal circumstances, the water and gas systems should not collude with each other. The water pipe joint of the plastic profile extrusion die sizing die, the vacuum pipe joint shall have obvious signs and shall not affect the connection of the pipeline.
>> Plastic profile extrusion die setting die should be flexible and flexible, and the sections in the fixed die and water tank should ensure a certain degree of coaxiality.
