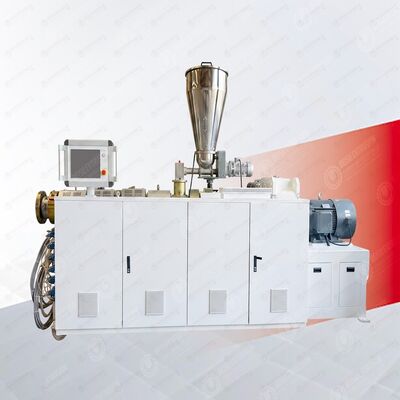

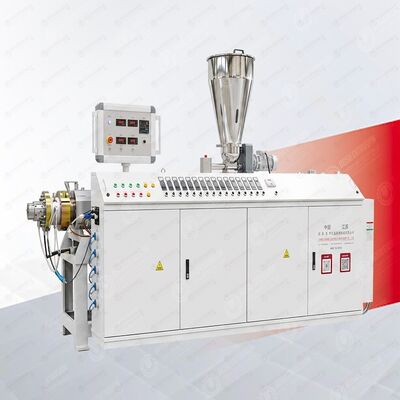

Twin Screw Extruder with Frequency Conversion Timing Hard-toothed Gearbox and Vacuum Degassing for PVC SPC WPC Processing

Twin Screw Extruder with Frequency Conversion Timing Hard-toothed Gearbox and Vacuum Degassing for PVC SPC WPC Processing
Twin Screw Extruder with Frequency Conversion Timing Hard-toothed Gearbox and Vacuum Degassing for PVC SPC WPC Processing Twin Screw Extruder with Frequency Conversion Timing Hard-toothed Gearbox and Vacuum Degassing for PVC SPC WPC Processing

Large Image :  Twin Screw Extruder with Frequency Conversion Timing Hard-toothed Gearbox and Vacuum Degassing for PVC SPC WPC Processing

Product Details:
Place of Origin: CHINA
Brand Name: BEISU
Certification: CE
Model Number: SJSZ-80/156 ; SJSZ92/188 ;SJSZ65/132
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD14000
Packaging Details: Wood pallet and film cover
Delivery Time: 35 working days
Payment Terms: L/C,T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Screw Diameter: 45/90, 51/105, 65/132, 80/156, 92/188 Main Motor Power: 15kw, 18.5kw, 37kw, 55kw, 90kw
Barrel Heating Power: 9.6kw, 11.5kw, 24kw, 36kw, 88kw Production Capacity: 60kg/h, 100kg/h, 250kg/h, 350kg/h, 700kg/h
Net Weight: 2500kg, 3000kg, 4000kg, 5000kg, 5500kg Screw Material: 38CrMoAlA
Vacuum Pump Power: 1.5Kw Feeding Motor Power: 0.55/0.75/1.1/1.5/2.2Kw
Heating Coil Material: Cast-aluminum Barrel Cooling: Fan Cooling
Highlight:

Frequency Conversion Timing Twin Screw Extruder

,

Hard-toothed Gearbox Plastic Extrusion Machine

,

Vacuum Degassing PVC Extruder

Plastic Extrusion PVC SPC WPC Twin Screw Extruder
Application

Our twin screw extruders are primarily used for processing soft/hard PVC pipe, PVC foaming board, PVC sheet, PVC profile, PVC trunk, PVC roof tile, PVC pelletizing, and other polyolefin products. They are especially designed for direct processing of plastic/powder materials.

Key Features
  • Frequency conversion timing
  • Hard-toothed gearbox
  • Screw and barrel material: 38CrMoAlA with nitrogen treatment, specially designed for rigid PVC profile
  • Screw frequency conversion timing with power options: 22Kw, 37Kw, 55Kw, 75Kw, 90Kw, 110Kw (ABB inverter or customized)
  • Cast-aluminum heating coil with barrel fan cooling
  • Vacuum degassing design with 1.5Kw vacuum pump
  • Fixed quantity feeding device with motor options: 0.55/0.75/1.1/1.5/2.2Kw and ABB inverter
  • Stainless hopper with side glass and cover
  • Concourse chip (chrome plated interior) with pressure sensor device
  • Electric control cabinet with WNM contactor, RKC temperature controller, Fuji inverter, and digital current/voltage meters
Our Advantages
  • Good performance and long usage life
  • Excellent production stability and reasonable design
  • High precision mold and AC frequency conversion technology
  • Uses imported electric components
  • Product characteristics: Good foam, smooth surface, antibacterial, wearable, antistatic, insulated
  • Widely used for agriculture and industry
  • Large marketing potential
Technical Highlights
  • A1: Meticulously developed screw components with optimized machine layout and three-phase heating system configuration
  • A2: Material-tailored screw design for high-efficiency, high-speed operation producing glossy, well-formed pellets
  • A3: Scientifically sound design with substantially increased output and excellent cost-performance value
  • A4: High output with low energy consumption, high-torque gearbox, and precision-machined screw eliminating dead zones
  • A5: High-quality electrical and drive components ensuring safe and reliable operation
Product Parameters
Specification/Model SJSZ45/90 SJSZ51/105 SJSZ65/132 SJSZ80/156 SJSZ92/188
Screw diameter 45/90 51/105 65/132 80/156 92/188
Main motor power 15kw 18.5kw 37kw 55kw 90kw
Barrel heating power 9.6kw 11.5kw 24kw 36kw 88kw
Production capacity 60kg/h 100kg/h 250kg/h 350kg/h 700kg/h
Net weight 2500kg 3000kg 4000kg 5000kg 5500kg
Detailed Photos
Twin screw extruder machine view 1 Twin screw extruder machine view 2 Twin screw extruder machine view 3 Twin screw extruder machine view 4 Twin screw extruder machine view 5 Twin screw extruder machine view 6 Twin screw extruder machine view 7
Frequently Asked Questions
Can we visit your factory?
Sure. We are located in Zhangjiagang city near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport (or Hongqiao International Airport). We can pick you up at the airport or provide an online video visit.
How can we get the exact price of plastic machine?
Contact us with product size, shape, annual quantity, and photo if possible. We can recommend machine models with quotation.
Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment. Contact us for packing list details.
How about your after-sale service?
We offer manual instruction and engineer training before loading. After shipment, we provide 24-hour online support, video technical support, or field installation assistance.
What is the lead time?
For customized machines: 45-60 days after deposit. For stock machines: fast shipment. Actual production cycle varies according to customization degree.
What is the warranty period for your machine?
12 months warranty for components and technical support.
Do you provide custom machines?
Most of our machines are customized. We design machines according to customer products to meet specific needs with efficiency and stable performance.
How can we install the machine when it arrives?
We can send experienced technicians to customer's country for installation guidance, commissioning, and employee training.
What's the advantage of BEISU?
We provide turnkey projects including plant design, plastic machine and mold installation, debugging, and auxiliary equipment sourcing. We ship fully tested machine sets to save cost and time.
