16 - 63mm PVC Pipe Manufacturing Machine , Plastic Pipe Extrusion Machine Independent Control

16 - 63mm PVC Pipe Manufacturing Machine , Plastic Pipe Extrusion Machine Independent Control
16 - 63mm PVC Pipe Manufacturing Machine , Plastic Pipe Extrusion Machine Independent Control 16 - 63mm PVC Pipe Manufacturing Machine , Plastic Pipe Extrusion Machine Independent Control 16 - 63mm PVC Pipe Manufacturing Machine , Plastic Pipe Extrusion Machine Independent Control 16 - 63mm PVC Pipe Manufacturing Machine , Plastic Pipe Extrusion Machine Independent Control 16 - 63mm PVC Pipe Manufacturing Machine , Plastic Pipe Extrusion Machine Independent Control

Large Image :  16 - 63mm PVC Pipe Manufacturing Machine , Plastic Pipe Extrusion Machine Independent Control

Product Details:
Place of Origin: ZHANGJIAGANG,CHINA
Brand Name: BEISU
Certification: CE
Model Number: GF63
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plastic film,40GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per year
Detailed Product Description
Raw Material: PVC Powder,Caco3 Pipe Diameter: 16-63mm
Main Motor Powder: 18.5kw Istall Power: 95kw
Voltage: 380V 50HZ 3Phase(Customized) After-sales Service Provided: Engineers Available To Service Machinery Overseas
Processing Type: Pipe Extrusion Machine
High Light:

pvc pipe extrusion machine

,

pvc pipe making machine

Twin extruder 16-40mm PVC Double Electrical Threading Pipe Production Line



Layout:



PVC Raw material+additive→Mixing Unit→Auto Feeder→Conical Twin-screw Extruder→-Moulds→Vacuum calibration tank→Haul-off→Cutting Machine→Stacker

16 - 63mm PVC Pipe Manufacturing Machine , Plastic Pipe Extrusion Machine Independent Control 0

Summary:

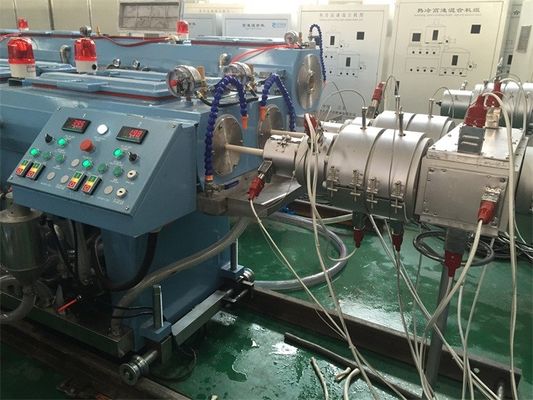

The PVC threading pipe production line equipment consists of SJSZ-51/105 cone double rod extruder with double tube die, double tube vacuum sizing water tank, double tube tractor, double tube fixed length cutting machine and double unloading rack. Direct production with powder, no granulation, labor saving, high production efficiency. It can produce U-PVC building electrical casings with diameters of 16mm- 50mm, building water supply pipes, etc., with the following characteristics:



1. One-mode double pipe, the production efficiency is more than doubled

2. Independent control, practical and convenient operation

3. The screw is highly plasticized and the tube has good cold bendability.

4. Automatic fixed length cutting, variable frequency stepless speed regulation



16 - 63mm PVC Pipe Manufacturing Machine , Plastic Pipe Extrusion Machine Independent Control 1

T16 - 63mm PVC Pipe Manufacturing Machine , Plastic Pipe Extrusion Machine Independent Control 216 - 63mm PVC Pipe Manufacturing Machine , Plastic Pipe Extrusion Machine Independent Control 316 - 63mm PVC Pipe Manufacturing Machine , Plastic Pipe Extrusion Machine Independent Control 416 - 63mm PVC Pipe Manufacturing Machine , Plastic Pipe Extrusion Machine Independent Control 5

Main technical parameter:



Pipe Range 16-40mm 16-63mm
Extruder Model SJSZ51/105 SJSZ65-132
Extruder power 22Kw 37Kw
Extrusion Capacity 135Kg/h 250Kg/h
Max.Production Speed 2*8m/min 2*10m/min



Maintenance method:



1. After 500 hours of use, there will be iron scraps or other impurities from the gears in the gearbox. Therefore, the gears should be cleaned and the gearbox oil should be replaced at the same time.



2. After a period of use, perform a thorough inspection of the extruder and check the tightness of all screws.



3. If the main power supply and heating are stopped suddenly during production, when the power supply is restored, the barrels must be reheated to the specified temperature and kept warm for a period of time before the extruder can be started.



4. If the steering fullness of the meter and the pointer is found, check whether the contact of the edge such as the thermocouple is good.



Zhangjiagang Beisu Machinery has a professional and dedicated after-sales service team to provide customers with a full range of responsible and reliable service. Our customer service work is divided into three phases: pre-sales program discussion and design, production tracking and installation and commissioning, and after-sales service and maintenance.



Pre-sales program discussion and design:



According to the customer's actual crushing or processing line requirements, provide customers with the corresponding professional knowledge explanation; at the same time, our engineering team selects the equipment model for you, customizes the most reasonable and effective crushing scheme, and ensures the perfect combination of our equipment and site layout. Create the greatest value and leave you carefree.



We provide customers with the design of the production line process, and truly design a satisfactory and reasonable production line for customers. Often, in order to meet the special needs of our customers and achieve the best results, we will make non-standard design changes to our products and treat every customer with care.
