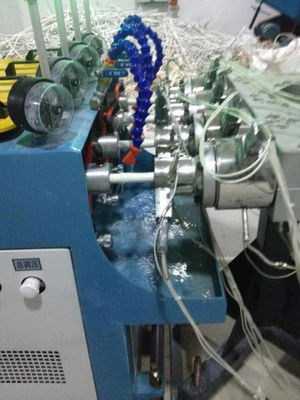

Air Supply >0.5Mpa PVC Pipe Extrusion Line , PVC Pipe Making Machine Four Cavity Extrusion

Air Supply >0.5Mpa PVC Pipe Extrusion Line , PVC Pipe Making Machine Four Cavity Extrusion
Air Supply >0.5Mpa PVC Pipe Extrusion Line , PVC Pipe Making Machine Four Cavity Extrusion Air Supply >0.5Mpa PVC Pipe Extrusion Line , PVC Pipe Making Machine Four Cavity Extrusion Air Supply >0.5Mpa PVC Pipe Extrusion Line , PVC Pipe Making Machine Four Cavity Extrusion Air Supply >0.5Mpa PVC Pipe Extrusion Line , PVC Pipe Making Machine Four Cavity Extrusion

Large Image :  Air Supply >0.5Mpa PVC Pipe Extrusion Line , PVC Pipe Making Machine Four Cavity Extrusion

Product Details:
Place of Origin: ZHANGJIAGANG,CHINA
Brand Name: BEISU
Certification: CE
Model Number: GF32
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plastic film,loading with one 40 GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 80 sets per year
Detailed Product Description
Raw Material: PVC Resin Pipe Diameter: 16-32mm
Main Motor Powder: 37kw Install Power: 125kw
After-sales Service Provided: Engineers Available To Service Machinery Overseas Processing Type: Pipe Extrusion Machine
High Light:

pvc pipe extrusion machine

,

pvc pipe making machine

SJSZ65 Twin screw extruder 16-32mm PVC Four Electrical Pipe Production Line



Devices list:



Item Device Name Qty
1 SJZ-65 conical twin screw extruder 1set
2 Mould (including: mouthpiece,core mandrill,sizing sleeve,Φ16.20.25.32mm) 1 set
3 1 for 4 PVC pipe vacuum water tank 1 set
4 1 for 4 PVC pipe hauling-cutting chip-free combination 1 set
5 1 for 4 PVC pipe discharge shelf 1 set



Summary:



1.Maximum Capacity: it can reach 5-7 ton per 24 hours depend on formula of 20KG~40KG CACO3

2.Water supply:≤25℃,≥0.3Mpa

3.Air supply:0.3m³/min,>0.5 Mpa

4.Temperature:0-40℃

5.Humidity:95% no condensation

6.Installation power:89kw

7.  Total Length:25 meters



Features specifications:



1. Four cavity extrusion,a production line produces four pipes at the same time in high efficiency.



2. Each station of downstream is separate control,like each station of vacuum calibrating,vacuum abnormal alarm, hauling ,cutting ,and stacker,its convenient during operation.



3. Line speed of each station reach to 15m/min,take 16*15 per 24 hours for example.it is up to 5-7 ton.



4. Unique non swarf double cutting device,light structure,fast cutting speed,smooth incision,perfect cutting end.



Air Supply >0.5Mpa PVC Pipe Extrusion Line , PVC Pipe Making Machine Four Cavity Extrusion 0

Air Supply >0.5Mpa PVC Pipe Extrusion Line , PVC Pipe Making Machine Four Cavity Extrusion 1Air Supply >0.5Mpa PVC Pipe Extrusion Line , PVC Pipe Making Machine Four Cavity Extrusion 2Air Supply >0.5Mpa PVC Pipe Extrusion Line , PVC Pipe Making Machine Four Cavity Extrusion 0



Maintenance method:



1. After 500 hours of use, there will be iron scraps or other impurities from the gears in the gearbox. Therefore, the gears should be cleaned and the gearbox oil should be replaced at the same time.



2. After a period of use, perform a thorough inspection of the extruder and check the tightness of all screws.



3. If the main power supply and heating are stopped suddenly during production, when the power supply is restored, the barrels must be reheated to the specified temperature and kept warm for a period of time before the extruder can be started.



4. If the steering fullness of the meter and the pointer is found, check whether the contact of the edge such as the thermocouple is good.



Zhangjiagang Beisu Machinery has a professional and dedicated after-sales service team to provide customers with a full range of responsible and reliable service. Our customer service work is divided into three phases: pre-sales program discussion and design, production tracking and installation and commissioning, and after-sales service and maintenance.



Pre-sales program discussion and design:



According to the customer's actual crushing or processing line requirements, provide customers with the corresponding professional knowledge explanation; at the same time, our engineering team selects the equipment model for you, customizes the most reasonable and effective crushing scheme, and ensures the perfect combination of our equipment and site layout. Create the greatest value and leave you carefree.



We provide customers with the design of the production line process, and truly design a satisfactory and reasonable production line for customers. Often, in order to meet the special needs of our customers and achieve the best results, we will make non-standard design changes to our products and treat every customer with care.
