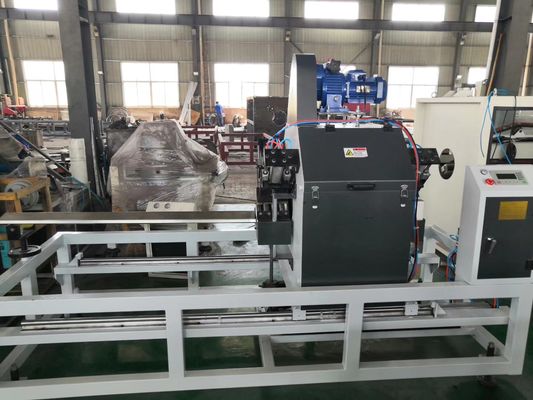

110mm-315mm Automatic Pe 1.1kw Plastic Pipe Cutter Machine

110mm-315mm Automatic Pe 1.1kw Plastic Pipe Cutter Machine
110mm-315mm Automatic Pe 1.1kw Plastic Pipe Cutter Machine 110mm-315mm Automatic Pe 1.1kw Plastic Pipe Cutter Machine 110mm-315mm Automatic Pe 1.1kw Plastic Pipe Cutter Machine

Large Image :  110mm-315mm Automatic Pe 1.1kw Plastic Pipe Cutter Machine

Product Details:
Place of Origin: CHINA
Brand Name: BEISU
Certification: CE,ISO
Model Number: BS-110,160,200,250,315
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD3000 PER SET
Packaging Details: Plastic film package
Delivery Time: 15 working days
Payment Terms: L/C, T/T, D/P
Supply Ability: 100 sets per month
Detailed Product Description
Suitable Material: PE,MPP,PP,PEX Suitable Pipe Range: 110mm~315mm
Motor Power: 1.1kw,2.2kw,3kw Dust Collection System: 0.75Kw
Blades Diameter: 82 Blades Moving: 700
Speed: 0-5
High Light:

1.1kw plastic pipe cutter machine

,

110mm plastic pipe cutter machine

,

315mm plastic pipe cutter machine

110mm~315mm Automatic PE Pipe cutting mahine with SIEMENS PLC system



This machine has the advantages of no chip, no noise, low power, etc. It has obvious advantages compared with the lifting knife cutting machine. It has the advantages of energy saving, no waste of raw materials, low cost and saving manual processing of burrs. It is the first choice for the replacement of cutting equipment. The cutting end face of the pipe is smooth and vertical, and the invisible port of the slash-cutting machine is deformed. Particularly suitable for cutting PP-R, PE, PP, PVC pipe and rubber pipe. Specifications are: φ20-φ75, φ32-φ110, φ50-φ160, in addition φ110-φ250, φ160-315 for users to choose, can also be non-standard design according to customer requirements. It has the advantages of no chip, high efficiency, smooth and flat cut, low energy consumption and no pollution in the pipe production line. It is a good equipment for the enterprise to select the cutting process.



PE Pipe cutting mahine equipment adjustment:
A1. The anti-roll screw must be removed before use.
A2. Adjust the low-foot screw so that the cutting center height is the same as the extruder.
A3. The source pressure must be maintained between 0.4 and 0.6 MPa.
A4. Adjust the cylinder throttle valve (the throttle valve has been adjusted before leaving the factory, generally no adjustment is required).



PE Pipe cutting mahine maintenance:
A1. Always check the air circuit for air leakage. If it is necessary, it should be eliminated in time.
A2. Rack rail, the sliding part of the cylinder fork should be kept clean and lubricated in time (20# mechanical oil).
A3. Check if there is looseness at each joint and adjust it in time.
A4. Turn off the power and air supply during inspection to avoid injury.



Pictures:

110mm-315mm Automatic Pe 1.1kw Plastic Pipe Cutter Machine 0

110mm-315mm Automatic Pe 1.1kw Plastic Pipe Cutter Machine 1

110mm-315mm Automatic Pe 1.1kw Plastic Pipe Cutter Machine 2

110mm-315mm Automatic Pe 1.1kw Plastic Pipe Cutter Machine 3



Techincal parameter:

Model QG-250 QG-400 QG-630
Cutting method Saw cutting(saw must small serration)
cutting pipe diameter range(mm) Φ63-Φ250 Φ200-Φ400 Φ250-Φ630
Cutting motor power(kw) 2.2 2.2 3
Rotating motor power (kw) 0.75 1.1 1.5
Central height(mm) 1000 1000-1200 1200-1500
Cutting pipe thickness 15 25 30



BEISU Machinery:

BEISU machinery and equipment recommendation: PVC/PE/PP pipe production line, PVC/PE wood plastic production line, PVC profile/profile production line, PVC/PP/PE/ABS sheet/sheet production line, PVC edge band production line and mill, High-speed mixer (group), crusher, sharpener, shredder, tractor, winder, cutting machine and other plastic auxiliary machinery.



Why choose BEISU Machinery:
A1: Plant construction, renovation plan, pipeline laying plan in the plant, construction plan of circulating cooling pool

A2: Supply of raw materials, transformers, air compressors and other procurement plans

A3: Provide relevant raw material specific formula, high quality raw material suppliers, raw material cost accounting

A4: Installation equipment, commissioning equipment, training staff, and provide technical support throughout the year

A5: BEISU company has a plastics industry engineering alliance nationwide, in the case of distance, can provide relevant talents in your company year-round work, as a technology backing
