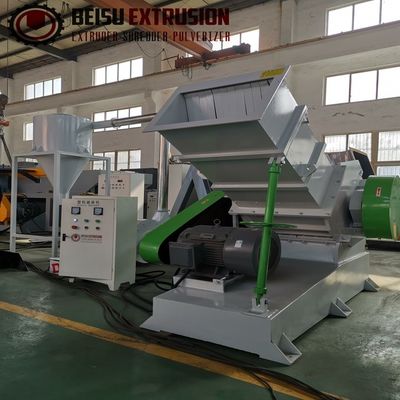

20mm Skd-11 Blades Pvc Grinder Machine Plastic Auxiliary Machine

20mm Skd-11 Blades Pvc Grinder Machine Plastic Auxiliary Machine
20mm Skd-11 Blades Pvc Grinder Machine Plastic Auxiliary Machine
video play

Large Image :  20mm Skd-11 Blades Pvc Grinder Machine Plastic Auxiliary Machine

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: BS-PC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film packing and pallet fixed on the machine bottom
Delivery Time: 35 working days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 20 Set per month
Detailed Product Description
Material: PVC/PE/PET/PP/PC/ABS/PS Shaft Design: Single
Power: 30HP Blades Material: 9CrSi/D2/SKD-11
Screen Mesh: 8-20mm Or Customized Capacity: 50-450Kg/h
High Light:

skd-11 blades pvc grinder machine

,

skd-11 blades Plastic Auxiliary Machine

,

20mm pvc grinder machine

SMF-500/600/800/1000 Plastic PVC crusher grinding machine with SKD-11 blades



The plastic PVC crusher is designed to meet the production needs of high-volume crushing of PVC pipes, hollow plates and sheets at one time. According to the characteristics of the material, the appropriate shearing angle and shearing speed are designed, and the wear-resistant design is adopted to ensure the continuous operation of the system for a long time, so as to achieve the ideal material crushing effect.



The most commonly used knife type of Plastic PVC crusher:
A1: Claw knife: strong dispersing force, high shearing force, dedicated to all kinds of block hard plastics (such as material ends, shoe lasts, etc.);
A2: Flake Knife: General knife type, fast and uniformity of crushing, used for defective nozzles, block, ball, flake, strip, etc.;
A3: Flat knife: The blade is wide, the cutting force is concentrated, and the dust is broken. It is suitable for: sheet materials, boxes and baskets/bottle shells/packaging products, etc.;



Details of Plastic PVC crusher:

20mm Skd-11 Blades Pvc Grinder Machine Plastic Auxiliary Machine 0

20mm Skd-11 Blades Pvc Grinder Machine Plastic Auxiliary Machine 1

20mm Skd-11 Blades Pvc Grinder Machine Plastic Auxiliary Machine 2

20mm Skd-11 Blades Pvc Grinder Machine Plastic Auxiliary Machine 3

20mm Skd-11 Blades Pvc Grinder Machine Plastic Auxiliary Machine 4

20mm Skd-11 Blades Pvc Grinder Machine Plastic Auxiliary Machine 5



Technical characteristics of Plastic PVC crusher:

A1: The plastic crusher has a compact design and saves space
A2: The plastic crusher is inclined up and down to split the box body, which is easy to replace the blade
A3: plastic crusher hydraulic drive hopper and box opening device, easy to maintain
A4: plastic crusher high safety factor bearings, reducing the probability of bearing damage
A5: Precise spindle processing of plastic crusher (front V-shaped spindle is standard configuration)
A6: The two inner sides of the plastic crushing box are equipped with replaceable wear plates
A7: The plastic crusher is equipped with a powerful air delivery device



Technical date:

Model SWP200 SWP320 SWP360 SWP380 SWP400 SWP630
Diameter of rotary cutter 200 320 360 380 400 630
Quantity of rotary cutter 3 6 12 12 5 9
Fixed cutter 2 2 8 8 2 4
Capability(kg/h) 50-110 250-350 100-400 100-400 350-450 700-850
Power(kw) 4 11 11 27.5 13.2 44
Caliber of material inlet(mm) 240*350 500*280 268*120 268*120 375*320 820*610























































BEISU Machinery:

BEISU machinery and equipment recommendation: PVC/PE/PP pipe production line, PVC/PE wood plastic production line, PVC profile/profile production line, PVC/PP/PE/ABS sheet/sheet production line, PVC edge band production line and mill, High-speed mixer (group), crusher, sharpener, shredder, tractor, winder, cutting machine and other plastic auxiliary machinery.



Why choose BEISU Machinery:
A1:Plant construction, renovation plan, pipeline laying plan in the plant, construction plan of circulating cooling pool, etc.;

A2:Supply of raw materials, transformers, air compressors and other procurement plans;

A3:Provide relevant raw material specific formula, high quality raw material suppliers, raw material cost accounting, etc. ;

A4:Installation equipment, commissioning equipment, training staff, and provide technical support throughout the year;

A5:BEISU company has a plastics industry engineering alliance nationwide, in the case of distance, can provide relevant talents in your company year-round work, as a technology backing.
