Product Details:
Payment & Shipping Terms:
|
| Apply To Pipe Size: | 16-800mm | Application Area: | PVC CPVC UPVC Powder Or Granules |
|---|---|---|---|
| Feeding Mothed: | Dosing Feeding System | Screw Type: | Conical Or Single Screw |
| Screw Barrel: | Alloy/Bi Material | Motor: | Siemens Or Top Local Brand |
| Drive: | By ABB Or Other Top Brand | Output: | Upto 800kg/Hr |
| Electrical Components: | Siemens, ABB, Omron, Etc. | Machine Control: | By Siemens PLC Screen Touch |
| Highlight: | BS-32 Extruding Making Machine,Single Screw Extruding Making Machine,Double Pipe Cutter Extruding Making Machine |
||
PVC pipes are widely used for agricultural water supply system, sewer system, waters discharge systems for civil and industrial buildings, cable conduits, protection sheathing for electric cables, etc.
BEISU factory plastic PVC pipe making machine extrusion production line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness. The machine is composed of conical twin screw extruder, Vacuum calibration tank, haul-off(take-off) machine ,motors, cutter and stacker etc. The extruder and haul off methods are two-claw,three-claw four-claw,six-claw,eight-claw,ten-claw,twelve claw etc. You may choose saw blade cutting type or planetary cutting type. It is aditionaly attached with length counter and intensifying device. This line with reliable performance and high production eficiency.
Production Process:
Screw Loader for Mixer- Mixer unit- Screw Loader for Extruder- Conical Twin Screw Extruder 一 Mould 一 Vacuum Calibration Tank 一 claws Haul-off 一 Planetary Saw Cutter Belling machine/ Tripping Table 一 Final Product Inspecting &Packing
Plastic PVC pipe making machine has the following features:

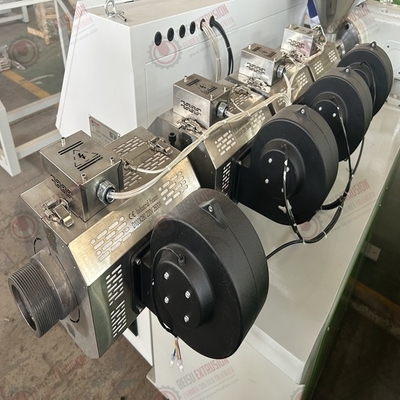

A1.Extrusion Equipment of PVC pipe making machine :Double screw extruder takes the new and efficient Screw, and has the higher screw speed, yield and plasticizing capacity...nose or spiral-flow nose, with a uniform material, convenient adjustment to eliminate extrusion fusion line and so on.

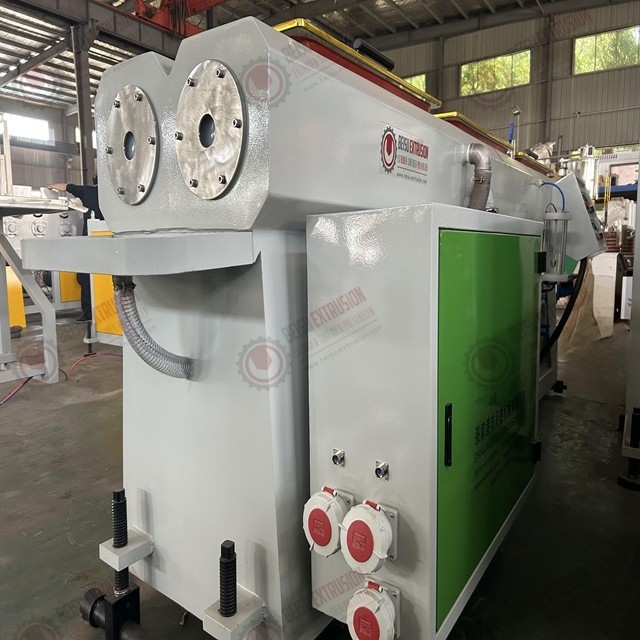

A2.Vacuum shaping devices of PVC pipe making machine :vacuum spray tank, spray cooling tank or efficient cooling tank, and all water contact parts made of stainless steel material.

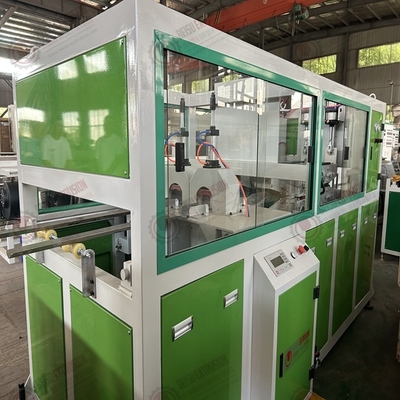

A3.Traction machine of PVC pipe making machine :two claw-type or rubber belt crawler tractor in order to adapt to different pipe production requirements..

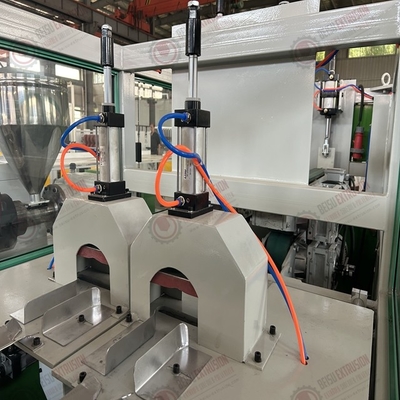

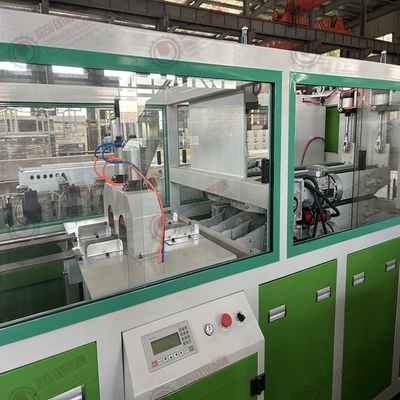

A4.Cutting machine of plastic pipe making machine :No dust rotating knife.
A5.Stacking devices of PVC pipe making machine :automatic turn plate or roller-type stacking devices, small-diameter pipe can be configured duplex winder according to customer requirements duplex winder.

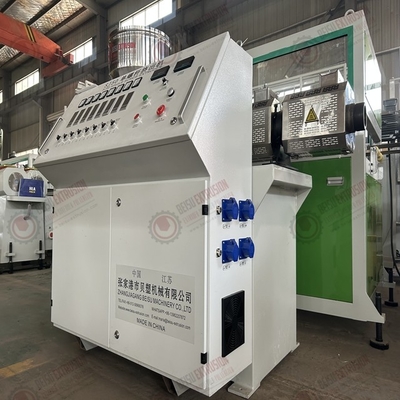

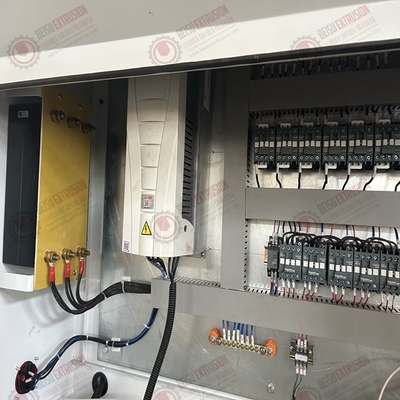

A6.Electrical control system for a variety of options (eg: PLC automatic control system),good production speed, stability, and the control system is simple and easy to operate.
Main parameter of PVC pipe machine:
| Extruder model | SJSZ-51/105 | SJSZ-55/110 | SJSZ-65/132 | SJSZ-80/156 | SJSZ-92/188 |
| Driving motor (kw) | 15 | 37 | 37 | 55 | 90 |
| Pipe diameter range(mm) | 16-40 | 20-110 | 50-200 | 200-400 | 400-630 |
| Water pump | 3kw | 4kw | 5.5kw | 5.5kw X 2pcs | 7.5kw X 2pcs |
| Vacuum pump | 2.2kw X 2pcs | 4kw | 4kw | 4kw X 2pcs | 7.5kw 5.5kw X 2pcs |
| Caliber Length(mm) | 5000 | 6000 | 6000 | 8000 | 6000, 3000 |
| Water cooling tank | No | No | 5000 | 6000 | 100000 |
| Hauling motor | 0.75kw 4pcs | 2.2kw | 3.7kw | 7.5kw | 18.5kw |
| Hauling belt | 4pcs | 2pcs | 2pcs | 4pcs | 6pcs |
| Cutting motor | 1.1kw 2pcs | 2.2kw | 3.7kw | 3.7kw | 3.7kw |
| Inverter brand | ABB | ABB | ABB | ABB | ABB |
| Contactor brand | Schneider | Schneider | Schneider | Schneider | Schneider |
1. Before shipment testing at factory, vedio record.
2. Vedio instruction for operation.
3. User manual and installation instruction, layout and drawings.
4. Lable&marks for disassemble parts, wiring&cables.
1.Reliable
Most popular design with years' verification.
Mature supply chain for raw materials with strict quality assurance.
International famous brands of key parts i.e. ABB invertor, Siemens electronics, Siemens motor, Mettler Toledo scale etc.
2. Economy
BEISU Stable technology commercialized in China.
High efficiency mixing performance.
Cost effective solutions.
Real time communication SNS group chat(WeChat preferred, Skype/WhatsApp) which includes buyer side and BEISU service team is created for technical assistance in the quickest manner. Scheduled video calls are also available. Just as the company vision 'Customer Oriented' says,BEISU always stands at customer's point to offer the optimum solution and help customer to maximize profit. BEISU has its own customer management system and spare parts management system which ensure quickest responds and enough regular easy-wearing parts whenever customer requests.
