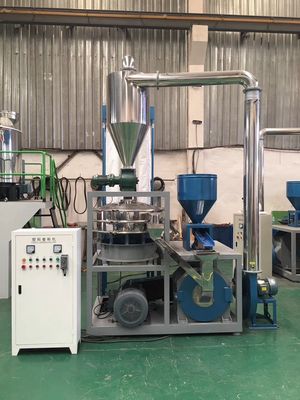

SMF-800 PVC PP Pulverizer Grinding Machine , Plastic Grinding Machine High Output

SMF-800 PVC PP Pulverizer Grinding Machine , Plastic Grinding Machine High Output
SMF-800 PVC PP Pulverizer Grinding Machine , Plastic Grinding Machine High Output SMF-800 PVC PP Pulverizer Grinding Machine , Plastic Grinding Machine High Output SMF-800 PVC PP Pulverizer Grinding Machine , Plastic Grinding Machine High Output SMF-800 PVC PP Pulverizer Grinding Machine , Plastic Grinding Machine High Output

Large Image :  SMF-800 PVC PP Pulverizer Grinding Machine , Plastic Grinding Machine High Output

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: BS-800
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film packing and pallet fixed on the machine bottom
Delivery Time: 20 working days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 10 Sets per month
Detailed Product Description
Material: PVC/PE/PP/PET/EVA/ABS/Fiber Miller Model: BS-PVC-600
Motor Power: 75Kw Fan Power: 7.5Kw
Vibrator Power: 1.1Kw Capacity: 450Kg/h
High Light:

plastic grinding pulverizer machine

,

plastic grinding machine

SMF-800 PVC PP pulverizer milling machine for plastic extrusion machine



Application:

PVC PP PE pulverizer can be used for PVC,PP, LDPE, HDPE material. The mesh after pulverizing can be 30-50 mesh.The capacity from 80-450kg/h. The pulverizer machine including: vibration feeder, milling host, vibration sieve, dust collecting system. and special requirement on pulverizer can be customized.



Main Features:

A1. This type can grind most kinds of Hard & Soft materials into 20-100 mesh powders in normal temperature.
A2. A widely use range, PVC/PE/HDPE/LDPE/LLDPE/ABS/PS/PA/PC/PET/PMMA/PLA Materials.
A3. Equipped with seperatly Dust powder collector.
A4. The transport pipe and silo are all bade by stainless steel, it can work much more continously than normal steel type.
A5. Knife can be adjusted easily, smaller size powder or bigger size powder is just according to your demand.

A6.Low energy consumption and high output.



PVC pulverizer is mainly used for grinding PVC granules or recycling waste materials into powder. This pulverizer uses new type cutting tool, it has the features of high output, fine grinding, energy conservation and environmental protection. The installation for this pulverizer is convenient,just opening the grinding room gate to clean and maintain, the whole pulverizing process is fully sealed, there is no dust leakage. The grinding gap can be adjusted easily,just use the feeler gauge and adjust the bolt to realize the accurate adjustment. The cooling system of pulverizer adopts the combination of wind and water, which has much better cooling effect.



Details specification pictures of Plastic pulverizer:

SMF-800 PVC PP Pulverizer Grinding Machine , Plastic Grinding Machine High Output 0

SMF-800 PVC PP Pulverizer Grinding Machine , Plastic Grinding Machine High Output 1

SMF-800 PVC PP Pulverizer Grinding Machine , Plastic Grinding Machine High Output 2



Technical dates of Plastic pulverizer:

A1:PP/EVA/ABS pulverizer

model MF400 MF500 MF600 MF800
diameter of blade 400MM 500MM 600MM 800MM
main motor power 30kw 45kw 55kw 75kw
blade material SKD-11 or D53 SKD-11 or D53 SKD-11 or D53 SKD-11 or D53
capacity around 100kg/h around 200kg/h around 300kg/h around 500kg/h



A2:HDPE/LLDPE /soft PVC/PET etc pulverizer

model MF400 MF500 MF600 MF800
diameter of blade 400MM 500MM 600MM 800MM
main motor power 30kw 45kw 55kw 75kw
blade material SKD-11 or D53 SKD-11 or D53 SKD-11 or D53 SKD-11 or D53
capacity around 100-150kg/h around 250kg/h around 350kg/h around 500kg/h



A3:Hard PVC pulverizer:

model MF400 MF500 MF600 MF800
rotary blade qty 18 24 28 40
fixed blade qty 10 12 15 20
main motor power 30kw 45kw 55kw 75kw
blade material high chromium alloy high chromium alloy high chromium alloy high chromium alloy
capacity around 100-150kg/h around 250kg/h around 350kg/h around 500kg/h


BEISU Machinery:

BEISU machinery and equipment recommendation: PVC/PE/PP pipe production line, PVC/PE wood plastic production line, PVC profile/profile production line, PVC/PP/PE/ABS sheet/sheet production line, PVC edge band production line and mill, High-speed mixer (group), crusher, sharpener, shredder, tractor, winder, cutting machine and other plastic auxiliary machinery.



Why choose BEISU Machinery:
A1:Plant construction, renovation plan, pipeline laying plan in the plant, construction plan of circulating cooling pool;

A2:Supply of raw materials, transformers, air compressors and other procurement plans;

A3:Provide relevant raw material specific formula, high quality raw material suppliers, raw material cost accounting;

A4:Installation equipment, commissioning equipment, training staff, and provide technical support throughout the year;

A5:BEISU company has a plastics industry engineering alliance nationwide, in the case of distance, can provide relevant talents in your company year-round work, as a technology backing.
