Product Details:
Payment & Shipping Terms:
|
Material: | PVC/PE/PP/PET/EVA/ABS/Fiber | Miller Model: | BS-PVC-500 |
---|---|---|---|
Motor Power: | 45Kw | Fan Power: | 5Kw |
Vibrator Power: | 0.75Kw | Capacity: | 350Kg/h |
Highlight: | plastic grinding pulverizer machine,plastic grinding machine |
BS-600 Sinlge speed PET granules pulverizer milling machine with inverter
Plastic pulverizer machine introduction:
The plastic mill http://www.beisu-extrusion.comcan be divided into two types: grinding disc type and cutter disc type. The grinding disc grinding machine mainly cuts and grinds the material by the gap between the two grinding discs. The cutter disc type grinder is driven by the material and the cutter head. Grinding, plastic mill is named after years of practical performance and operation. Based on the absorption and introduction of foreign advanced equipment, Jianuo Machinery has successfully designed and developed to meet the needs of customers. Ideal equipment for PVC, high density PE, PS, SBS, foamed PE, EVA, soft PVC and other thermoplastic materials, plant fiber and leather. It is also a processing equipment for recycling and recycling of plastic products. It is a good helper for plastic products enterprises to solve the problem of waste product backlog and reduce costs. It has high output, low energy consumption, can be adjusted freely, easy to maintain, environmentally friendly and pollution-free. Compared with similar products, it has upgraded to a new level.
Plastic mill performance characteristics:
1: This machine uses water circulation and air cooling, suitable for processing thermoplastic materials.
2: The high-speed rotating airflow (local eddy current) generated by the high-speed rotation of the spindle grinding disc of the machine is the high-speed movement of the incoming material and the grinding disc. The cutter disc is strongly collided and cut into powder.
3: Grinding disc, cutter disc has been professionally designed, using SKD11 material and high-density wear-resistant steel casting process, after heat treatment and vacuum quenching, good wear resistance.
4: The machine is compact and small in size. It can be maintained and maintained by simply opening the door cover. It is completely sealed and has no dust. http://www.beisu-extrusion.com
5: Equipped with air delivery and discharge device to ensure uniform cooling of materials and fast cooling.
6: It is equipped with a feeding machine to control the amount of material to be fed, and the dust removing device reduces dust.
7: Beautiful and elegant design, bag filter, dust collector, two-in-one, can also be equipped with pulse dust collector, which is an environmentally-friendly high-quality product. It is easy to replace the wearing parts in the machine. It is easy to save time compared with similar products. 2 Hours, safe and reliable.
8: The output is high, which can be increased by about 20% according to different material yields, and the mesh number can be adjusted arbitrarily between 10-100 mesh.
Plastic mill function description:
1: The function of the feeder is to send the material evenly to the grinding chamber.
2: The plastic mill http://www.beisu-extrusion.com is rotated by the high speed of the spindle grinding disc and the high speed rotation of the fixed cutter disc is the high-speed movement of the incoming material and the grinding disc, the tooth plate, colliding and cutting.
3: The function of the fan is to transport the ground material from the grinding disc chamber to the cyclone.
4: The function of the cyclone separator is to separate the ground material from the air flow generated by the fan.
5: The function of the blower is to evenly send the ground material to the vibrating screen to isolate the wind in the cyclone.
6: The vibrating screen is to sort the ground materials according to their own mesh requirements. The finished materials are packed, and the unqualified materials are returned to the grinding chamber through the pipeline for re-grinding.
7: The role of the precipitator is to isolate the wind and a small amount of material in the cyclone.
zhangjiagang beisu machienry main mahine sales http://www.beisu-extrusion.com: plastic mill, PE mill, PVC mill, grinding disc mill, high-speed mixer, high-speed mixing unit, PVC mixer, high mixer

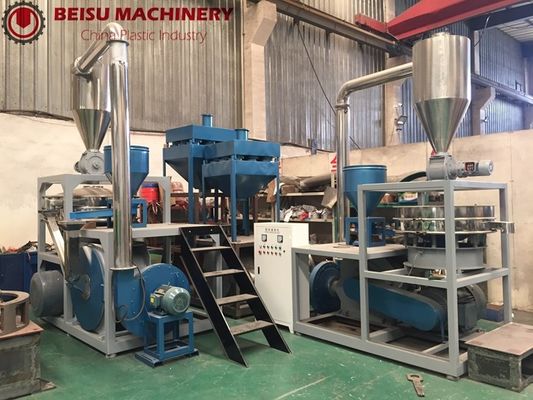

Details specification pictures of Plastic pulverizer:
Technical dates of Plastic pulverizer:
A1:PP/EVA/ABS pulverizer http://www.beisu-extrusion.com
model | MF400 | MF500 | MF600 | MF800 |
diameter of blade | 400MM | 500MM | 600MM | 800MM |
main motor power | 30kw | 45kw | 55kw | 75kw |
blade material | SKD-11 or D53 | SKD-11 or D53 | SKD-11 or D53 | SKD-11 or D53 |
capacity | around 100kg/h | around 200kg/h | around 300kg/h | around 500kg/h |
A2:HDPE/LLDPE /soft PVC/PET etc pulverizer http://www.beisu-extrusion.com
model | MF400 | MF500 | MF600 | MF800 |
diameter of blade | 400MM | 500MM | 600MM | 800MM |
main motor power | 30kw | 45kw | 55kw | 75kw |
blade material | SKD-11 or D53 | SKD-11 or D53 | SKD-11 or D53 | SKD-11 or D53 |
capacity | around 100-150kg/h | around 250kg/h | around 350kg/h | around 500kg/h |
A3:Hard PVC pulverizer:http://www.beisu-extrusion.com
model | MF400 | MF500 | MF600 | MF800 |
rotary blade qty | 18 | 24 | 28 | 40 |
fixed blade qty | 10 | 12 | 15 | 20 |
main motor power | 30kw | 45kw | 55kw | 75kw |
blade material | high chromium alloy | high chromium alloy | high chromium alloy | high chromium alloy |
capacity | around 100-150kg/h | around 250kg/h | around 350kg/h | around 500kg/h |
