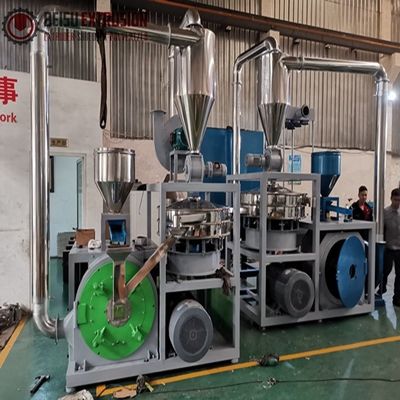

600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades

Certification
China Zhangjiagang Beisu Machinery Co., Ltd. certification
China Zhangjiagang Beisu Machinery Co., Ltd. certification
The quality of the machine of Beisu Machinery is very stable, the output is high, the details are very user friendly, and they provide a quick response when we need service.

—— Ahmed Zeitoun

The quality of the high speed mixer produced by Beisu Machinery is outstanding. We have ordered 3 sets of equipment and they are all in use. Maria provides our professional and prompt after sales service.

—— Adrew

I'm Online Chat Now

600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades

600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades
600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades

Large Image :  600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades

Product Details:
Place of Origin: CN
Brand Name: BEISU
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: >=1 Sets
Price: $15,000.00
Packaging Details: Film packing or wood package as customer requirements
Supply Ability: 200 Set/Sets per Year
Detailed Product Description
Output (kg/h): 500 - 600kg/h Feeding Size (mm): 8 - 10 Mm
Output Size (mesh): 20 - 80 Mesh Power (kW): 45
Range Of Spindle Speed(r.p.m): 2900 - 3700 R.p.m Type: Pulverizer
Voltage: 220V/380V/415V/440V Dimension(L*W*H): 2000mm*2800mm*3200mm
Weight (KG): 2000 KG Key Selling Points: Automatic
Applicable Industries: Manufacturing Plant Raw Material: PVC
Motor Power: 90Kw Material Blade: High Alloy Steel
Blade Type: Disc Off Fan Blower Motor Power: 1.1Kw
Fan Blower Motor Power: 11Kw Bearing Brand: NSK
OIL Filling System: Oil Pump Dust Collection Type: Bag
Contactor Brand: SIEMENS Port: SHANGHAI Or NINGBO PORT
High Light:

rotor blades pvc pulverizer

,

45kw Pvc Pulverizer

,

600kg/H Pvc Pulverizer

600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 0
Application of SMF-800 PVC pulverizer miller: The high-speed and high-efficiency pulverizer manufactured by Beisu Machinery is especially suitable for TPU, LLDPE, PVC, PE, PET, EVA, PP, PA, rubber, and various rigid, soft, elastomer, low-temperature materials, and film materials. , Sheet thermoplastic materials. According to the classification of the grinding materials, the mills are mainly divided into two categories: rotor (turbine) mills and disc mills.

The working principle of SMF-800 PVC pulverizer miller The high-speed rotation of the grinding disc driven by the main shaft of the plastic pulverizer collides with the fixed cutter disc, cutting the material into powder (without sieve). The ground fine powder is brought into the vibrating screen along with the circulating air of the blower for sorting. The coarse material falls back to regrind, and the qualified fine powder enters the finished product storage with the cyclone and is discharged through the powder outlet pipe. That is the finished product. The air is discharged from the dust collector.
600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 1
600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 2
600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 3
600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 4
600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 5
600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 6
600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 7
600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 8
Model
380
610
800

 Grinding Disc Diameter(mm)

380
610
800
Main Motor Power(kw)
30
45
55
End Plastic Powder Size
10-100mesh
10-100mesh
10-100mesh
Cooling Method
Air/Water cooling
Air/Water cooling
Air/Water cooling
Outout(kg/h)
PVC:200kg/h
PE:150kg/h
PP:80kg/h
PVC:350kg/h
PE:250kg/h
PP:160kg/h
PVC:500kg/h
PE:350kg/h
PP:200kg/h



Main Features of SMF-800 PVC pulverizer miller:



A1: The new disc design is with high quality, strong resistance and the life of this grinding disc is double the ordinary ones.
A2: The newly designed professional bearings, is with a high rotation rate. At the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time of machine operation and engineering control.
A3: Easy installation and maintenance, just open the door to clean up.
A4: The whole milling process is sealed, without dust leakage.
A5: Full automatic design, automatically feeding, discharging and sorting.
A6: Grinding gap adjustment is simple, just use the feeler gauge and adjust bolts can be fine tuning.
A7: The mill use the water and wind double cooling system.
A8: With a wide range of optional accessories, professional solutions can be developed based on the customer's budget and processing requirements.

600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 9
600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 10
600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 12
600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 14
600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 15
600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 16
600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 17
600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 18
600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 19
600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 20
600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 21
600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 22
600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 23
600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 24
600kg/H 45kw Pvc Pulverizer Miller With Rotor Blades 25
