Product Details:
Payment & Shipping Terms:
|
| Model NO.: | MF-1000 | Working Style: | High-speed Universal |
|---|---|---|---|
| Suitable For Materials: | Soft PVC/PE/LDPE/LLDPE/HDPE/PET/ABS/PC/PMMA/PS/MASTERBATCH/ | Motor Power: | 110Kw |
| Blower Motor Power: | 11Kw | Off Fan Motor Power: | 2.2Kw |
| Vibrator Motor Power: | 2.2Kw | Electric Parts: | ABB Or Delta Inverter |
| Capacity: | 1500Kg/h | Mesh: | 20-40 |
| Highlight: | WPC Waste plastic grinding milling machine,SPC Waste plastic grinding milling machine,PVC Waste plastic grinding milling machine |
||
The main application fields of plastic grinding milling machines are as follows:
General description
Waste plastic grinding milling machine is mainly used for breaking SPC, PVC materials, like LVT flooring, SPC flooring, plastic door and windows. Materials no need cut. It can continuous feeding. This machine has applied strong wind cooling system, which can apparently reduce internal temperature of machine.
Fearures and descriptions
A1. Compared with similar PVC pulverizer, its output is greatly improved (increased by 20%-50%) under the same power.
A2. It is energy-saving.
A3. The dust collector is added to effectively reduce dust pollution.
A4. The discharging of the main fan reduces labor intensity of operating workers.
A5. The door cover of the host can be opened for convenience of cutters.
A6. Wind and water cooling system are adopted to decrease the working temperature inside the machine body, so the grinded material uneasy for denaturalization and also conducive to grind heat sensitivity plastics...
A7. The powder mesh is adjustable (10-100mesh).
Mechanical Structure and Operational Principle

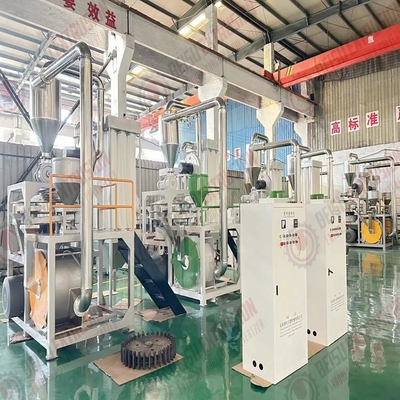

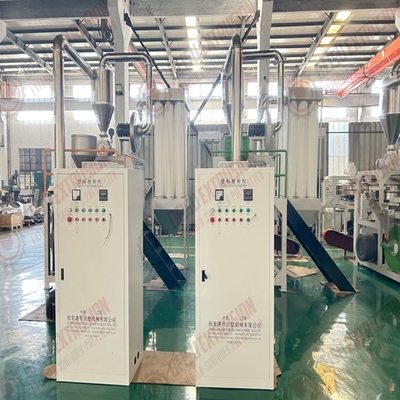

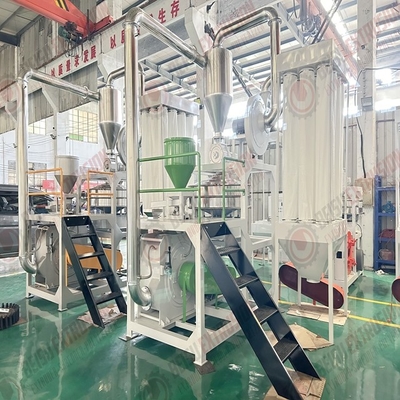

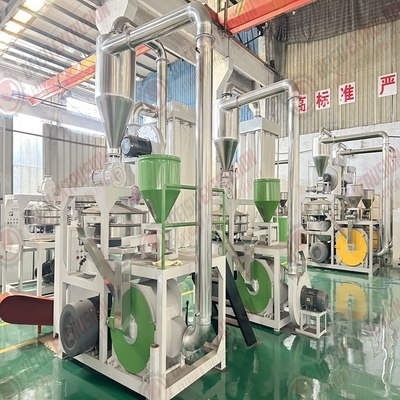

The machine is composed of hopper, cabinet, main shaft, capstan, reclaiming fan blower, dust collecting machine, machine frame, motor, electric apparatus box and so on.
Operating principle: The crashing materials get into the main frame through feeding skip. With the tail-wagging airstreams produced by the tail-wagging of the capstan, the grain-shaped materials tail-wagging in the crocus room, colliding with the board and cutting blades poignantly. After they are crashed, they were sent into dust-collecting bagging through reclaiming fan blower.
A1. We have absorbed the advanced technology at home and abroad to develop the Solid Wood Floor Pulverizer SPC Flooring Pulverizing Machine, which is applicable to the powder processing of rigid vinyl plank, PVC plastic (Low to moderate hardness), PVC profile, PVC board scraps.
A2. The practice and experience of plastic product factories show that the chemical physics functions of the products can reaches 320-800kg/h (10-80mesh). So this flooring pulverizer is the best equipment for reducing cost, saving expense and solving the accumulation of waste plastic.
A3. The door cover can be opened, which makes it convenient to check, repair & maintain. Double cooling system of wind & water may cool down material, blade and tooth-shaped plate. This flooring pulverizer has applied strong wind cooling, which can apparently reduce internal temperature of the machine. This is good for grinding heat sensitive tooth shaped plate. Fine powder exits with the air flow, those coarse powder which is near the tooth-shaped plate can not exit due to blocking bar until they are ground into fine powders.
Technical datas of Waste plastic milling machine:
|
Model |
SMF-500 |
SMF-600 |
SMF-800 |
|
Milling chamber |
φ500 |
φ600 |
φ800 |
|
Rotary Blades |
24 PCS |
28 PCS |
36 PCS |
|
Main Speed(RPM) |
3900 |
3900 |
3900 |
|
Main motor |
37KW |
55 or 75KW |
75 or 90KW |
|
Final powder size |
12-120 micron |
12-120 micron |
12-120 micron |
|
Capacity |
150-230kg/hr |
200-350kg/hr |
400-600kg/hr |
|
Machine Weight |
1500kgs |
1600kgs |
1800kgs |
|
Dimension(mm) |
4200*1450*2900 |
4500*1450*3600 |
4800x1800x4000 |
Zhangjiagang Beisu Machinery Co,Ltd is a certified manufacturer, exporter and supplier of
plastic PVC/PE/PP/PET/EVA/ABS processing machinery. Due to our constant commitment to
extrusion technology, we have emerged as a leading manufacturer of Plastic Extrusion
Machinery for PVC pipes Extrusion Line, HDPE pipes Extrusion Line, PVC compounding
Extruder, PPR Pipes Extrusion Line, PVC profiles Extrusion Line.
Especially High speed Plastic mixer, PVC compounding mixer, SPC mixer.WPC mixer,Plastic Granulating and Pelletizing Line,Plastic pvc pelletizing machine,Soft PVC shoes granulator, PVC compounding pelletizer and Plastic PVC pulverizer, PVC miller,SPC milling machine, WPC pulverizer, SPC pulverizer, PE pulverizer,LDPE pulverizer,PET pulverizer,ABS pulverizer,HDPE pulverizer,Plastic pulverizer, Plastic milling machine, Plastic miller machine,Plastic Crusher,PVC crusher,PE crusher,PP shredder, Plastic PVC Shredder etc for a wide range of extrusion processes.
1. Before shipment testing at factory, vedio record.
2. Vedio instruction for operation.
3. User manual and installation instruction, layout and drawings.
4. Lable&marks for disassemble parts, wiring&cables.
1.Reliable
Most popular design with years' verification.
Mature supply chain for raw materials with strict quality assurance.
International famous brands of key parts i.e. ABB invertor, Siemens electronics, Siemens motor, Mettler Toledo scale etc.
2. Economy
BEISU Stable technology commercialized in China.
High efficiency mixing performance.
Cost effective solutions.
Real time communication SNS group chat(WeChat preferred, Skype/WhatsApp) which includes buyer side and BEISU service team is created for technical assistance in the quickest manner. Scheduled video calls are also available. Just as the company vision 'Customer Oriented' says,BEISU always stands at customer's point to offer the optimum solution and help customer to maximize profit. BEISU has its own customer management system and spare parts management system which ensure quickest responds and enough regular easy-wearing parts whenever customer requests.
