| Application: | PVC SPC WPC | Model: | PBS-800 |
|---|---|---|---|
| Heating Mixermotor Power: | 75Kw | Inverter Brand: | Delta |
| Temperature Control Brand: | OMRON | Paddle Mode: | 72 Pcs |
| Capacity: | 800Kg/h | ||
| Highlight: | Plastic PVC grinding milling machine |
||

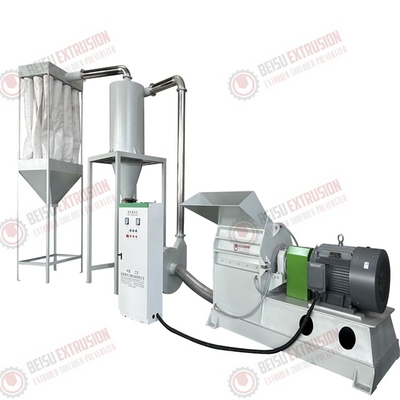

PVC SPC WPC crusher and miller machine are mainly used to crush SPC and PVC waste materials directly and grind them into powder; such as PVC stone plastic wallboard, stone plastic door panel, PVC gusset plate, LVT floor, furniture board, PVC film, PVC edge banding strip, SPC floor, plastic door and window. No need to cut the material. Continuous feeding is possible. It is mainly used for recycling waste boards, sheets and profiles of hard PVC and SPC.
A1: Adopting a special long oblique bucket design; ensuring that boards, gusset plates, floors, door panels and profiles can be fed continuously at one time without cutting. The feed port is large and the crushing chamber is high, which is suitable for hardness and agglomeration materials.
A2. Mobile screen, the mesh size can be customized as needed
A3. The feed port is equipped with a protective curtain to protect the safety of operators
A4. The machine is sturdy, shockproof, stable and has high production efficiency. ”
Technical date:
| 1 | Model | PBS-800 | ||
| 2 | Moving blade quantity | 72 | ||
| 3 | Blade dimension | mm | 160×60×6 | |
| 4 | Motor power | KW | 75 | |
| 5 | Thickness of mesh | mm | 6 | |
| 6 | Diameter of mesh | mm | 6 | |
| 7 | Capacity | Kg/h | 600-700 | |
| 8 | Rotary diameter | mm | 650 | |
| 9 | Driving method | Motor directly connect | ||
| 10 | Voltage | 380V 50Hz | Can be customized according to the requirements | |
| 11 | Bearing quantity | PCS | 2 | |
| 12 | Beating brand | NSK | ||
| 13 | Discharge method | Fan blower | ||
| 14 | Suction blower motor power | Kw | 7.5 | |
| 15 | Motor brand | China | ||
| 16 | Start and off | Star-delta starting | ||
1. Before shipment testing at factory, vedio record.
2. Vedio instruction for operation.
3. User manual and installation instruction, layout and drawings.
4. Lable&marks for disassemble parts, wiring&cables.
1.Reliable
Most popular design with years' verification.
Mature supply chain for raw materials with strict quality assurance.
International famous brands of key parts i.e. ABB invertor, Siemens electronics, Siemens motor, Mettler Toledo scale etc.
2. Economy
BEISU Stable technology commercialized in China.
High efficiency mixing performance.
Cost effective solutions.
Real time communication SNS group chat(WeChat preferred, Skype/WhatsApp) which includes buyer side and BEISU service team is created for technical assistance in the quickest manner. Scheduled video calls are also available. Just as the company vision 'Customer Oriented' says,BEISU always stands at customer's point to offer the optimum solution and help customer to maximize profit. BEISU has its own customer management system and spare parts management system which ensure quickest responds and enough regular easy-wearing parts whenever customer requests.
