Product Details:
Payment & Shipping Terms:
|
| Plastic Processed: | FRPP/PVC, FRPP/PVC, FRPP/PVC, FRPP/PVC, FRPP/PVC, FRPP/PVC | Output (kg/h): | 2 - 20 Kg/h |
|---|---|---|---|
| Screw Design: | Single-screw | Screw Material: | 38CrMoALA |
| Screw Diameter (mm): | 25 | Screw L/D Ratio: | 25:1 |
| Screw Speed (rpm): | 120rpm | Showroom Location: | None |
| Voltage: | 220V/380V/440V/415V | Dimension(L*W*H): | Customized |
| Power (kW): | 1.5 | Weight: | 300Kg |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Applicable Industries: | Manufacturing Plant | Core Components: | Screw, Screw, Screw, Screw, Screw, Screw, Screw, Screw |
| Raw Material: | PE/PVC/PP/PU/TPE/ABS/PA | Extruder Model: | SJ25/25;SJ30/25;SJ45/30 |
| Screw Type: | Single | Screw Length: | 625mm;725mm;1350mm |
| Screw Material: | 38 CRMOALA | Extruder Speed: | 1-120RPM |
| Motor Power: | 1.5Kw Or 2.2Kw Or 3Kw | Inverter Brand: | ABB Or Delta |
| Temperature Brand: | OMRON,JAPAN | Contactor Brand: | SCHNEIDER Or SIEMENS |
| Port: | SHANGHAI Or NINGBO PORT | ||
| Highlight: | single screw filament extruder machine,120rpm filament extruder machine,PE masterbatch extruder |
||

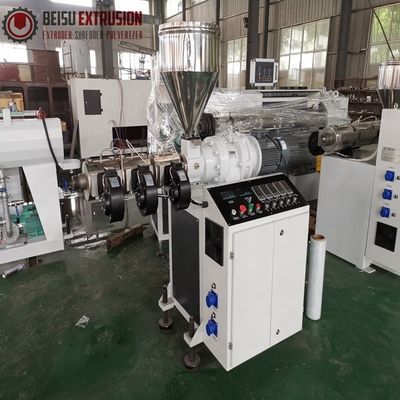

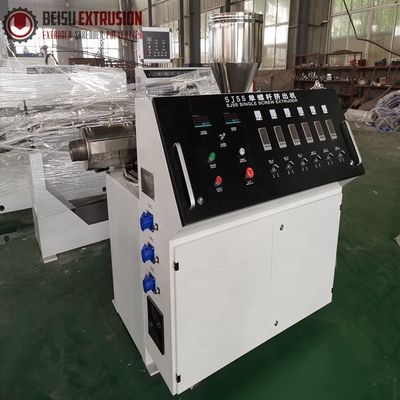

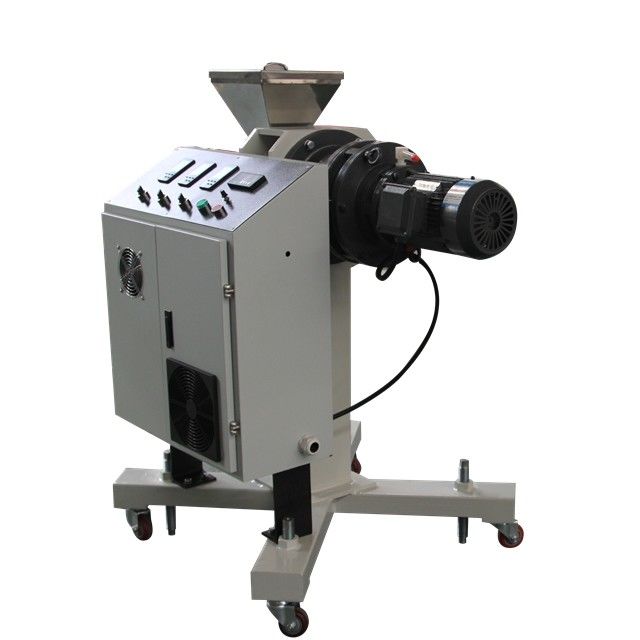

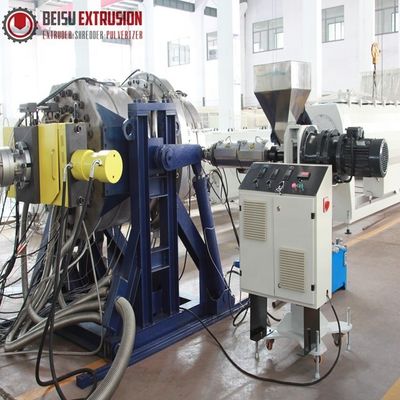

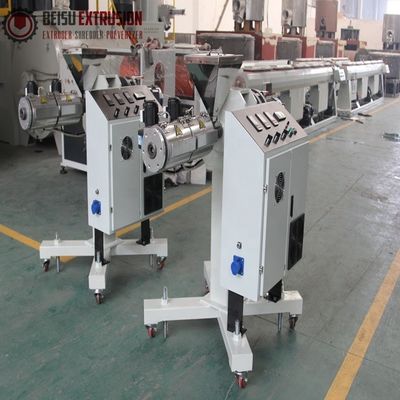

Single Screw Extruder For PE/PU/PEEK/PVC Filament And Masterbatch
Application of single screw extruder: The single-screw extruder is mainly used for extruding soft and hard PVC, polyethylene and other thermoplastics. It can process a variety of plastic products, such as blown film, extruded tube, pressing plate, drawing ribbon, etc., and can also be used for melt granulation. The plastic extruder has advanced design, high quality, good plasticization and low energy consumption. It adopts involute gear transmission, which has the characteristics of low noise, stable operation, large bearing capacity and long life. The usege of single screw extruder in various fields: A1 single screw pipe extrusion: suitable for PP-R pipe, PE gas pipe, PEX cross-linked pipe, aluminum-plastic composite pipe, ABS pipe, PVC pipe, HDPE silicon core pipe and various co-extruded composite pipes. A2 Single screw plate and sheet extrusion: suitable for the extrusion of PVC, PET, PS, PP, PC and other profiles and plates. Extrusion of various other plastics such as silk and rods. A3 Extrusion of single-screw profiles: Adjusting the speed of the extruder and changing the structure of the extruder screw can be applied to the production of various plastic profiles such as PVC and polyolefins. Modified granulation: It is suitable for blending, modifying and enhancing granulation of various plastics.|
Machine Model
|
Capacity
|
Screw Rotating Speed
|
Main Motor Power
|
|
SJ-25
|
5-10kg/h
|
10-110r/min
|
2.2kw
|
|
SJ-30
|
10-20kg/h
|
10-110r/min
|
3kw
|
|
SJ-35
|
20-30kg/h
|
10-90r/min
|
4kw
|
|
SJ-45
|
30-50kg/h
|
10-90r/min
|
7.5/11kw
|
|
SJ-50
|
50-80kg/h
|
10-90r/min
|
15-22kw
|
|
SJ-65
|
80-120kg/h
|
10-90r/min
|
30-45kw
|
|
SJ-75
|
120-150kg/h
|
10-90r/min
|
37-75kw
|
|
SJ-90
|
150-200kg/h
|
10-90r/min
|
45-110kw
|
|
SJ-120
|
200-300kg/h
|
10-90r/min
|
75-160kw
|
|
SJ-150
|
300-400kg/h
|
10-90r/min
|
110-185kw
|
|
SJ-200
|
500-600kg/h
|
10-90r/min
|
132-280kw
|
