High Efficiency Plastic Mixture Machine PVC / PE / PP Heating Cooling Mixer

High Efficiency Plastic Mixture Machine PVC / PE / PP Heating Cooling Mixer
High Efficiency Plastic Mixture Machine PVC / PE / PP Heating Cooling Mixer High Efficiency Plastic Mixture Machine PVC / PE / PP Heating Cooling Mixer High Efficiency Plastic Mixture Machine PVC / PE / PP Heating Cooling Mixer High Efficiency Plastic Mixture Machine PVC / PE / PP Heating Cooling Mixer High Efficiency Plastic Mixture Machine PVC / PE / PP Heating Cooling Mixer

Large Image :  High Efficiency Plastic Mixture Machine PVC / PE / PP Heating Cooling Mixer

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: BS-SHR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film packing and pallet fixed on the machine bottom
Delivery Time: 20 working days
Payment Terms: L/C, D/P,, T/T, Western Union
Supply Ability: 150 Sets per year
Detailed Product Description
Material: UPVC/CPVC/OPVC/PE/PP/MB/CORBON Model: Heating Mixer,heating Cooling Mixer, Cooling Mixer
Mixer Model: BS-SRL-Z300/600 Heating Mixermotor Power: 55Kw
Cooling Mixer Motor Power: 7.5Kw Inverter Brand: ABB
Temperature Control Brand: OMRON Capacity: 720Kg/h
High Light:

industrial mixer machine

,

plastic mixture machine

Plastic mixing machine high speed PVC/PE/PP heating cooling mixer



Application:

Plastic mixer is one of the most widely used and well-modified plastic processing equipments in plastics, pharmaceuticals, dyes and other industries. Such as plastic modified coloring, resin, color masterbatch and calcium carbonate additives, polytetrafluoroethylene (Teflon) filled masterbatch, etc., is one of the necessary equipment for profiles, pipes, building materials, chemicals and other industries.



Plastic mixer features:

A1: The main shaft seal adopts PTFE seal sleeve, skeleton oil seal and air pressure three-way seal to ensure no leakage.
A2. A plane bearing specially designed to withstand the axial force is added to the rotating structure of the main shaft, thereby avoiding the premature damage of the upper end bearing simultaneously bearing the radial force and the axial force, thereby greatly prolonging the service life of the machine.
A3. The bearing is installed with a special heating installation tool to ensure that the inner and outer rings of the bearing move at the same time. The conventional method of hammering the outer ring or the inner ring of the bearing is avoided, so that the ball is stressed during the assembly process and the bearing life is severely shortened.
A4. The design of the discharge part structure is designed according to the characteristics of the solid material. The installation of the discharge air blowing device overcomes the shortcomings of the traditional liquid design and avoids the defects of easy leakage.
A5. Both the paddle and the pulley pass the balance test, so that the machine runs without vibration.
A6. Hot mixing has a heating function of self-friction and electric heating.
A7. The lid is double-sealed and not leaking. The shear-sensitive crystalline powder is mixed in batches and the liquid is mixed into the solid.
A8. The discharge valve is plugged with a plunger type. The inner surface of the door block is closely matched with the inner wall of the container, and there is no dead zone of the mixture, so that the materials are evenly mixed.
A9: The cold machine blades use large angled blades to force the material to rise along the inner wall of the container and return to the cooling jacket for cooling purposes.
A10: Optional variable frequency speed regulation to protect the motor and power supply line, while saving 20-25%.



Details specification pictures of Plastic mixing machine:

High Efficiency Plastic Mixture Machine PVC / PE / PP Heating Cooling Mixer 0

High Efficiency Plastic Mixture Machine PVC / PE / PP Heating Cooling Mixer 1

High Efficiency Plastic Mixture Machine PVC / PE / PP Heating Cooling Mixer 2

High Efficiency Plastic Mixture Machine PVC / PE / PP Heating Cooling Mixer 3



Technical date of Plastic mixing machine:

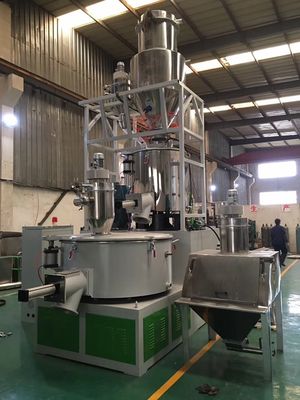

Vertical type:

Model SRL-Z100/200 SRL-Z200/500 SRL-Z300/600 SRL-Z500/1000 SRL-Z800/1600
Total volume 100/200 200/500 300/600 500/1000 800/1600
Effective volume 75/160 150/320 225/400 375/650 600/1050
Blade rotation speed 650/130/180 475/950/130 475/950/60 430/860/60 370/740/50
Heat-cooling method Electric/self-friction/water cooling
Mixing time 6-10 6-10 6-10 6-10 8-12
Motor power 14/22/7.5 30/42/7.5 40/55/11 55/75/11 110/30

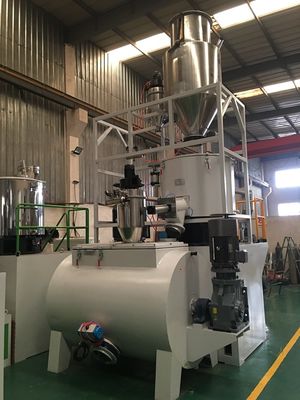

Horizontal type:

Model SRL-W500/1600 SRL-W800/2000 SRL-W800/2500 SRL-W800*2/4000
Total volume 500/1600 800/2000 800/2500 1600/4000
Effective volume 330/1000 560/1400 600/1500 1120/2700
Blade rotation speed 430/860/70 330/660/55 330/660/60 350/700/65
Heating/cooling manner Self-friction/water cooling
Mixed time(min) 8-12 8-12 8-12 8-12



BEISU Machinery:

BEISU machinery and equipment recommendation: PVC/PE/PP pipe production line, PVC/PE wood plastic production line, PVC profile/profile production line, PVC/PP/PE/ABS sheet/sheet production line, PVC edge band production line and mill, High-speed mixer (group), crusher, sharpener, shredder, tractor, winder, cutting machine and other plastic auxiliary machinery.



Why choose BEISU Machinery:
A1: Plant construction, renovation plan, pipeline laying plan in the plant, construction plan of circulating cooling pool, etc.;

A2: Supply of raw materials, transformers, air compressors and other procurement plans;

A3: Provide relevant raw material specific formula, high quality raw material suppliers, raw material cost accounting, etc. ;

A4: Installation equipment, commissioning equipment, training staff, and provide technical support throughout the year;

A5: BEISU company has a plastics industry engineering alliance nationwide, in the case of distance, can provide relevant talents in your company year-round work, as a technology backing.
