UPVC / CPVC / OPVC Powder Plastic Mixer Machine Long Life Blades SS304

Certification
China Zhangjiagang Beisu Machinery Co., Ltd. certification
China Zhangjiagang Beisu Machinery Co., Ltd. certification
The quality of the machine of Beisu Machinery is very stable, the output is high, the details are very user friendly, and they provide a quick response when we need service.

—— Ahmed Zeitoun

The quality of the high speed mixer produced by Beisu Machinery is outstanding. We have ordered 3 sets of equipment and they are all in use. Maria provides our professional and prompt after sales service.

—— Adrew

I'm Online Chat Now

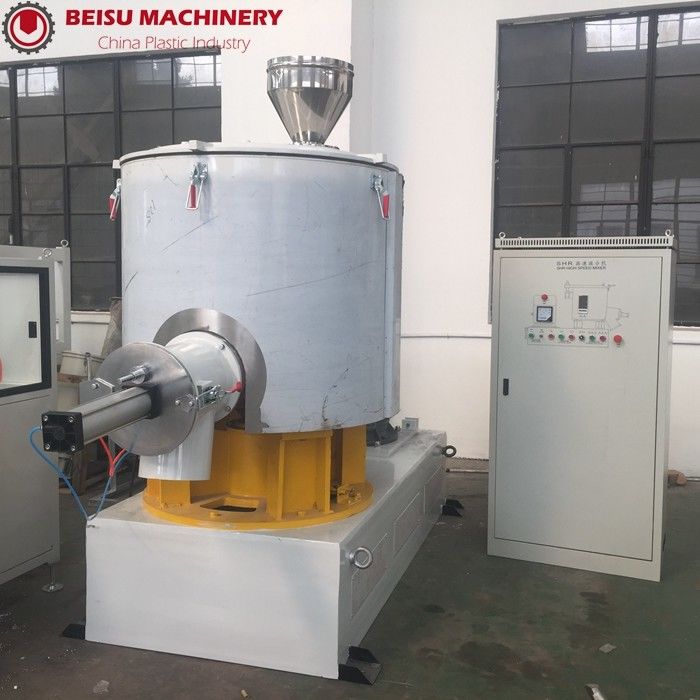

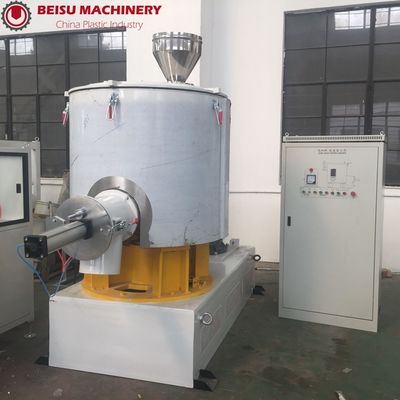

UPVC / CPVC / OPVC Powder Plastic Mixer Machine Long Life Blades SS304

UPVC / CPVC / OPVC Powder Plastic Mixer Machine Long Life Blades SS304
UPVC / CPVC / OPVC Powder Plastic Mixer Machine Long Life Blades SS304 UPVC / CPVC / OPVC Powder Plastic Mixer Machine Long Life Blades SS304 UPVC / CPVC / OPVC Powder Plastic Mixer Machine Long Life Blades SS304

Large Image :  UPVC / CPVC / OPVC Powder Plastic Mixer Machine Long Life Blades SS304

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: BS-SHR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film packing and pallet fixed on the machine bottom
Delivery Time: 35 working days
Payment Terms: L/C, D/P,, T/T, Western Union
Supply Ability: 150 Sets per year
Detailed Product Description
Material: UPVC/CPVC/OPVC/PE/PP/MB/CORBON Model: Heating Mixer,heating Cooling Mixer, Cooling Mixer
Mixer Model: SHR-800 Heating Mixermotor Power: 110Kw
Inverter Brand: ABB Temperature Control Brand: OMRON
Capacity: 1400Kg/h
High Light:

industrial mixer machine

,

plastic mixture machine

SHR-800L UPVC/CPVC/OPVC powder mixing machine for pipe profile



Application:

SHR series mixers suitable for plastic,rubber,chemical and food industry, for powder or granulate material blending,coloring and drying. Typical application includes:&Production of PVC dry blend, filling and modification of plastics,pre-mixing of compounding process and premix of wood-plastic composites.



Main Features:

- Static and dynamic balance are done for blades & wheels.

- The mixer lid is double sealed and opened in pneumatic way.

- The electric control system uses RKC, Siemens, Mitsubishi, Omron,ABB ect.

- Deflector to influences the flow.

- Double seal for main shaft to preventing powder infiltrate into bearing.

- SS304 Vessel highly polished surface inside. (wall thickness 6mm,bottom thickness 8 mm)

- Twin jacket with thermal insulation(heat transfer oils optional)

- Heating Blades with self cleaning adjustable in height specific to the material.

- Long life blades ss304( nitrogen and carbonization treatment optional)



Optional features:

-PLC control with vacuum loader(SIEMENS PLC)

-Frequency inverter or soft start.(ABB,MISUBISHI,ROBINCON)

-Pulse dust collector and simple(semi-auto) loading system.

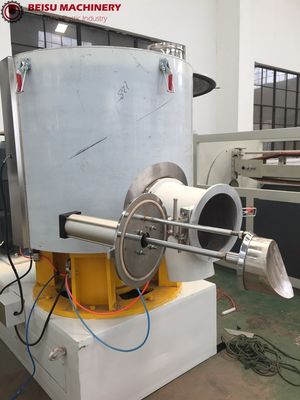

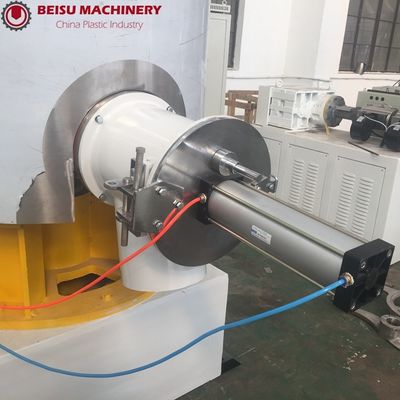

Details specification pictures mixer:

UPVC / CPVC / OPVC Powder Plastic Mixer Machine Long Life Blades SS304 0UPVC / CPVC / OPVC Powder Plastic Mixer Machine Long Life Blades SS304 1UPVC / CPVC / OPVC Powder Plastic Mixer Machine Long Life Blades SS304 2



Technical date:

Model Total volume Available capacity Motor power Shaft speed Heating method
SHR-5A 5L 3L 1.1Kw 1400rpm Self friction/electric
SHR-10A 10L 7L 3Kw 2000rpm
SHR-25A 25L 20L 5.5Kw 1440rpm
SHR-50A 50L 35L 7/11Kw 750/1500rpm
SHR-100A 100L 75L 14/22Kw 650/1300rpm
SHR-200A 200L 150L 30/42Kw 475/950rpm
SHR-300A 300L 225L 40/55Kw 475/950rpm
SHR-500A 500L 375L 47/67Kw 430/860rpm
SHR-800A 800L 600L 60/90Kw 370/740rpm
SHR-1000A 1000L 750L 83/110Kw 350/700rpm



BEISU Machinery:

BEISU machinery and equipment recommendation: PVC/PE/PP pipe production line, PVC/PE wood plastic production line, PVC profile/profile production line, PVC/PP/PE/ABS sheet/sheet production line, PVC edge band production line and mill, High-speed mixer (group), crusher, sharpener, shredder, tractor, winder, cutting machine and other plastic auxiliary machinery.



Why choose BEISU Machinery:
A1: Plant construction, renovation plan, pipeline laying plan in the plant, construction plan of circulating cooling pool

A2: Supply of raw materials, transformers, air compressors and other procurement plans

A3: Provide relevant raw material specific formula, high quality raw material suppliers, raw material cost accounting

A4: Installation equipment, commissioning equipment, training staff, and provide technical support throughout the year

A5: BEISU company has a plastics industry engineering alliance nationwide, in the case of distance, can provide relevant talents in your company year-round work, as a technology backing
