Stainless Steel Plastic Blender , Plastic Mixer Machine For Chemical Industry

Certification
China Zhangjiagang Beisu Machinery Co., Ltd. certification
China Zhangjiagang Beisu Machinery Co., Ltd. certification
The quality of the machine of Beisu Machinery is very stable, the output is high, the details are very user friendly, and they provide a quick response when we need service.

—— Ahmed Zeitoun

The quality of the high speed mixer produced by Beisu Machinery is outstanding. We have ordered 3 sets of equipment and they are all in use. Maria provides our professional and prompt after sales service.

—— Adrew

I'm Online Chat Now

Stainless Steel Plastic Blender , Plastic Mixer Machine For Chemical Industry

Stainless Steel Plastic Blender , Plastic Mixer Machine For Chemical Industry
Stainless Steel Plastic Blender , Plastic Mixer Machine For Chemical Industry Stainless Steel Plastic Blender , Plastic Mixer Machine For Chemical Industry Stainless Steel Plastic Blender , Plastic Mixer Machine For Chemical Industry Stainless Steel Plastic Blender , Plastic Mixer Machine For Chemical Industry Stainless Steel Plastic Blender , Plastic Mixer Machine For Chemical Industry

Large Image :  Stainless Steel Plastic Blender , Plastic Mixer Machine For Chemical Industry

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: BS-SHR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film packing and pallet fixed on the machine bottom
Delivery Time: 20 working days
Payment Terms: L/C, D/P,, T/T, Western Union
Supply Ability: 150 Sets per year
Detailed Product Description
Material: UPVC/CPVC/OPVC/PE/PP/MB/CORBON Model: Heating Mixer,heating Cooling Mixer, Cooling Mixer
Mixer Model: SHR-300 Heating Mixermotor Power: 45/75/90/110/160/200/250Kw
Inverter Brand: ABB Temperature Control Brand: OMRON
Capacity: 3600Kg/h
High Light:

industrial mixer machine

,

high speed mixer machine

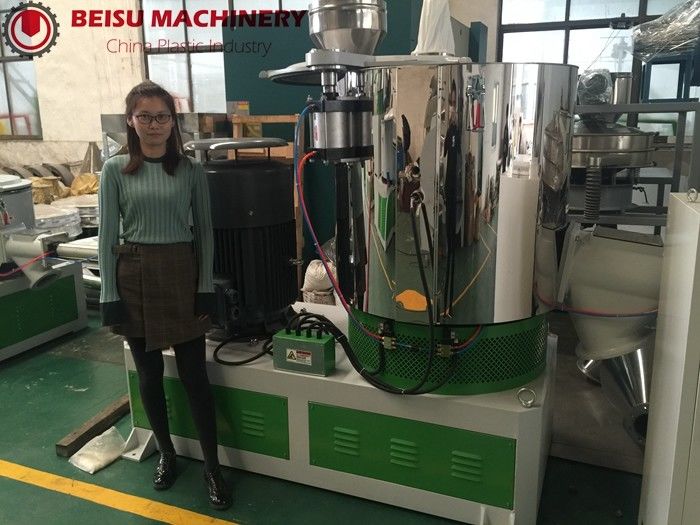

SHR -300L Stainless Steel Plastic Blender Mixing Machine For Chemical Industry

Application:
High-speed mixer is mainly used for mixing, stirring, drying, coloring, primary plasticization and other materials of plastics, building materials, chemical pigments, rubber and other industries.

Features:
Gelation hot mixing of the PVC blendstock is also the process of gelling the PVC blendstock. Unmixed PVC resin has different particle sizes and small particles at normal temperature, and it is easy to cause plasticization unevenness during extrusion molding. In the hot mixing process, the PVC resin is gradually melted, plasticized, and recrystallized to form a network morphology structure. From normal temperature to below 50 °C, after the PVC agglomerated powder and larger particles are rubbed and impacted, although the apparent density does not change much, the large stacked particles are sheared and broken into small particles, and After absorption of thermal energy and mechanical energy, the activity increases, and gradually combines with other particles, and the particle size increases. When the material temperature is below 90 °C, the temperature increase rate of the mixer is faster, then the temperature rises slowly, and the diffusion, shearing and convection effects are more severe. When the material temperature reaches 115 ° C, the small particles of PVC resin become large and uniform, the small particles gradually disappear, and the edge of the particles becomes transparent due to partial gelation. Under certain conditions, the degree of gelation of the PVC resin particles is Determined by the discharge temperature. When the feed temperature reaches 120 ° C, the PVC particles tend to be stable and the degree of gelation is increased. The particles in the whole hot mixing process are repeatedly combined and homogenized, the particle size is increased, and the densification is achieved, so that the apparent density of the PVC particles reaches a maximum value, which is beneficial to increase the extrusion yield, promote the uniform plasticization of the material, and improve the PVC profile. Welding strength, impact properties and other properties. The PVC dry mixed powder with good uniformity and good dry flow can be observed that the PVC resin has the characteristics of grain refinement and uniform particle size change, and exhibits high apparent density and partial gelation. The temperature of the hot mixed material and the temperature of the hot mixed material determine the process of uniform plasticization of the PVC material. The hot mixing temperature is too low, the PVC material is not plasticized unevenly, which affects the performance of the PVC profile; the hot mixing temperature is too high, the PVC material is prone to degradation in the mixing tank, and even the “paste” affects the production, so in general, the large Some PVC profile manufacturers use 120 °C as the rated temperature index for hot mixing. When the amount of calcium carbonate is large, the temperature of the hot mixed material can be appropriately increased to facilitate the balanced adsorption of calcium carbonate and the apparent density of the PVC material and the low melting point component. In addition to the hot mixing time, the hot mixing time needs to be controlled. It is also necessary to pay close attention to the hot mixing time in order to monitor the discharge temperature control. When continuous mixing, if the hot mixing reaches the discharge time is short (such as less than 7min, the interval between batches should be extended; when the mixer is used for a long time, if the temperature rises too slowly (such as less than 12min still can not reach Discharge temperature), can be unloaded in time, carefully check whether the thermocouple or thermometer indicates failure, and handle it. When the mixer blade is found to be seriously worn, it should be replaced in time to prevent the quality of the mixture from being affected. When the mixing time exceeds 2 times the normal mixing time or the wear of the blade ends is greater than 15 mm, the blade should be replaced.

Details specification pictures mixer:
Stainless Steel Plastic Blender , Plastic Mixer Machine For Chemical Industry 0Stainless Steel Plastic Blender , Plastic Mixer Machine For Chemical Industry 1Stainless Steel Plastic Blender , Plastic Mixer Machine For Chemical Industry 2Stainless Steel Plastic Blender , Plastic Mixer Machine For Chemical Industry 3Stainless Steel Plastic Blender , Plastic Mixer Machine For Chemical Industry 4

Technical date:

Model Total volume Available capacity Motor power Shaft speed Heating method
SHR-5A 5L 3L 1.1Kw 1400rpm Self friction/electric
SHR-10A 10L 7L 3Kw 2000rpm
SHR-25A 25L 20L 5.5Kw 1440rpm
SHR-50A 50L 35L 7/11Kw 750/1500rpm
SHR-100A 100L 75L 14/22Kw 650/1300rpm
SHR-200A 200L 150L 30/42Kw 475/950rpm
SHR-300A 300L 225L 40/55Kw 475/950rpm
SHR-500A 500L 375L 47/67Kw 430/860rpm
SHR-800A 800L 600L 60/90Kw 370/740rpm
SHR-1000A 1000L 750L 83/110Kw 350/700rpm


BEISU Machinery:
BEISU machinery and equipment recommendation: PVC/PE/PP pipe production line, PVC/PE wood plastic production line, PVC profile/profile production line, PVC/PP/PE/ABS sheet/sheet production line, PVC edge band production line and mill, High-speed mixer (group), crusher, sharpener, shredder, tractor, winder, cutting machine and other plastic auxiliary machinery.

Why choose BEISU Machinery:
A1: Plant construction, renovation plan, pipeline laying plan in the plant, construction plan of circulating cooling pool
A2: Supply of raw materials, transformers, air compressors and other procurement plans
A3: Provide relevant raw material specific formula, high quality raw material suppliers, raw material cost accounting
A4: Installation equipment, commissioning equipment, training staff, and provide technical support throughout the year
A5: BEISU company has a plastics industry engineering alliance nationwide, in the case of distance, can provide relevant talents in your company year-round work, as a technology backing
