SHR -1000L Plastic Powder PVC Electric Heating Mixer Machine For Road Buffer

Certification
China Zhangjiagang Beisu Machinery Co., Ltd. certification
China Zhangjiagang Beisu Machinery Co., Ltd. certification
The quality of the machine of Beisu Machinery is very stable, the output is high, the details are very user friendly, and they provide a quick response when we need service.

—— Ahmed Zeitoun

The quality of the high speed mixer produced by Beisu Machinery is outstanding. We have ordered 3 sets of equipment and they are all in use. Maria provides our professional and prompt after sales service.

—— Adrew

I'm Online Chat Now

SHR -1000L Plastic Powder PVC Electric Heating Mixer Machine For Road Buffer

SHR -1000L Plastic Powder PVC Electric Heating Mixer Machine For Road Buffer
SHR -1000L Plastic Powder PVC Electric Heating Mixer Machine For Road Buffer SHR -1000L Plastic Powder PVC Electric Heating Mixer Machine For Road Buffer SHR -1000L Plastic Powder PVC Electric Heating Mixer Machine For Road Buffer SHR -1000L Plastic Powder PVC Electric Heating Mixer Machine For Road Buffer SHR -1000L Plastic Powder PVC Electric Heating Mixer Machine For Road Buffer SHR -1000L Plastic Powder PVC Electric Heating Mixer Machine For Road Buffer

Large Image :  SHR -1000L Plastic Powder PVC Electric Heating Mixer Machine For Road Buffer

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: BS-SHR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film packing and pallet fixed on the machine bottom
Delivery Time: 20 working days
Payment Terms: L/C, D/P,, T/T, Western Union
Supply Ability: 150 Sets per year
Detailed Product Description
Material: UPVC/CPVC/OPVC/PE/PP/MB/CORBON Model: Heating Mixer,heating Cooling Mixer, Cooling Mixer
Mixer Model: SHR-00 Heating Mixermotor Power: 45/75/90/110/160/200/250Kw
Inverter Brand: ABB Temperature Control Brand: OMRON
Capacity: 3600Kg/h
High Light:

industrial mixer machine

,

high speed mixer machine



SHR-1000L Plastic powder PVC electric heating mixer machine for road buffer



Application:

It is used in the process of compounding, mixing, drying and coloring of various plastics. It is the most ideal equipment for profile and pipe manufacturers.



Features:

The inverse calculation of the energy consumption of the high-speed mixer material during the actual production operation process may be related to the complexity of the mixture, the material characteristics and other factors. The value that Jianuo Machinery introduces to you here is only for reference. The mixing and drying process of materials is inevitable for every plastics processing industry. At the same time, this process is also very important in order to produce high standards of high quality and high requirements. Choosing a reasonable blending and drying technology helps to save costs and reduce energy consumption. The correct evaluation of mixing technology and cost is of great significance for the selection of suitable mixing equipment.
In general, the temperature of the material to be adsorbed by the high-speed mixer is related to the moisture content. Generally, a melting point of less than or equal to 40 ° C allows the mixture to achieve a moisture carrying capacity of 0.03%. In order to prepare a mixed agitation drying gas, the theoretical energy demand value calculated from the energy is 0.054 kWh/m2. In practical applications, this value is relatively high, because the calculation does not take into account the leakage of the material during the mixing process or the loss of the heat exhaust port. By comparison, the physical properties of volatilization of different types of SHR high-speed mixer gases are still relatively accurate in this way. In general, the energy consumption of PVC high-speed mixers is between 0.054 kW/kg and 0.30 kWh/kg, which is judged by the change of the initial moisture content of materials and materials. In actual operation, the energy required to mix the powder material consists of two parts, one is the set temperature required to heat the material from the friction barrel to the temperature by friction, and the other part is double heating by self-friction electric heating. In determining the amount of gas required to volatilize the material, it is usually based on the temperature at which the mixing gas enters or exits the high speed mixing drum. There is also a certain convection process in which the mixed air at a certain temperature transfers heat to the powder by convection.

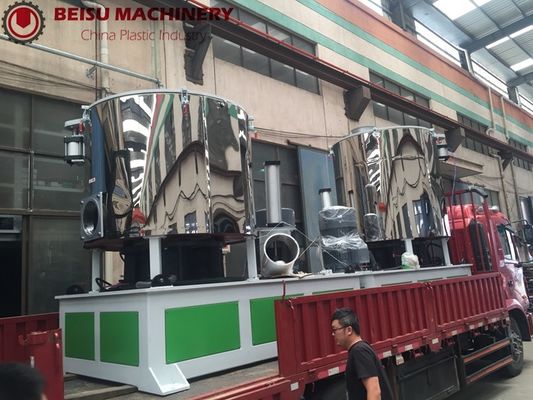

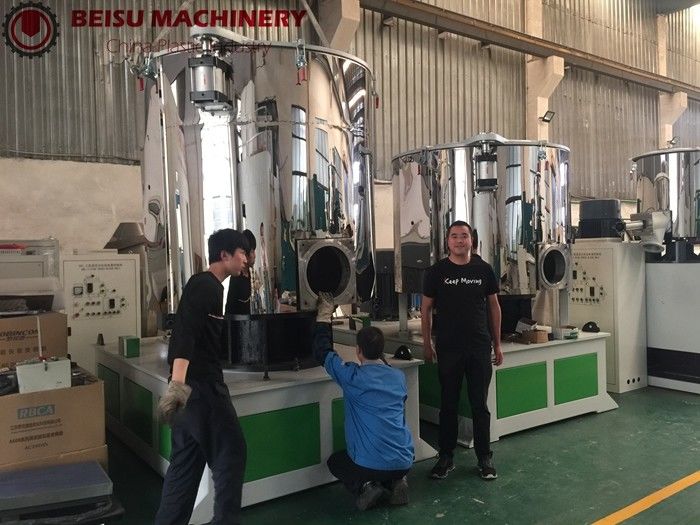

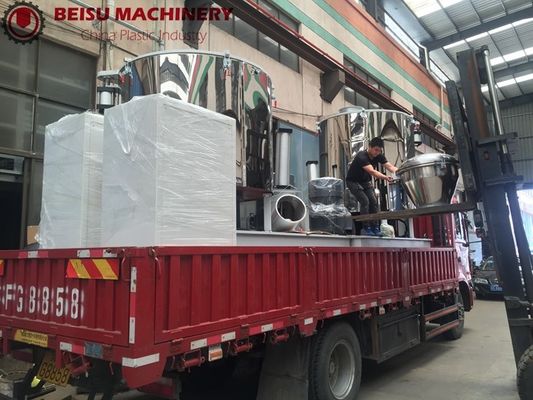

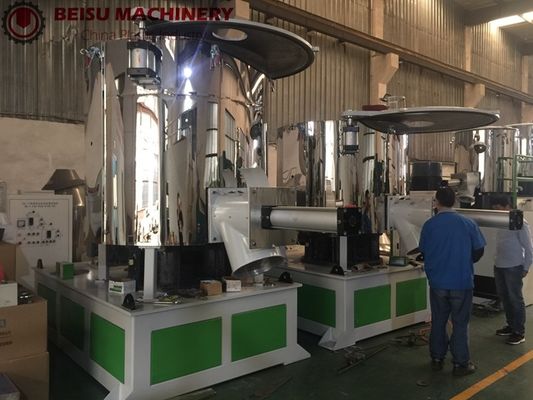

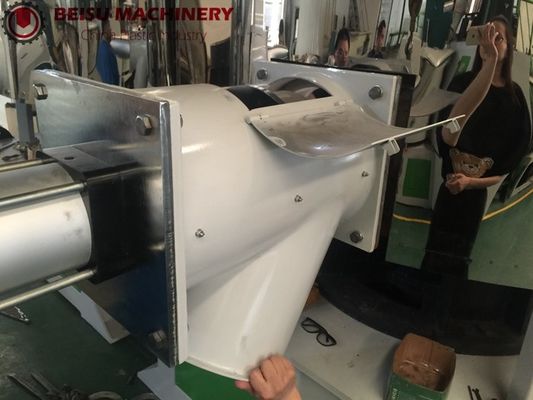

Details specification pictures mixer:

SHR -1000L Plastic Powder PVC Electric Heating Mixer Machine For Road Buffer 0SHR -1000L Plastic Powder PVC Electric Heating Mixer Machine For Road Buffer 1SHR -1000L Plastic Powder PVC Electric Heating Mixer Machine For Road Buffer 2SHR -1000L Plastic Powder PVC Electric Heating Mixer Machine For Road Buffer 3SHR -1000L Plastic Powder PVC Electric Heating Mixer Machine For Road Buffer 4



Technical date:

Model Total volume Available capacity Motor power Shaft speed Heating method
SHR-5A 5L 3L 1.1Kw 1400rpm Self friction/electric
SHR-10A 10L 7L 3Kw 2000rpm
SHR-25A 25L 20L 5.5Kw 1440rpm
SHR-50A 50L 35L 7/11Kw 750/1500rpm
SHR-100A 100L 75L 14/22Kw 650/1300rpm
SHR-200A 200L 150L 30/42Kw 475/950rpm
SHR-300A 300L 225L 40/55Kw 475/950rpm
SHR-500A 500L 375L 47/67Kw 430/860rpm
SHR-800A 800L 600L 60/90Kw 370/740rpm
SHR-1000A 1000L 750L 83/110Kw 350/700rpm



BEISU Machinery:

BEISU machinery and equipment recommendation: PVC/PE/PP pipe production line, PVC/PE wood plastic production line, PVC profile/profile production line, PVC/PP/PE/ABS sheet/sheet production line, PVC edge band production line and mill, High-speed mixer (group), crusher, sharpener, shredder, tractor, winder, cutting machine and other plastic auxiliary machinery.



Why choose BEISU Machinery:
A1: Plant construction, renovation plan, pipeline laying plan in the plant, construction plan of circulating cooling pool

A2: Supply of raw materials, transformers, air compressors and other procurement plans

A3: Provide relevant raw material specific formula, high quality raw material suppliers, raw material cost accounting

A4: Installation equipment, commissioning equipment, training staff, and provide technical support throughout the year

A5: BEISU company has a plastics industry engineering alliance nationwide, in the case of distance, can provide relevant talents in your company year-round work, as a technology backing
