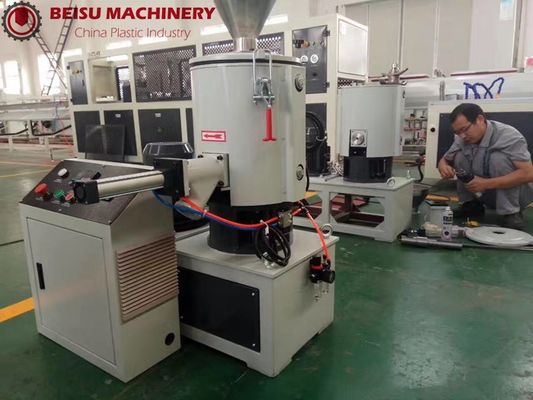

SHR-50L Small PVC Resin Mixer , High Speed Mixer Machine OMRON Temperature Control

Certification
China Zhangjiagang Beisu Machinery Co., Ltd. certification
China Zhangjiagang Beisu Machinery Co., Ltd. certification
The quality of the machine of Beisu Machinery is very stable, the output is high, the details are very user friendly, and they provide a quick response when we need service.

—— Ahmed Zeitoun

The quality of the high speed mixer produced by Beisu Machinery is outstanding. We have ordered 3 sets of equipment and they are all in use. Maria provides our professional and prompt after sales service.

—— Adrew

I'm Online Chat Now

SHR-50L Small PVC Resin Mixer , High Speed Mixer Machine OMRON Temperature Control

SHR-50L Small PVC Resin Mixer , High Speed Mixer Machine OMRON Temperature Control
SHR-50L Small PVC Resin Mixer , High Speed Mixer Machine OMRON Temperature Control SHR-50L Small PVC Resin Mixer , High Speed Mixer Machine OMRON Temperature Control SHR-50L Small PVC Resin Mixer , High Speed Mixer Machine OMRON Temperature Control

Large Image :  SHR-50L Small PVC Resin Mixer , High Speed Mixer Machine OMRON Temperature Control

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: BS-SHR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film packing and pallet fixed on the machine bottom
Delivery Time: 20 working days
Payment Terms: L/C, D/P,, T/T, Western Union
Supply Ability: 150 Sets per year
Detailed Product Description
Material: UPVC/CPVC/OPVC/PE/PP/MB/CORBON Model: Heating Mixer,heating Cooling Mixer, Cooling Mixer
Mixer Model: SHR-50 Heating Mixermotor Power: 11Kw
Inverter Brand: ABB Temperature Control Brand: OMRON
Capacity: 120Kg/h
High Light:

industrial mixer machine

,

high speed mixer machine

SHR-50L small pvc resin mixer for plastic film extrusion machine



Application:

It is suitable for the mixing of plastics, resins, rubber, color masterbatch and calcium carbonate additives. It uses double 3-layer coulter structure to stir the blades and rotate at high speed to form high-efficiency convection mixing, shearing, even mixing, no dead angle, no residue, 3 Mix one pot in 8 minutes.



Structure:

A1: Motor: 100% copper wire motor, high and low speed, low speed start, high speed operation; or variable frequency start!
A2: pot body: 304 stainless steel casting pot body, thickness 8mm, once cast molding;
A3: paddle: bovine knife / turbine blade, 304 stainless steel casting;
A4: heating system: double-layer oil storage bin, electric heating, wrapped with stainless steel heating plate thermal insulation layer;
A5: Base: thickened welding plate, durable and durable;
A6: Transmission system: high-strength V-belt, belt pulley, NSK bearing



Features:

A1: The lid and the three-way device are all made of ZL102 aluminum casting, the double-layer silicone sealing ring of the lid is pneumatically opened; the dust filter is arranged on the top of the lid; the dust filtering and ventilation function is realized, the dust is flying without dust, no material waste
A2: The pot body is casted in whole stainless steel, and the joints are designed with circular arc. There is no hidden material and no dead angle.
A3: Different types of blades (cattle/turbine blades) or side slurry can be selected according to different material characteristics. The blades are refined by dynamic and static balance test to achieve the desired mixing effect.
A4: Unloading can be controlled by temperature/time automatic pneumatic control or manual control.
A5: Electrical control can be used for brand-name Zhengtai, Siemens, Schneider and other electrical components (optional).
A6: Optional frequency converter or heating system.
A7:There are self-friction and electric heating, oil heating and other heating methods. Heating temperature 15-260 degrees can be set.



Details specification pictures mixer:

SHR-50L Small PVC Resin Mixer , High Speed Mixer Machine OMRON Temperature Control 0SHR-50L Small PVC Resin Mixer , High Speed Mixer Machine OMRON Temperature Control 1SHR-50L Small PVC Resin Mixer , High Speed Mixer Machine OMRON Temperature Control 2

SHR-50L Small PVC Resin Mixer , High Speed Mixer Machine OMRON Temperature Control 3



Technical date:

Model Capacity(L)

Effective

Capacity(L)

Motor Power(KW) Main shaft Speed(rpm) Heating Method Discharging Method
SHR-5A 5 3 1.1 1400 Self-friction Hand work
SHR-10A 10 7 3 2000
SHR-50A 50 35 7/11 750/1500 Electricy steam Pneumatics
SHR-100A 100 75 14/22 650/1300
SHR-200A 200 150 30/42 475/950
SHR-300A 300 225 40/55 475/950
SHR-500A 500 375 47/67 430/860
SHR-800A 800 600 83/110 370/740
SHR-200C 200 150 30/42 650/1300 Self-friction Pneumatics



BEISU Machinery:

BEISU machinery and equipment recommendation: PVC/PE/PP pipe production line, PVC/PE wood plastic production line, PVC profile/profile production line, PVC/PP/PE/ABS sheet/sheet production line, PVC edge band production line and mill, High-speed mixer (group), crusher, sharpener, shredder, tractor, winder, cutting machine and other plastic auxiliary machinery.



Why choose BEISU Machinery:
A1: Plant construction, renovation plan, pipeline laying plan in the plant, construction plan of circulating cooling pool

A2: Supply of raw materials, transformers, air compressors and other procurement plans

A3: Provide relevant raw material specific formula, high quality raw material suppliers, raw material cost accounting

A4: Installation equipment, commissioning equipment, training staff, and provide technical support throughout the year

A5: BEISU company has a plastics industry engineering alliance nationwide, in the case of distance, can provide relevant talents in your company year-round work, as a technology backing
