PVC / PE / PP Plastic Mixer Machine SHR-100L 650 / 1300rpm Main Shaft Speed

PVC / PE / PP Plastic Mixer Machine SHR-100L 650 / 1300rpm Main Shaft Speed
PVC / PE / PP Plastic Mixer Machine SHR-100L 650 / 1300rpm Main Shaft Speed PVC / PE / PP Plastic Mixer Machine SHR-100L 650 / 1300rpm Main Shaft Speed PVC / PE / PP Plastic Mixer Machine SHR-100L 650 / 1300rpm Main Shaft Speed

Large Image :  PVC / PE / PP Plastic Mixer Machine SHR-100L 650 / 1300rpm Main Shaft Speed

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: BS-SHR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film packing and pallet fixed on the machine bottom
Delivery Time: 20 working days
Payment Terms: L/C, D/P,, T/T, Western Union
Supply Ability: 150 Sets per year
Detailed Product Description
Material: UPVC/CPVC/OPVC/PE/PP/MB/CORBON Model: Heating Mixer,heating Cooling Mixer, Cooling Mixer
Mixer Model: SHR-100 Heating Mixermotor Power: 22Kw
Inverter Brand: ABB Temperature Control Brand: OMRON
Capacity: 200Kg/h
High Light:

industrial mixer machine

,

plastic mixture machine

SHR-100L industrial mixer machine PVC/PE/PP plastic mixture machine



High-speed mixer application range:
The high-speed mixer is especially suitable for efficient and uniform mixing of solid-liquid, solid-powder, powder-powder and powder-liquid. Discharge valve: ball valve, butterfly valve, gate valve can be selected for high-speed mixer products are widely used in fine chemicals, feed, electronics, food, hard materials, ceramic materials, biology, medicine, non-metallic mining, building materials, coatings, Better mixing of dyes, fertilizers and metal powders. The shear-sensitive crystalline powder is mixed in batches and the liquid is mixed into the solid.



Main structure description:
The mixer is different from the pelletizer. It consists of seven parts: the frame, the transmission, the pot body, the lifting and lowering, the discharge port and the electric control box. The whole machine adopts a closed structure, which is reasonable and beautiful. The pot body is made of stainless steel, the inner surface is extremely smooth and hard, and it is wear-resistant, corrosion-resistant and difficult to stick. The mixer body has a heating sleeve and a resistance heating coil. The temperature is transmitted to the pot body through the high-flame point heat-conducting oil in the heating jacket, so that the pot body is evenly heated, and the temperature of the material in the pot can be controlled by adjusting the temperature. The outer layer of the jacket has asbestos insulation.



This series of high-mixer machine lids are cast from aluminum alloy. The inner surface is polished by the finishing car. After it is lifted from the cylinder, it can be rotated horizontally clockwise (rotated 70°C) in the vertical direction. The cover is filled with holes for adding resin, plasticizer and stabilizer, and venting holes. According to your own arrangements. Do not use too much force on the lid to prevent it from hitting the wall. In order to prevent the lid from being covered, the stirring slurry turns to cause personal accidents, and the motor protection is specially set.



The mixer deflector is used to enhance the mixing effect. The baffle has an approximately streamlined surface, and the baffle affects the circulating flow of the material. Its most advantageous position depends on the material to be mixed. The deflector can be freely adjusted in the pot body and can be adjusted vertically. The external clamping device fixes the baffle angle. The thermocouple is assembled in the deflector, and its connection is led out through the conduit to the terminal head, connected to the temperature meter of the electric control box, and the material temperature can be fed back to the indicator for automatic control of the discharge port. Unloading

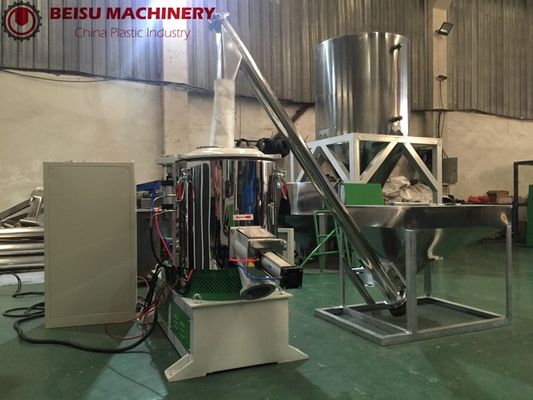

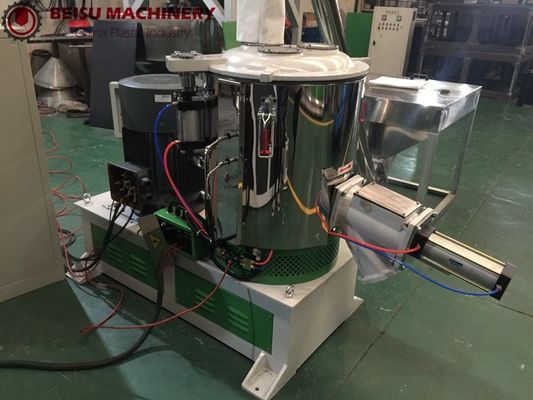

Details specification pictures mixer:

PVC / PE / PP Plastic Mixer Machine SHR-100L 650 / 1300rpm Main Shaft Speed 0PVC / PE / PP Plastic Mixer Machine SHR-100L 650 / 1300rpm Main Shaft Speed 1

PVC / PE / PP Plastic Mixer Machine SHR-100L 650 / 1300rpm Main Shaft Speed 2PVC / PE / PP Plastic Mixer Machine SHR-100L 650 / 1300rpm Main Shaft Speed 3



Technical date:

Model Capacity(L)

Effective

Capacity(L)

Motor Power(KW) Main shaft Speed(rpm) Heating Method Discharging Method
SHR-5A 5 3 1.1 1400 Self-friction Hand work
SHR-10A 10 7 3 2000
SHR-50A 50 35 7/11 750/1500 Electricy steam Pneumatics
SHR-100A 100 75 14/22 650/1300
SHR-200A 200 150 30/42 475/950
SHR-300A 300 225 40/55 475/950
SHR-500A 500 375 47/67 430/860
SHR-800A 800 600 83/110 370/740
SHR-200C 200 150 30/42 650/1300 Self-friction Pneumatics
