Two Cavity PC LED Tube Production Line Plastic Extrusion Machine Stable Extruding

Two Cavity PC LED Tube Production Line Plastic Extrusion Machine Stable Extruding
Two Cavity PC LED Tube Production Line Plastic Extrusion Machine Stable Extruding Two Cavity PC LED Tube Production Line Plastic Extrusion Machine Stable Extruding Two Cavity PC LED Tube Production Line Plastic Extrusion Machine Stable Extruding Two Cavity PC LED Tube Production Line Plastic Extrusion Machine Stable Extruding

Large Image :  Two Cavity PC LED Tube Production Line Plastic Extrusion Machine Stable Extruding

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: BS-T8
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film packing and pallet fix on the machine bottom
Delivery Time: 25 working days
Payment Terms: L/C, D/P, T/T
Supply Ability: 15 sets per month
Detailed Product Description
Material: PC/ABS Granules Size Range: T5/T8/T10/T12
Extruder Model: SJ-50/28 Motor Power: 15Kw
Vacuum Power: 2.2Kw Water Power: 3Kw
Haul Off Power: 0.75Kw Cutter Power: 1.1Kw
Inverter Brand: ABB Or Delta Temperature Control Brand: OMRON
High Light:

led lighting cover production line

,

pc tube extrusion line

PC led tube production line two cavity plastic extrusion machine for led tube



Application:

PC led tube production line make PP PE ABS PC PMMA PS profile etc . we had made machine which can make all kinds of different profiles. These profiles usage for varies in construction, decoration, ship, car, house, medical, fishing , lamp , office, transportation , electric , and other areas.



Layout:

Raw material granulator → Drying Machine → Extruder→ Vacuum Cooling Shape Table → Belt type double motor Drawing machine →Film device →Cutting Machine → Stacking Rack(final products)



Feathers:

A1:Extruder:The specially designed screw and the advanced controlling system(PID temperature controller ) ensure excellent plasticization, high output and stable extruding.


A2:Mould:Mould adopts high-quality alloy steel and throttling device to ensure even pressure of feed influent at the mould lips, and also differential action of up-down piece guarantee even thickness of the plate.


A3:Vacuum calibrating stable:Heating exchanging and cooling system of quick speed in calibrating system alternate effectively and ordinally with vacuum system, which ensures calibrating precision. Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type. Meanwhile, each line carries vacuum regulating system and vacuum display system that realize even and stable vacuum degree of plate surface.


A4:Tractor:Two motor equip for each haul off , stable air controller .


A5:Cutting machine:Accurate instant length-fixed cutting and automatic up-down discharging system combined with alloy steel sharp blade realize high quality of cutting

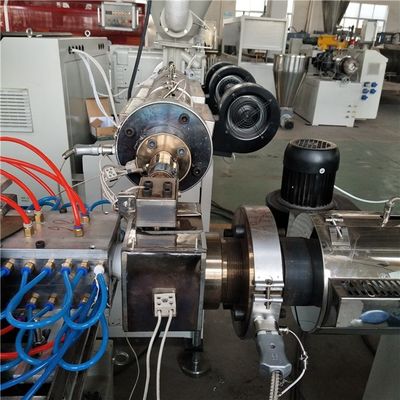

Details specification pictures of PC led lighting tube production line:

Two Cavity PC LED Tube Production Line Plastic Extrusion Machine Stable Extruding 0

Two Cavity PC LED Tube Production Line Plastic Extrusion Machine Stable Extruding 1

Two Cavity PC LED Tube Production Line Plastic Extrusion Machine Stable Extruding 2

Two Cavity PC LED Tube Production Line Plastic Extrusion Machine Stable Extruding 3

Two Cavity PC LED Tube Production Line Plastic Extrusion Machine Stable Extruding 4



Technical dates of PC led lighting tube production line:

Model Screw Dia Screw L/D Installed power Max.Capacity Weight SIZE:LXWXH
BS-50 50 25-30 30kw 20-30kgs/hr. 1500kgs 12x1.5x1.8m
BS-65 65 25-30 45kw 25-40kgs/hr. 1800kgs 14x1.5x1.8m



BEISU Machinery:

BEISU machinery and equipment recommendation: PVC/PE/PP pipe production line, PVC/PE wood plastic production line, PVC profile/profile production line, PVC/PP/PE/ABS sheet/sheet production line, PVC edge band production line and mill, High-speed mixer (group), crusher, sharpener, shredder, tractor, winder, cutting machine and other plastic auxiliary machinery.



Why choose BEISU Machinery:
A1:Plant construction, renovation plan, pipeline laying plan in the plant, construction plan of circulating cooling pool, etc.;

A2:Supply of raw materials, transformers, air compressors and other procurement plans;

A3:Provide relevant raw material specific formula, high quality raw material suppliers, raw material cost accounting, etc. ;

A4:Installation equipment, commissioning equipment, training staff, and provide technical support throughout the year;

A5:BEISU company has a plastics industry engineering alliance nationwide, in the case of distance, can provide relevant talents in your company year-round work, as a technology backing.
