T5 PC LED Tube Production Line SJ50/28 Model Single Extruder Extrusion Line

T5 PC LED Tube Production Line SJ50/28 Model Single Extruder Extrusion Line
T5 PC LED Tube Production Line SJ50/28 Model Single Extruder Extrusion Line T5 PC LED Tube Production Line SJ50/28 Model Single Extruder Extrusion Line T5 PC LED Tube Production Line SJ50/28 Model Single Extruder Extrusion Line T5 PC LED Tube Production Line SJ50/28 Model Single Extruder Extrusion Line T5 PC LED Tube Production Line SJ50/28 Model Single Extruder Extrusion Line

Large Image :  T5 PC LED Tube Production Line SJ50/28 Model Single Extruder Extrusion Line

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: BS-T5
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film packing and pallet fix on the machine bottom
Delivery Time: 25 working days
Payment Terms: L/C, D/P, T/T
Supply Ability: 15 sets per month
Detailed Product Description
Material: PC/ABS Granules Size Range: T5/T8/T10/T12
Extruder Model: SJ-50/28 Motor Power: 15Kw
Vacuum Power: 2.2Kw Water Power: 3Kw
Haul Off Power: 0.75Kw Cutter Power: 1.1Kw
Inverter Brand: ABB Or Delta Temperature Control Brand: OMRON
High Light:

pc tube extrusion line

,

pc lampshade extruder machine

T5 PC led lighting tube production line SJ50/28 single extruder extrusion line



Application:

PC lamp production line mainly produces: T5/T8/T10 fluorescent tube, LED tube (LED fluorescent tube), PC tube, transparent two-color tube, frosted tube and fluorescent lamp. The types of lamp include smooth surface, two-color, frosted, sandblasting, Light diffusion, semicircle, etc.



Layout:

Raw material+additive→Auto feeder→Dryer machine→SJ50/28 Single screw extruder→T5 led lighting mold→QY-I Haul off machine→QG-I Chipless cutting machine→stacker



PC led lighting tube production line advantage:
A1: Adopting the best online precision cutting technology in the industry, it can be cut off once in the line, no need for the second fine cutting, the cutting precision is controlled within 0.5mm, the cutting is smooth, no shavings, and the efficiency is higher.
A2: PC special screw, with good plasticizing effect, to ensure that the product has no crystal point, no trace, meet the requirements of high transmittance of customer products; no vibration marks, high transparency



PC led lighting tube production line equipment composition:
A1: Extrusion host: The main machine adopts Siemens motor drive and frequency conversion control.
A2: Mold: S-136H mirror steel, the surface of the mold is polished to the mirror surface.
A3: Three-dimensional setting table: stainless steel setting table, three-dimensional adjustment frame, providing ten-way vacuum, ten-way cooling water, vacuum pump external, the whole machine is compact and solid, no vibration.
A4: Belt tractor: surface foaming PU multi-strap tractor, belt with a limited length of 1.5 meters, high-precision frequency control, 0-15 m / min stepless adjustable.
A5: Fully automatic on-line precision cutting machine/material rack: Fully automatic on-line precision cutting machine. Due to the use of innovative cutting technology, photoelectric fixed length device and high-speed microcomputer control system, it realizes the online precision cutting problem that has not been solved in the industry. Online precision cutting accuracy is less than 0.5MM, the cutting is smooth, no dust, reducing the secondary finishing process.

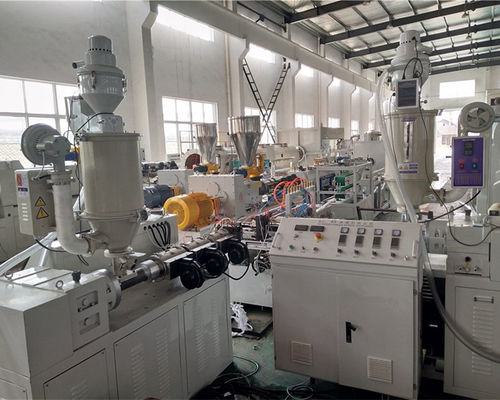

Details specification pictures of PC led lighting tube production line:

T5 PC LED Tube Production Line SJ50/28 Model Single Extruder Extrusion Line 0

T5 PC LED Tube Production Line SJ50/28 Model Single Extruder Extrusion Line 1

T5 PC LED Tube Production Line SJ50/28 Model Single Extruder Extrusion Line 2

T5 PC LED Tube Production Line SJ50/28 Model Single Extruder Extrusion Line 3

T5 PC LED Tube Production Line SJ50/28 Model Single Extruder Extrusion Line 4



Technical dates of PC led lighting tube production line:

Model Screw Dia Screw L/D Installed power Max.Capacity Weight SIZE:LXWXH
BS-50 50 25-30 30kw 20-30kgs/hr. 1500kgs 12x1.5x1.8m
BS-65 65 25-30 45kw 25-40kgs/hr. 1800kgs 14x1.5x1.8m



BEISU Machinery:

BEISU machinery and equipment recommendation: PVC/PE/PP pipe production line, PVC/PE wood plastic production line, PVC profile/profile production line, PVC/PP/PE/ABS sheet/sheet production line, PVC edge band production line and mill, High-speed mixer (group), crusher, sharpener, shredder, tractor, winder, cutting machine and other plastic auxiliary machinery.



Why choose BEISU Machinery:
A1:Plant construction, renovation plan, pipeline laying plan in the plant, construction plan of circulating cooling pool, etc.;

A2:Supply of raw materials, transformers, air compressors and other procurement plans;

A3:Provide relevant raw material specific formula, high quality raw material suppliers, raw material cost accounting, etc. ;

A4:Installation equipment, commissioning equipment, training staff, and provide technical support throughout the year;

A5:BEISU company has a plastics industry engineering alliance nationwide, in the case of distance, can provide relevant talents in your company year-round work, as a technology backing.
