Product Details:
Payment & Shipping Terms:
|
| Material: | PC/ABS Granules | Size Range: | T5/T8/T10/T12 |
|---|---|---|---|
| Extruder Model: | SJ-50/28 | Motor Power: | 15Kw |
| Vacuum Power: | 2.2Kw | Water Power: | 3Kw |
| Haul Off Power: | 0.75Kw | Cutter Power: | 1.1Kw |
| Inverter Brand: | ABB Or Delta | Temperature Control Brand: | OMRON |
| Highlight: | led lighting cover production line,pc tube extrusion line |
||
T5 Transparent lamp shade PC led tube production line for lighting profiles making
Application:
PC lamp production line mainly produces: T5/T8/T10 fluorescent tube, LED tube (LED fluorescent tube), PC tube, transparent two-color tube, frosted tube and fluorescent lamp. The types of lamp include smooth surface, two-color, frosted, sandblasting, Light diffusion, semicircle, etc.
Layout:
Raw material → Single-screw extruder →extrusion mould →vacuum calibration table → haul-off → cutter→ Stacker → finished product inspecting & packing
Specification:
| Item. | Equipment Name | Model | QTY |
| 1.1 | Automatic loader | ZJ200 | 1 set |
| 1.2 | Hopper dryer | STG-50 | 1 set |
| 1.3 | Rotary dehumidifier | 100H | 1 set |
| 2. | Single screw extruder | 45/28,55/28 ,65/28 | 1 set |
| 3. | Vacuum calibration cooling table | 2000mm | 1 set |
| 4. | Synchronous crawler type Haul-off | 2.2kw | 1 set |
| 5. | Precision Automatic cutting machine | 2.2kw | 1 set |
| 6. | PC Profile mold | according to customer | 1 set |
| 7 | Stacker | 2meters | 1 set |
PC led lighting tube production line equipment composition:
A1.PC led lighting tube production line is mainly composed of chimney profiles extrusion host . 3d electric calibrating bench , belt gazing machine .cutting machine . feeder components .
A2.PC led lighting tube production line extrusion host adopt efficient extrusion screw ,variable-frequency regulating speed technology .
A3.PC led lighting tube production lineOn the basis of various specifications of product configuration of different specification host . calibrating bench adopt stainless steel wet pan . match domestic brands vacuum pump
A4.PC led lighting tube production line drawer adopts siemens motor ,frequency conversion control ,manual or automatic electric lift belt traction cutting machine .
A5.PC led lighting tube production line adopt imported saw blade

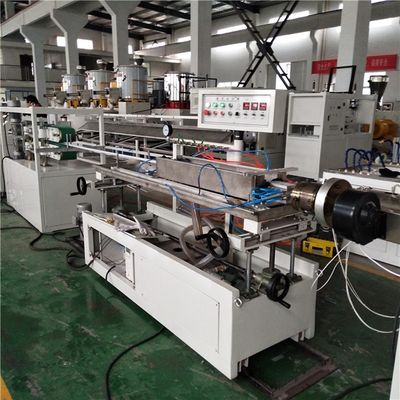

Details specification pictures of PC led lighting tube production line:
Technical dates of PC led lighting tube production line:
| Model | Screw Dia | Screw L/D | Installed power | Max.Capacity | Weight | SIZE:LXWXH |
| BS-50 | 50 | 25-30 | 30kw | 20-30kgs/hr. | 1500kgs | 12x1.5x1.8m |
| BS-65 | 65 | 25-30 | 45kw | 25-40kgs/hr. | 1800kgs | 14x1.5x1.8m |
BEISU Machinery:
BEISU machinery and equipment recommendation: PVC/PE/PP pipe production line, PVC/PE wood plastic production line, PVC profile/profile production line, PVC/PP/PE/ABS sheet/sheet production line, PVC edge band production line and mill, High-speed mixer (group), crusher, sharpener, shredder, tractor, winder, cutting machine and other plastic auxiliary machinery.
Why choose BEISU Machinery:
A1:Plant construction, renovation plan, pipeline laying plan in the plant, construction plan of circulating cooling pool, etc.;
A2:Supply of raw materials, transformers, air compressors and other procurement plans;
A3:Provide relevant raw material specific formula, high quality raw material suppliers, raw material cost accounting, etc. ;
A4:Installation equipment, commissioning equipment, training staff, and provide technical support throughout the year;
A5:BEISU company has a plastics industry engineering alliance nationwide, in the case of distance, can provide relevant talents in your company year-round work, as a technology backing.
