Product Details:
Payment & Shipping Terms:
|
| Material: | PC/ABS Granules | Size Range: | T5/T8/T10/T12 |
|---|---|---|---|
| Extruder Model: | SJ-50/28 | Motor Power: | 15Kw |
| Vacuum Power: | 2.2Kw | Water Power: | 3Kw |
| Haul Off Power: | 0.75Kw | Cutter Power: | 1.1Kw |
| Inverter Brand: | ABB Or Delta | Temperature Control Brand: | OMRON |
| Highlight: | led lighting cover production line,pc tube extrusion line |
||
Two color PC ABS led tube production line SJ55/30 extruder for LED tube light
Application:
PC led light tube production line the final PC tube is suitable to T3,T5,T8,T12, etc models LED light.is mainly used to produce fluorescent tube, LED tube, PC tube, transparent twin-color tube, frosted tube and types of fluorescent tube include glossy, two-color, abrasive, sandblasted, photodiffusion and semi-cycle, etc.
PC LED light diffused cover or frosted base tube or profile extrusion machines,specially designed for making PC tube/profile as LED light, with one color,half profile,
Layout:
Raw material → Single-screw extruder →extrusion mould →vacuum calibration table → haul-off → cutter→ Stacker → finished product inspecting & packing
Major parts of China origin LED light PC two colors profile production line:
| No. | Major parts | Detail information |
| 1-1 | Vacuum loading machine | Driving motor:0.75KW, loading capacity 100kg/h |
| 2-1 | Hopper drying machine | Dryer Volume:100L |
| 3-1 | SJ65/28 Single screw extruder |
Driving motor:30KW, heating power:24KW,cooling power:1KW |
| 1-2 | Vacuum loading machine | Driving motor: 0.75KW |
| 2-2 | Hopper drying machine | electric heating power: 6KW, blower: 0.25KW |
| 3-2 | SJ55/25 Single screw extruder |
Driving motor:15KW, heating power:16KW,cooling power:0.72KW. |
| 4 | Vacuum loading machine | Driving motor:0.75KW |
| 5 | Hopper drying machine | electric heating power:6KW, blower:0.25KW |
| 6 | SJ45/28 Single screw extruder | Driving motor: 11KW, heating power:12KW,cooling power:0.54KW. |
| 7 | PC LED cover pipe or profile mould | mould structure up to customer's sample or drawing dimension, such as integral 2color pipe or profile. |
| 8 | Vacuum forming tank |
Tank length: 2500mm ,width:600mm. vacuum pump:1.5KW,1pc. water pump:1.5KW,1pc. table moving motor:0.55KW. stainless steel tank. |
| 9 | Haul off machine | haul power:1.5KW*2pcs; 2caterpillars |
| 10 |

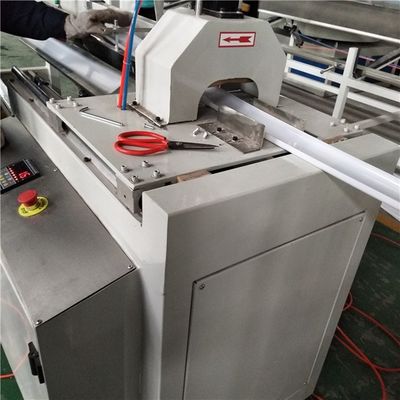

Cutting machine, (include stacker and pile tank) |
Cutting motor:1.5KW, knife lift cutter. stacker:2000mm length,air cylinders. pile tank. |

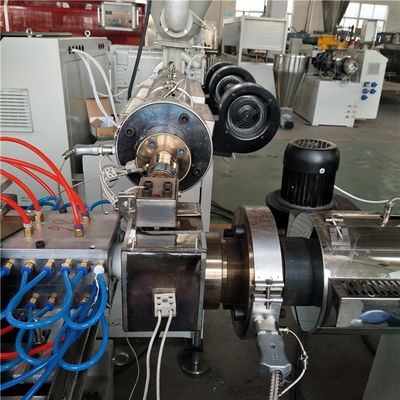

Details specification pictures of PC led lighting tube production line:
Technical dates of PC led lighting tube production line:
| Model | Screw Dia | Screw L/D | Installed power | Max.Capacity | Weight | SIZE:LXWXH |
| BS-50 | 50 | 25-30 | 30kw | 20-30kgs/hr. | 1500kgs | 12x1.5x1.8m |
| BS-65 | 65 | 25-30 | 45kw | 25-40kgs/hr. | 1800kgs | 14x1.5x1.8m |
BEISU Machinery:
BEISU machinery and equipment recommendation: PVC/PE/PP pipe production line, PVC/PE wood plastic production line, PVC profile/profile production line, PVC/PP/PE/ABS sheet/sheet production line, PVC edge band production line and mill, High-speed mixer (group), crusher, sharpener, shredder, tractor, winder, cutting machine and other plastic auxiliary machinery.
Why choose BEISU Machinery:
A1:Plant construction, renovation plan, pipeline laying plan in the plant, construction plan of circulating cooling pool, etc.;
A2:Supply of raw materials, transformers, air compressors and other procurement plans;
A3:Provide relevant raw material specific formula, high quality raw material suppliers, raw material cost accounting, etc. ;
A4:Installation equipment, commissioning equipment, training staff, and provide technical support throughout the year;
A5:BEISU company has a plastics industry engineering alliance nationwide, in the case of distance, can provide relevant talents in your company year-round work, as a technology backing.
