Product Details:
Payment & Shipping Terms:
|
| Material: | Pvc With Caco3 | Model: | Heating/cooling High Speed Mixer |
|---|---|---|---|
| Mixer Model: | SRL-Z300/600 | Heating Mixermotor Power: | 40/55Kw,double Speed Motor |
| Voltage: | 380V/3phase/50HZ(optinal) | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Warranty: | 12 Months | Automatic Grade: | Semi-Automatic |
| Highlight: | industrial mixer machine,plastic mixture machine |
||
300/600 Plastic pvc mixing machine plastic powder heating cooling mixer
Features specifications:
SRL-Series heating-cooling mixing machine unit is widely used in process of mixing, drying, coloring and cooling of variously plastic powder, liquid, granules, rubber, chemicals,CaCo3, etc.
Main technical parameter:
SRL-Z Series Vertical Mixer Unit
| Model | SRL-Z100/200 | SRL-Z200/500 | SRL-Z300/600 | SRL-Z500/1000 | SRL-Z800/1600 |
| Total volume | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
| Effective volume | 75/160 | 150/320 | 225/400 | 375/650 | 600/1050 |
| Blade rotation speed | 650/130/180 | 475/950/130 | 475/950/60 | 430/860/60 | 370/740/50 |
| Heat-cooling method |
Electric /self-friction /water cooling |
Electric /self-friction /water cooling |
Electric /self-friction /water cooling |
Electric /self-friction /water cooling |
Electric /self-friction /water cooling |
| Mixing time | 6-10 | 6-10 | 6-10 | 6-10 | 8-12 |
| Motor power | 14/22/7.5 | 30/42/7.5 | 40/55/11 | 55/75/11 | 60/90 |
| Size | 3780*1870*2250 | 4580*2240*2470 | 4580*2240*2470 | 4600*3000*4050 | 4850*3860*6550 |
| Weight | 3200 | 3400 | 4000 | 5800 | 8700 |
SRL-W Series Horizontal Mixer Unit
| Model | SRL-W500/1600 | SRL-W800/2000 | SRL-W800/2500 | SRL-W800*2/4000 | SRL-Z1000/2500 | ||||
| Total volume | 500/1600 | 800/2000 | 800/2500 | 1600/4000 | 1000/2500 | ||||
| Effective volume | 330/1000 | 560/1400 | 600/1500 | 1120/2700 | 700/1750 | ||||
| Blade rotation speed | 430/860/70 | 330/660/55 | 330/660/60 | 350/700/65 | 350/700/50 | ||||
|
Heating/cooling manner |
Self-friction/water cooling | ||||||||
| Mixed time(min) | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 | ||||
| Motor power(kw) | 47/67/15 | 60/90/18.5 | 83/110/22 | 83/110*2/45 | 83/110/22 | ||||
| Discharge method | Pneumatic | ||||||||

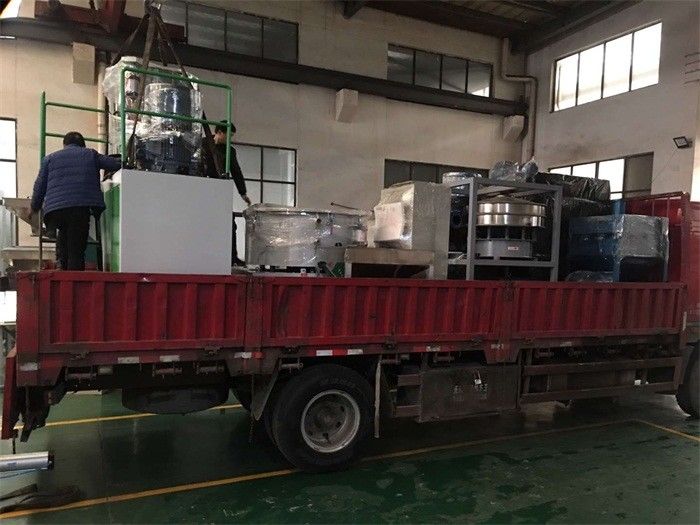

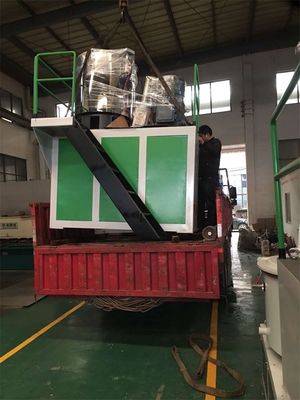

Details specification pictures of Plastic mixing machine:
The high-speed mixer must have a dedicated person responsible for the start-up operation and operate in strict accordance with the operating procedures.
(1) Inspection items before operation
1. Check the connection parts of the equipment in detail and tighten them without loosening.
2. Whether the moving parts are flexible, whether the stirrer is installed firmly, and whether the spindle rotates lightly.
3. The V-belt should be evenly tightened, and the bolts on the motor seat plate are tightened without looseness.
4. The inner cavity of the mixing container and the discharge body should be cleaned and free of dirt.
5. Check if the direction of rotation of the motor is consistent with the direction indicated by the mark.
(2) Precautions when the equipment is running
1. The motor should be stable when running, no abnormal sound, and check whether the temperature rise is normal.
2. Whether the rotating parts such as spindle bearings and V-belt pulleys are running normally. If there is abnormal noise or vibration, stop immediately and check. If there are damaged parts, they should be replaced and repaired immediately.
3. When changing the color of the material machine, the mixing container and the discharge part must be cleaned.
4. Equipment feeding shall not exceed the maximum loading factor. When the equipment is running, if adding plasticizer should be slowly added, the plasticizer should not be suddenly poured into the machine body, causing local material to agglomerate, causing the load to suddenly increase and damage the equipment.
V. Maintenance and maintenance
When using high-speed mixers, maintenance procedures should be established. In addition to general equipment maintenance rules, the following items must be noted:
1. After the equipment has been in operation for 10 hours, it should be inspected thoroughly. If necessary, the joints must be tightened once.
2. After the equipment is operated for 10 hours, check the tension of the V-belt. When tightening the V-belt evenly after adjusting the tightening screw, tighten the locking bolts of the motor base plate to prevent loosening.
3. All parts of the equipment must be kept clean, especially the inner wall of the mixing container and the refueling hole in the discharge hole should be cleaned. If the equipment is not used for a long time, the inner wall and the discharge part should be coated with anti-rust grease.
4. Equipment should be inspected frequently, regularly inspected, and damaged parts should be repaired and replaced in time.
5. Electrical equipment should be inspected regularly, especially the heater, and the damage should be replaced in time.
