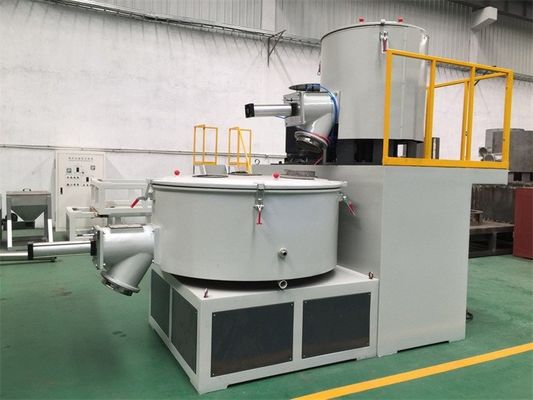

Semi Automatic PVC Mixer Machine 100/200 Electric Heating And Self Friction Heating Method

Semi Automatic PVC Mixer Machine 100/200 Electric Heating And Self Friction Heating Method
Semi Automatic PVC Mixer Machine 100/200 Electric Heating And Self Friction Heating Method Semi Automatic PVC Mixer Machine 100/200 Electric Heating And Self Friction Heating Method Semi Automatic PVC Mixer Machine 100/200 Electric Heating And Self Friction Heating Method Semi Automatic PVC Mixer Machine 100/200 Electric Heating And Self Friction Heating Method Semi Automatic PVC Mixer Machine 100/200 Electric Heating And Self Friction Heating Method

Large Image :  Semi Automatic PVC Mixer Machine 100/200 Electric Heating And Self Friction Heating Method

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: BS-SRL-Z100/200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film packing and pallet fixed on the machine bottom
Delivery Time: 20 working days
Payment Terms: L/C, T/T
Supply Ability: 150 Sets per year
Detailed Product Description
Material: Pvc With Caco3 Model: Heating/cooling Pvc Mixer
Mixer Model: SRL-Z100/200 Voltage: 380V/3phase/50HZ(optinal)
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 12 Months
Automatic Grade: Semi-Automatic
High Light:

industrial mixer machine

,

plastic mixture machine

100/200 Plastic pvc mixer machine plastic powder heating cooling mixer





Performance and structure:


1. It is used in the process of mixing box, stirring, drying and coloring of plastics, rubber, daily chemical and other industries and laboratory materials.
2. The lid is double-sealed.
3. There are various heating methods such as self-friction and electric heating.
4. The unloading mode adopts two kinds of automatic temperature control and manual control.
5. The blade is cast in whole stainless steel and refined by dynamic and static balance tests.
6. Electrical control uses brand-name control components.



Technical standard:


(1). Hot mixing part
1. The total volume of the heating mixer is: 100L The effective volume is: 75L
2. Main motor power: 14/22kw two-speed motor
3. Speed: 0~1300rpm
3. The inside of the container is made of stainless steel. Material: 304 stainless steel thickness 5mm
4. Stirring paddle: three layers of stainless steel precision parts
5. Heating method: electric heating and self-friction
6. Unloading method: pneumatic device (automatic discharging)
7. Temperature control device: Digital LCD display temperature controller NF-6000 Shanghai Asia Pacific
(B). Cooling mixer part
1. The total volume of the cooling mixer is 200L and the effective volume is 160L.
2. Motor power: 7.5kw
3. The inner material of the cooling container is stainless steel
4. Stir a layer of paddle with a cooling ring inside the container to cool the outside with interlayer cooling.
The material can be cooled under the cooling of the inner and outer layers.
5. Unloading method: pneumatic device (automatic discharging)



Main technical parameter:



SRL-Z Series Vertical Mixer Unit



Model SRL-Z100/200 SRL-Z200/500 SRL-Z300/600 SRL-Z500/1000 SRL-Z800/1600
Total volume 100/200 200/500 300/600 500/1000 800/1600
Effective volume 75/160 150/320 225/400 375/650 600/1050
Blade rotation speed 650/130/180 475/950/130 475/950/60 430/860/60 370/740/50
Heat-cooling method

Electric

/self-friction

/water cooling

Electric

/self-friction

/water cooling

Electric

/self-friction

/water cooling

Electric

/self-friction

/water cooling

Electric

/self-friction

/water cooling

Mixing time 6-10 6-10 6-10 6-10 8-12
Motor power 14/22/7.5 30/42/7.5 40/55/11 55/75/11 60/90
Size 3780*1870*2250 4580*2240*2470 4580*2240*2470 4600*3000*4050 4850*3860*6550
Weight 3200 3400 4000 5800 8700



Details specification pictures of Plastic mixing machine:

Semi Automatic PVC Mixer Machine 100/200 Electric Heating And Self Friction Heating Method 0

Semi Automatic PVC Mixer Machine 100/200 Electric Heating And Self Friction Heating Method 1

Semi Automatic PVC Mixer Machine 100/200 Electric Heating And Self Friction Heating Method 2

Semi Automatic PVC Mixer Machine 100/200 Electric Heating And Self Friction Heating Method 3





The high-speed mixer must have a dedicated person responsible for the start-up operation and operate in strict accordance with the operating procedures.



(1) Inspection items before operation

1. Check the connection parts of the equipment in detail and tighten them without loosening.

2. Whether the moving parts are flexible, whether the stirrer is installed firmly, and whether the spindle rotates lightly.

3. The V-belt should be evenly tightened, and the bolts on the motor seat plate are tightened without looseness.

4. The inner cavity of the mixing container and the discharge body should be cleaned and free of dirt.

5. Check if the direction of rotation of the motor is consistent with the direction indicated by the mark.



(2) Precautions when the equipment is running

1. The motor should be stable when running, no abnormal sound, and check whether the temperature rise is normal.

2. Whether the rotating parts such as spindle bearings and V-belt pulleys are running normally. If there is abnormal noise or vibration, stop immediately and check. If there are damaged parts, they should be replaced and repaired immediately.

3. When changing the color of the material machine, the mixing container and the discharge part must be cleaned.

4. Equipment feeding shall not exceed the maximum loading factor. When the equipment is running, if adding plasticizer should be slowly added, the plasticizer should not be suddenly poured into the machine body, causing local material to agglomerate, causing the load to suddenly increase and damage the equipment.

V. Maintenance and maintenance

When using high-speed mixers, maintenance procedures should be established. In addition to general equipment maintenance rules, the following items must be noted:

1. After the equipment has been in operation for 10 hours, it should be inspected thoroughly. If necessary, the joints must be tightened once.

2. After the equipment is operated for 10 hours, check the tension of the V-belt. When tightening the V-belt evenly after adjusting the tightening screw, tighten the locking bolts of the motor base plate to prevent loosening.

3. All parts of the equipment must be kept clean, especially the inner wall of the mixing container and the refueling hole in the discharge hole should be cleaned. If the equipment is not used for a long time, the inner wall and the discharge part should be coated with anti-rust grease.

4. Equipment should be inspected frequently, regularly inspected, and damaged parts should be repaired and replaced in time.

5. Electrical equipment should be inspected regularly, especially the heater, and the damage should be replaced in time.



FAQ

Q1: Are you a factory or trading company?
A: We are the manufacturer and we have 15 years factory experience .As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit to our factory.
Q2: How long is the delivery time?
A: For standard machines, it would be 7-10 working days; For non-standard machines and customized machines according to client s specific requirements, it would be 25 to 35 working days.
Q3: How should I pay for my order ? what is the procession of this purchase?
A:You can do 30% prepayment at first, then we will start to make production. When the machines are ready , we will take pictures and videos to you, and then you can do the balance.After we got your payment. We will send the machine to you.
Q4:How is the machine warranty and after-sale service?
A: All our machine would have a warranty of 12 months since the date of machine installation in client's factory. And beyond warranty period, we can offer spare parts or repair service with or without charges.
