PLC Control PVC Plastic Sheet Production Line With Electric - Magnetic Heater

PLC Control PVC Plastic Sheet Production Line With Electric - Magnetic Heater
PLC Control PVC Plastic Sheet Production Line With Electric - Magnetic Heater PLC Control PVC Plastic Sheet Production Line With Electric - Magnetic Heater PLC Control PVC Plastic Sheet Production Line With Electric - Magnetic Heater PLC Control PVC Plastic Sheet Production Line With Electric - Magnetic Heater PLC Control PVC Plastic Sheet Production Line With Electric - Magnetic Heater

Large Image :  PLC Control PVC Plastic Sheet Production Line With Electric - Magnetic Heater

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: BS-PVC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film packing and pallet fixed on the machine bottom
Delivery Time: 50 wording days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1 set per month
Detailed Product Description
Plastic Processed: PVC Screw Design: Double-screw
Product Type: Waterproof Sheet Extruder Power: 55Kw
High Light:

pvc sheet extrusion line

,

pvc sheet making machine

PLC control twin screw extruder Plastic pvc sheet production with coiler



Application:

Plastic Sheet has characters of high strength and corrosion protection, with some padding can achieve enhance, toughen, flame retardant, anti-static electricity function, sheet surface can be embossed and polished, mainly used on producing plate, bowl, saucer, box, disposable plastic cup and so on hot forming products, also can be used on packing of food, vegetable, fruit, drinks, dairy, industrial parts and so on field like stationary sheet, printing sheet and so on.

Features of PVC sheet production line:

1. PVC sheet production line:Adopt PLC control and simple operation .
2. PVC sheet production line:Adopt Electric-magnetic heater which can save 40% -60% electric power for customer .
3. PVC sheet production line:All Electric Part (breaker/motor/relay /Inverter and so on ) is Siemens/Schneider/Omron
4. PVC sheet production line:Material of screw and barrel: 38CrMoAlA, nitrogen quenched which the thickness layer 0.4-0.7mm; Hardness of screw barrel: >940 HV;
5. PVC sheet production line:Comprehensive plasticizing element, ensure the plasticizing effects of materials.



Main Compision:

A1. SJZ80/156 Conical Doubel- crew Extruder

A2. Mould

A3. Three-roller Calander with Marble film unit

A4. Cooling frame with side cutting

A5. Two-roller haul-off unit

A6. Cutting unit

A7. Stacker



Auxiliary Machine for your choose:

A1. SHRL300/600 Mixer

A2. SWP-360 Crusher

A3. UV coating line( Surface treatment )



Technical Parameters of PVC sheet production line:

Product Product thickness Extruder Max. output Total Length
880mm 2-4mm SJSZ-80/156
FSJ-45/28
390kg/h customizing
1040mm 2-4mm SJSZ-80/156
FSJ-50/28
420kg/h

customizing





Auxiliary Machines

No. Machine Quantity
1 Mould: Main rigde tile; Oblique ridge tile; T cock; Tile end 4set
2 Pressing machine and oven 2set
3 SRL-Z500/1000 Mixing unit 1set
4 Screw loader 1set
5 SWP360 Crusher 1set
6 SMP600 Miller 1set

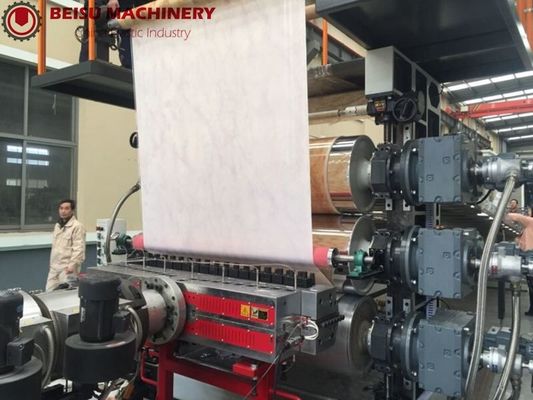

Details specification pictures of PVC sheet production line:

PLC Control PVC Plastic Sheet Production Line With Electric - Magnetic Heater 0PLC Control PVC Plastic Sheet Production Line With Electric - Magnetic Heater 1PLC Control PVC Plastic Sheet Production Line With Electric - Magnetic Heater 2PLC Control PVC Plastic Sheet Production Line With Electric - Magnetic Heater 3PLC Control PVC Plastic Sheet Production Line With Electric - Magnetic Heater 4



BEISU Machinery:

BEISU machinery and equipment recommendation: PVC/PE/PP pipe production line, PVC/PE wood plastic production line, PVC profile/profile production line, PVC/PP/PE/ABS sheet/sheet production line, PVC edge band production line and mill, High-speed mixer (group), crusher, sharpener, shredder, tractor, winder, cutting machine and other plastic auxiliary machinery.



Why choose BEISU Machinery:
A1:Plant construction, renovation plan, pipeline laying plan in the plant, construction plan of circulating cooling pool;

A2:Supply of raw materials, transformers, air compressors and other procurement plans;

A3:Provide relevant raw material specific formula, high quality raw material suppliers, raw material cost accounting ;

A4:Installation equipment, commissioning equipment, training staff, and provide technical support throughout the year;

A5:BEISU company has a plastics industry engineering alliance nationwide, in the case of distance, can provide relevant talents in your company year-round work, as a technology backing.
