Product Details:
Payment & Shipping Terms:
|
| Plastic Processed: | PET/PP/PS | Screw Design: | Single-screw |
|---|---|---|---|
| Product Type: | Roof Sheet | Extruder Power: | 55Kw |
| Highlight: | pvc sheet extrusion line,pvc sheet making machine |
||
Single or double layers Plastic PP PS sheet production line with co-extrusion
Application:
Feature:
1) Our corrugated sheet making machine has High capacity.
2) Energy saving: 20% energy saving than normal machines.
3) Four self-designed major core technology of sheet extruder: extrusion system, die, roller, distributor. They are all invented and designed by ourselves. The core technology has many testing points and adopts electrical integration of double protection.
4) The operation fully reflects the man-machine engineering principle, it can make the function more entirely and the operation more simple.
5) Only the tablet machine independently walking, avoid the interference from other power to influence the stability of the tabletting sheet.
6) The plasticizing effect of the sheet is very good. After the sheet formed and walking in curved line, it can make sure the stability of the sheet stock.
7) The heating system is controlled by high-grade china heater, stainless heater, inner-storing type single heating pipe and precision temperature-controlling die mould, is exact in controlling temperature, quickly in heating, good in keeping temperature, long life and save time and energy.
8) Our pastry sheet making machine extrusion system adopt Japan Sanken frequency conversion motor with close loop which has the quick reaction, large torque, anti-interference and accurate feedback signal. The stability reaches the international standards.
9) The pressure sensor adopts US Dynisco which has the feature that accurate feedback about the pressure, anti-interference and high precision.
Main Technical Parameter:
| Extruder Model | SJ120/38,SJ45/30 | SJ120/30 | SJ100/38,SJ45/30 | SJ100/33 |
| Raw Material | PC | PP/PE | PC | PP/PE |
| Products thickness (mm) | 3-30 | 2-15 | 2-10 | 2-8 |
| Products Width (mm) | 2100 | 2300 | 1300 | 1300 |
| Capacity (KG/H) | 450 | 400 | 300 | 200 |
| Motor Power (KW) | 200,18.5 | 132 | 132,18.5 | 110 |

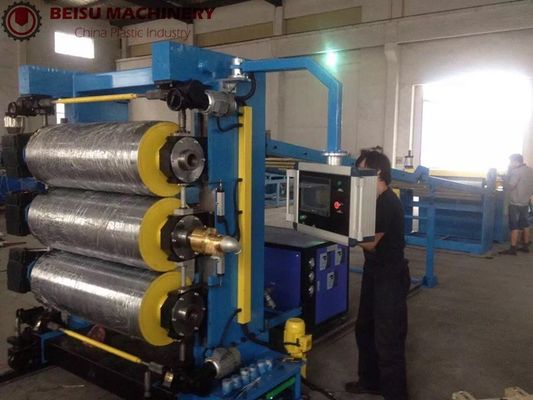

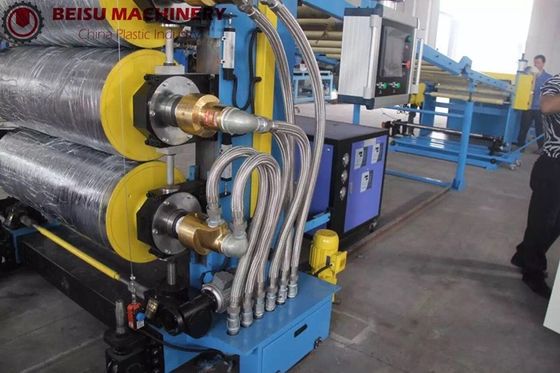

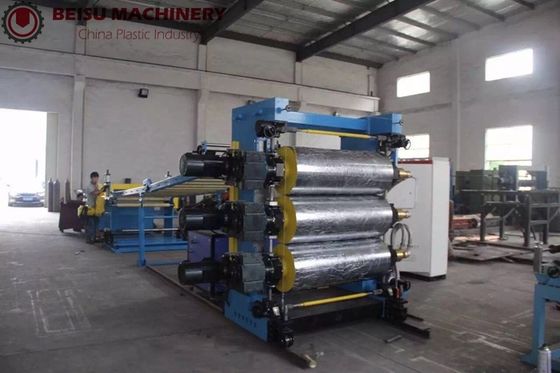

Details specification pictures:
BEISU Machinery:
BEISU machinery and equipment recommendation: PVC/PE/PP pipe production line, PVC/PE wood plastic production line, PVC profile/profile production line, PVC/PP/PE/ABS sheet/sheet production line, PVC edge band production line and mill, High-speed mixer (group), crusher, sharpener, shredder, tractor, winder, cutting machine and other plastic auxiliary machinery.
Why choose BEISU Machinery:
A1:Plant construction, renovation plan, pipeline laying plan in the plant, construction plan of circulating cooling pool;
A2:Supply of raw materials, transformers, air compressors and other procurement plans;
A3:Provide relevant raw material specific formula, high quality raw material suppliers, raw material cost accounting ;
A4:Installation equipment, commissioning equipment, training staff, and provide technical support throughout the year;
A5:BEISU company has a plastics industry engineering alliance nationwide, in the case of distance, can provide relevant talents in your company year-round work, as a technology backing.
