Product Details:
Payment & Shipping Terms:
|
| Plastic Processed: | PVC&ASA | Screw Design: | Double-screw |
|---|---|---|---|
| Product Type: | Glazed Tile | Extruder Power: | 55Kw |
| Highlight: | pvc sheet making machine,plastic sheet extrusion machine |
||
Double screw extruder plastic PVC sheet production line with PLC control
Layout:
Raw material+additive→Mixer→Auto Feeder→conical twin screw extruder→-Moulds→Vacuum calibration tank→Chilling unit→Haul-off Unit→Cutting Unit→Stacker
Application:
PVC roof tile can be widely used in the old and new roofing, old and new factory, warehouse, stores, farmers markets, civil bungalow, the residential quarters to flat slope, the new rural construction, villa roofing, pile of loading bays, farms, vegetable shed, rain booming, awning and sights and raising antique buildings board, removable houses, balcony column board, frame structure wall etc building water proof insulation. Advantages with light weight, intensity big, wear pressure deformation.
Features of PVC sheet production line:
1. PVC sheet production line:Adopt PLC control and simple operation .
2. PVC sheet production line:Adopt Electric-magnetic heater which can save 40% -60% electric power for customer .
3. PVC sheet production line:All Electric Part (breaker/motor/relay /Inverter and so on ) is Siemens/Schneider/Omron
4. PVC sheet production line:Material of screw and barrel: 38CrMoAlA, nitrogen quenched which the thickness layer 0.4-0.7mm; Hardness of screw barrel: >940 HV;
5. PVC sheet production line:Comprehensive plasticizing element, ensure the plasticizing effects of materials.
Technical Parameters of PVC sheet production line:
| Product | Product thickness | Extruder | Max. output | Total Length |
| 880mm | 2-4mm | SJSZ-80/156 FSJ-45/28 |
390kg/h | customizing |
| 1040mm | 2-4mm | SJSZ-80/156 FSJ-50/28 |
420kg/h |
customizing
|
Configuration
| No. | Machine | Quantity |
| 1 | Screw loader | 1 set |
| 2 | SJZ80/156 conical twin-screw extruder | 1 set |
| 3 | SJ65/35 single screw co-extruder | 1 set |
| 4 | Extrusion mould and flow distributor | 1 set |
| 5 | Embossing roller | 1 set |
| 6 | Side cutter | 1 set |
| 7 | Glazed-tile forming machine | 1 set |
| 8 | Cutter | 1 set |
| 9 | Stacker | 1 set |
Auxiliary Machines
| No. | Machine | Quantity |
| 1 | Mould: Main rigde tile; Oblique ridge tile; T cock; Tile end | 4set |
| 2 | Pressing machine and oven | 2set |
| 3 | SRL-Z500/1000 Mixing unit | 1set |
| 4 | Screw loader | 1set |
| 5 | SWP360 Crusher | 1set |
| 6 | SMP600 Miller | 1set |

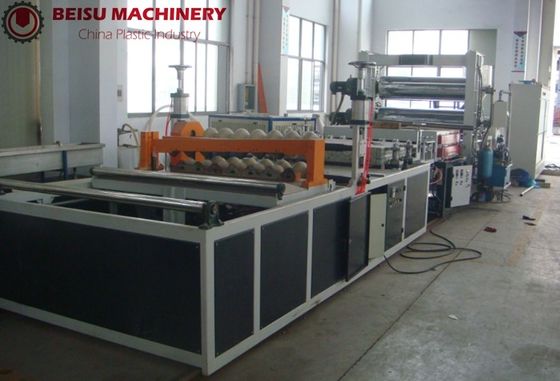

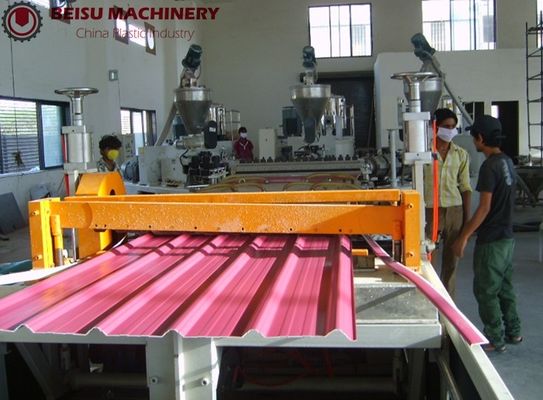

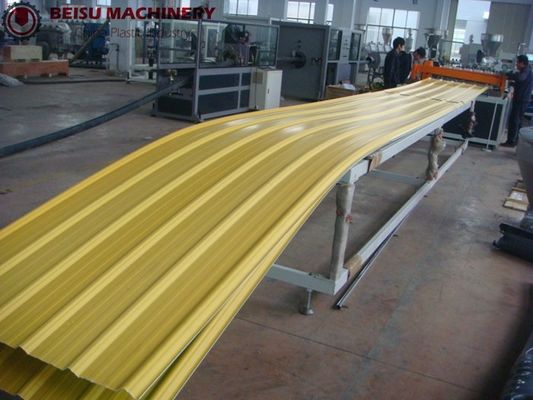

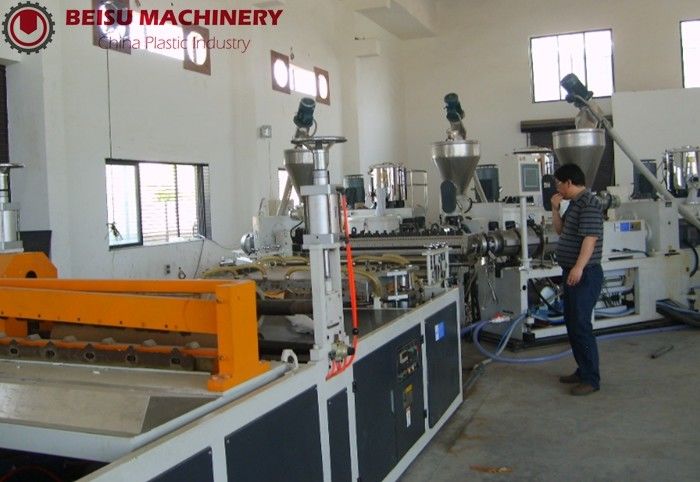

Details specification pictures of PVC sheet production line:
BEISU Machinery:
BEISU machinery and equipment recommendation: PVC/PE/PP pipe production line, PVC/PE wood plastic production line, PVC profile/profile production line, PVC/PP/PE/ABS sheet/sheet production line, PVC edge band production line and mill, High-speed mixer (group), crusher, sharpener, shredder, tractor, winder, cutting machine and other plastic auxiliary machinery.
Why choose BEISU Machinery:
A1:Plant construction, renovation plan, pipeline laying plan in the plant, construction plan of circulating cooling pool, etc.;
A2:Supply of raw materials, transformers, air compressors and other procurement plans;
A3:Provide relevant raw material specific formula, high quality raw material suppliers, raw material cost accounting, etc. ;
A4:Installation equipment, commissioning equipment, training staff, and provide technical support throughout the year;
A5:BEISU company has a plastics industry engineering alliance nationwide, in the case of distance, can provide relevant talents in your company year-round work, as a technology backing.
