Strong Power HDPE Pipe Manufacturing Machine 110mm - 315mm Anti Aging

Strong Power HDPE Pipe Manufacturing Machine 110mm - 315mm Anti Aging
Strong Power HDPE Pipe Manufacturing Machine 110mm - 315mm Anti Aging Strong Power HDPE Pipe Manufacturing Machine 110mm - 315mm Anti Aging Strong Power HDPE Pipe Manufacturing Machine 110mm - 315mm Anti Aging

Large Image :  Strong Power HDPE Pipe Manufacturing Machine 110mm - 315mm Anti Aging

Product Details:
Place of Origin: CHINA
Brand Name: BEISU
Certification: CE
Model Number: BS-315
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plastic film packing and pellet fix on the bottom
Delivery Time: 55 working days
Payment Terms: T/T, L/C
Supply Ability: 5 sets per month
Detailed Product Description
Material: HDPE Pipe Range: 110mm~315mm
Extruder Model: SJ-90/33 Max. Output: 450kg/h
Max.speed: 5m/min Motor Power: 160Kw
Vacuum Power: 5.5Kw X 2 Water Power: 7.5Kw X 2
Warranty: 12 Months Processing Type: Extrusion Machine
Automatic Grade: PLC
High Light:

plastic pipe manufacturing machine

,

water drainge pipe production line

Strong power 110mm~315mm HDPE drainge solid pipe production line with AC motor



Advantage of HDPE pipe:



Reliable connection: the polyethylene pipe system is connected by electric hot melt method, and the strength of the joint is higher than the strength of the pipe body.
Low temperature impact resistance: Polyethylene has a very low temperature embrittlement temperature and can be safely used in the temperature range of -60-60 °C. In winter construction, due to the good impact resistance of the material, no brittle cracking will occur.
Good resistance to stress cracking: HDPE has low notch sensitivity, high shear strength and excellent scratch resistance, and environmental stress cracking resistance is also outstanding.
Good chemical resistance: HDPE pipes are resistant to corrosion by a variety of chemical media, and chemicals present in the soil do not cause any degradation to the pipe. Polyethylene is an electrical insulator, so it does not rot, rust or electrochemically corrode; it also does not promote the growth of algae, bacteria or fungi
Anti-aging, long service life: Polyethylene pipes with 2-2.5% evenly distributed carbon black can be stored or used outdoors for 50 years without damage from UV radiation.
Good wear resistance: The comparison of wear resistance of HDPE pipe and steel pipe shows that the wear resistance of HDPE pipe is 4 times that of steel pipe. In the field of mud transport, HDPE pipes have better wear resistance than steel pipes, which means HDPE pipes have a longer service life and better economy.
Good flexibility: The flexibility of the HDPE pipe makes it easy to bend, and the engineering can bypass the obstacle by changing the direction of the pipe. In many cases, the flexibility of the pipe can reduce the pipe usage and reduce the installation cost.
Low water flow resistance: The HDPE pipe has a smooth inner surface with a Manning coefficient of 0.009. Smooth performance and non-adhesive properties ensure that HDPE pipes have higher conveying capacity than conventional pipes, while also reducing pipe pressure loss and water delivery energy consumption.
Convenient handling: HDPE pipes are lighter than concrete pipes, galvanized pipes and steel pipes. They are easy to handle and install. The lower manpower and equipment requirements mean that the installation cost of the project is greatly reduced.
A variety of new construction methods: HDPE pipelines have a variety of construction techniques, in addition to the traditional excavation methods, a variety of new non-excavation techniques such as pipe jacking, directional drilling, liners, cracking Construction by pipe, etc. This is the only option for some places that are not allowed to be excavated.





Layout:

Raw material+additive→Mixer→Auto Feeder→Hopper dryer→Single screw Extruder→-Moulds→Vacuum calibration tank→Spray Cooling Tank→Haul-off Unit→Cutting Unit→Stacker



Strong Power HDPE Pipe Manufacturing Machine 110mm - 315mm Anti Aging 0

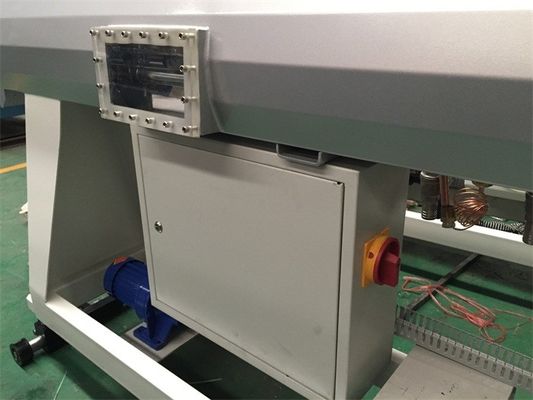

Details specification pictures of HDPE pipe production line by BEISU Machinery:

Strong Power HDPE Pipe Manufacturing Machine 110mm - 315mm Anti Aging 1

Strong Power HDPE Pipe Manufacturing Machine 110mm - 315mm Anti Aging 2

Strong Power HDPE Pipe Manufacturing Machine 110mm - 315mm Anti Aging 3

Strong Power HDPE Pipe Manufacturing Machine 110mm - 315mm Anti Aging 4

Strong Power HDPE Pipe Manufacturing Machine 110mm - 315mm Anti Aging 5



Main technical parameter:

Diameter(mm) 20-63 20-110 75-250 110-315 160-450 315-450
Conical extruder SJ65 SJ65 SJ75 SJ90 SJ90 SJ120
Extruder powder(KW) 55 75 110 110 160 280
Max lineal speed 12 10 3.5 3 2 1.2
Max capacity(K/G) 150 180 350 450 450 700
