PPR Aluminum Composite Pipe Extrusion Line 75KW - 150KW Total Power Easy Operation

PPR Aluminum Composite Pipe Extrusion Line 75KW - 150KW Total Power Easy Operation
PPR Aluminum Composite Pipe Extrusion Line 75KW - 150KW Total Power Easy Operation PPR Aluminum Composite Pipe Extrusion Line 75KW - 150KW Total Power Easy Operation PPR Aluminum Composite Pipe Extrusion Line 75KW - 150KW Total Power Easy Operation

Large Image :  PPR Aluminum Composite Pipe Extrusion Line 75KW - 150KW Total Power Easy Operation

Product Details:
Place of Origin: CHINA
Brand Name: BEISU
Certification: CE
Model Number: BS-160
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plastic film packing and pellet fix on the bottom
Delivery Time: 35 working days
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Detailed Product Description
Material: PPR With Aluminum Belt Pipe Range: 16mm~160mm
Max. Output: 200kg/h Max.speed: 6m/min
After-sales Service Provided: Engineers Available To Service Machinery Overseas Voltage: 380V 50HZ 3Phase(Customized)
High Light:

ppr pipe extrusion line

,

plastic pipe production line

16-160mm PPR aluminum Co-extrusion Composite pipe extrusion line



Specification:



The plastic aluminum steady-state tube product combines the advantages of metal tube and plastic tube. It is suitable for wide application of high temperature of the conveying medium, special conditions for oxygen barrier and special requirements, especially suitable for the surface of the radiator heating system.



Layout:

Raw material+additive→Mixer→Auto Feeder→Hopper dryer→Single screw Extruder→-Moulds→Vacuum calibration tank→Spray Cooling Tank→Haul-off Unit→Cutting Unit→Stacker



PPR Aluminum Composite Pipe Extrusion Line 75KW - 150KW Total Power Easy Operation 0

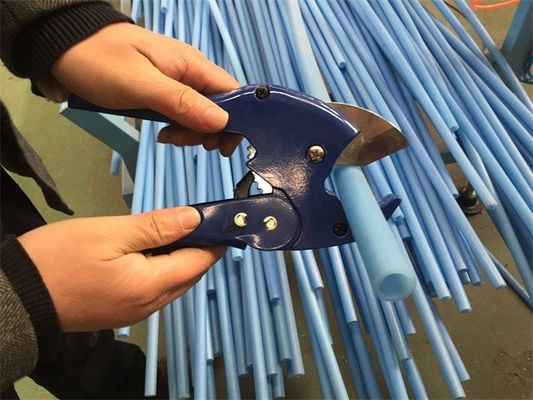

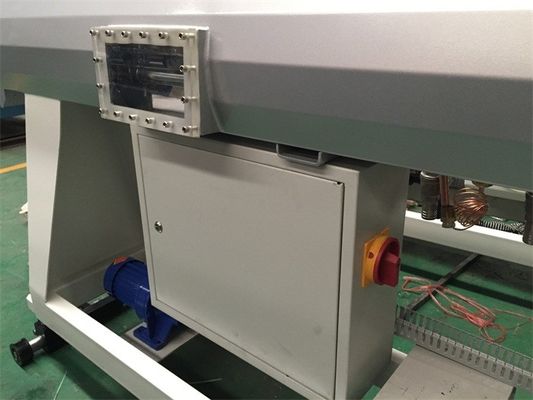

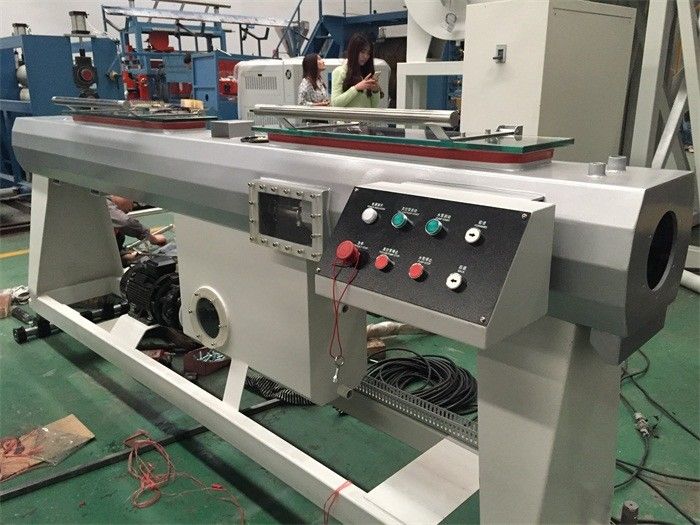

Details specification pictures of PPR pipe production line by BEISU Machinery:

PPR Aluminum Composite Pipe Extrusion Line 75KW - 150KW Total Power Easy Operation 1

PPR Aluminum Composite Pipe Extrusion Line 75KW - 150KW Total Power Easy Operation 2

PPR Aluminum Composite Pipe Extrusion Line 75KW - 150KW Total Power Easy Operation 3

PPR Aluminum Composite Pipe Extrusion Line 75KW - 150KW Total Power Easy Operation 4



Traditional extruder:

The use of a smooth barrel provides limited friction, resulting in a significant reduction in the solids delivery efficiency of the extruder, resulting in lower yields for conventional smooth extruders and more difficult for extrusion of materials with high viscosity and low coefficient of friction. This greatly limits the application of single screw extruders.



IKV extruder with slotting in the feed section:

The groove is formed on the inner surface of the barrel feeding section, which helps to improve the friction coefficient between the plastic particles and the inner surface of the barrel, and hinders the plastic particles from sliding axially, thereby improving the solid conveying efficiency and finally greatly increasing the output. According to the different direction of the groove, it is divided into a straight groove and a spiral groove.





Main technical parameter:



Model Pipe Diameter Output Haul-off Speed Total Power Line Length
PPR-63 16-63mm 100-120kg/h 10m/min 75kw 35m
PPR-110 40-110mm 180-220kg/h 6m/min 145kw 38m
PPR-160 50-160mm 200-250kg/h 6m/min 150kw 38m



Zhangjiagang Beisu Machinery has a professional and dedicated after-sales service team to provide customers with a full range of responsible and reliable service. Our customer service work is divided into three phases: pre-sales program discussion and design, production tracking and installation and commissioning, and after-sales service and maintenance.



Pre-sales program discussion and design:



According to the customer's actual crushing or processing line requirements, provide customers with the corresponding professional knowledge explanation; at the same time, our engineering team selects the equipment model for you, customizes the most reasonable and effective crushing scheme, and ensures the perfect combination of our equipment and site layout. Create the greatest value and leave you carefree.



We provide customers with the design of the production line process, and truly design a satisfactory and reasonable production line for customers. Often, in order to meet the special needs of our customers and achieve the best results, we will make non-standard design changes to our products and treat every customer with care.
