SHR -2000 Liters Plastic Mixer Machine , Pvc Mixer Machine With SIEMENS PLC

SHR -2000 Liters Plastic Mixer Machine , Pvc Mixer Machine With SIEMENS PLC
SHR -2000 Liters Plastic Mixer Machine , Pvc Mixer Machine With SIEMENS PLC SHR -2000 Liters Plastic Mixer Machine , Pvc Mixer Machine With SIEMENS PLC SHR -2000 Liters Plastic Mixer Machine , Pvc Mixer Machine With SIEMENS PLC SHR -2000 Liters Plastic Mixer Machine , Pvc Mixer Machine With SIEMENS PLC

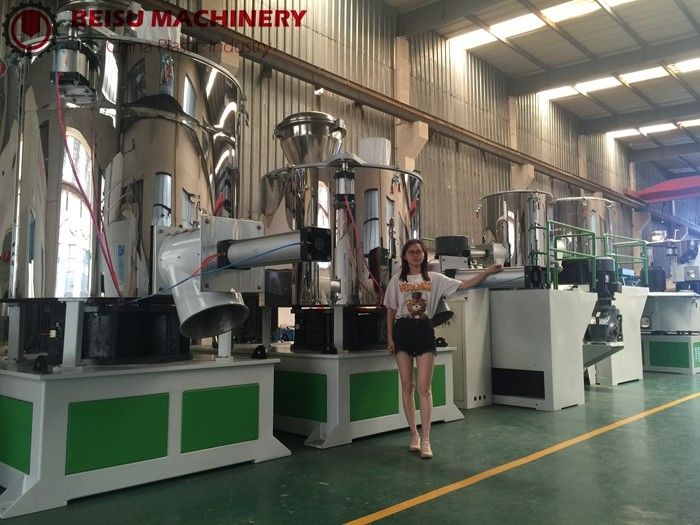

Large Image :  SHR -2000 Liters Plastic Mixer Machine , Pvc Mixer Machine With SIEMENS PLC

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: BS-SHR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film packing and pallet fixed on the machine bottom
Delivery Time: 20 working days
Payment Terms: L/C, D/P,, T/T, Western Union
Supply Ability: 150 Sets per year
Detailed Product Description
Material: UPVC/CPVC/OPVC/PE/PP/MB/CORBON Model: Heating Mixer,heating Cooling Mixer, Cooling Mixer
Mixer Model: SHR-25 Heating Mixermotor Power: 45/75/90/110/160/200/250Kw
Inverter Brand: ABB Temperature Control Brand: OMRON
Capacity: 2400Kg/h
High Light:

industrial mixer machine

,

high speed mixer machine

SHR -2000 Liters Plastic Mixer Machine , Pvc Mixer Machine With SIEMENS PLC



Application:

SHR series PVC high-speed mixer, mainly used for: mixing and coloring of polyvinyl chloride resin, coloring and drying of polyethylene and polypropylene particles, drying of hygroscopic resin such as ABS polycarbonate, mixing of phenolic resin, etc. Process. Mixers are one of the necessary equipment for plastics processing plants and are used in a wide range of applications in the rubber, pharmaceutical, and dyestuff industries. Because it has a fast mixing and a uniform mixture, the resin has good absorption to the reinforcing agent. The PVC high-speed mixer is easy to operate, easy to clean, durable, and compact. In recent years, it has gradually replaced low-speed mixers and is widely used in the production of various plastics industries.



Features:

The mixture is based on the principle of negative pressure mixing. All electrical instruments are imported famous brand electrical appliances, and can be controlled by PLC program or computer. It has high degree of automation and fast mixing speed. It can be controlled by variable frequency speed control. Its blades are precision stainless steel pressure casting and pass static and dynamic balance test. In particular, the cooling machine blades adopt advanced foreign spiral stirring structure, the whole container has no dead angle, has a fast cooling speed, and the discharging is clean. The container cover and the container adopt a concave-convex double-channel sealing method, and the traditional single-channel flat sealing phase Better than sealing. The main shaft seal is made of three-layer skeleton oil seal made of imported durable rubber, and has oil filling device, which has good sealing effect and long service life. The discharge valve is plugged with a plunger type. The inner surface of the door block is closely matched with the inner wall of the container, and there is no dead zone of the mixture, so that the materials are evenly mixed. The door plug is sealed by end face and the seal is reliable. The temperature measurement point is set in the container, and the material is directly in contact with the material, and the temperature measurement is accurate. The blade of the cold machine adopts a large angled blade, forcing the material to rise along the inner wall of the container, and descending through the cooling sleeve to achieve the cooling purpose. The wall of the vessel is provided with a cooling interlayer, and the cooling interlayer is provided with a spiral water passage to allow the cooling water to flow according to a set route. Cool evenly, fast cooling and good cooling effect. The container has an inverted truncated cone-shaped inner cooling jacket, which increases the cooling area and speeds up the cooling. The cold machine introduces the foreign deceleration technology and adopts the direct deceleration device, which overcomes all the disadvantages of using the reducer and makes the operation more stable. An exhaust device is arranged on the cover of the cold machine to fully eliminate the gas generated by the hot mix during the cooling process, thereby improving the quality of the product. The inner wall of the unit is made of 6mm thick stainless steel plate, which increases the service life of the equipment. The main shaft is made of 40CrZ and the hardness is HrC28-32. The electrical control system is controlled by temperature and time. The other components are made of well-known enterprise products to make their performance reliable and sensitive. According to the characteristics of the material, the stainless steel blades have two kinds of disc blades and three blades. The agitating paddle is driven by a motor through a triangular tape. It rotates clockwise to make the material move along the wall of the pot on the one hand, and simultaneously circulates up and down, processing the baffle to make the mixing effect better. Since the material is moving at a high speed, the friction between the material and the blade is very high, which causes the temperature of the material to rise rapidly, which not only reduces the heating amount of the wall, but also favors the resin to the plasticizer. Absorption,



Details specification pictures mixer:

SHR -2000 Liters Plastic Mixer Machine , Pvc Mixer Machine With SIEMENS PLC 0SHR -2000 Liters Plastic Mixer Machine , Pvc Mixer Machine With SIEMENS PLC 1SHR -2000 Liters Plastic Mixer Machine , Pvc Mixer Machine With SIEMENS PLC 2SHR -2000 Liters Plastic Mixer Machine , Pvc Mixer Machine With SIEMENS PLC 3





Technical date:

Model Total volume Available capacity Motor power Shaft speed Heating method
SHR-5A 5L 3L 1.1Kw 1400rpm Self friction/electric
SHR-10A 10L 7L 3Kw 2000rpm
SHR-25A 25L 20L 5.5Kw 1440rpm
SHR-50A 50L 35L 7/11Kw 750/1500rpm
SHR-100A 100L 75L 14/22Kw 650/1300rpm
SHR-200A 200L 150L 30/42Kw 475/950rpm
SHR-300A 300L 225L 40/55Kw 475/950rpm
SHR-500A 500L 375L 47/67Kw 430/860rpm
SHR-800A 800L 600L 60/90Kw 370/740rpm
SHR-1000A 1000L 750L 83/110Kw 350/700rpm



BEISU Machinery:

BEISU machinery and equipment recommendation: PVC/PE/PP pipe production line, PVC/PE wood plastic production line, PVC profile/profile production line, PVC/PP/PE/ABS sheet/sheet production line, PVC edge band production line and mill, High-speed mixer (group), crusher, sharpener, shredder, tractor, winder, cutting machine and other plastic auxiliary machinery.



Why choose BEISU Machinery:
A1: Plant construction, renovation plan, pipeline laying plan in the plant, construction plan of circulating cooling pool

A2: Supply of raw materials, transformers, air compressors and other procurement plans

A3: Provide relevant raw material specific formula, high quality raw material suppliers, raw material cost accounting

A4: Installation equipment, commissioning equipment, training staff, and provide technical support throughout the year

A5: BEISU company has a plastics industry engineering alliance nationwide, in the case of distance, can provide relevant talents in your company year-round work, as a technology backing
