|Material:||UPVC/CPVC/OPVC/PE/PP/MB/CORBON||Model:||Heating Mixer,heating Cooling Mixer, Cooling Mixer|
|Mixer Model:||SHR-3000||Heating Mixermotor Power:||45/75/90/110/160/200/250Kw|
|Inverter Brand:||ABB||Temperature Control Brand:||OMRON|
industrial mixer machine,
high speed mixer machine

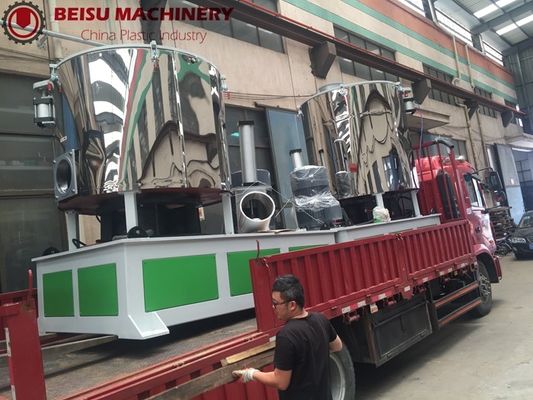

SHR-3000L high speed plastic PVC powder mixing machine with electric heating
SHR series PVC high-speed mixer, mainly used for: mixing and coloring of polyvinyl chloride resin, coloring and drying of polyethylene and polypropylene particles, drying of hygroscopic resin such as ABS polycarbonate, mixing of phenolic resin, etc. Process. Mixers are one of the necessary equipment for plastics processing plants and are used in a wide range of applications in the rubber, pharmaceutical, and dyestuff industries. Because it has a fast mixing and a uniform mixture, the resin has good absorption to the reinforcing agent. The PVC high-speed mixer is easy to operate, easy to clean, durable, and compact. In recent years, it has gradually replaced low-speed mixers and is widely used in the production of various plastics industries.
The concave and convex double-channel sealing method is adopted between the container cover and the container, and the sealing effect is better than the conventional single-channel flat sealing. The main shaft seal is made of three-layer skeleton oil seal made of imported durable rubber, and has oil filling device, which has good sealing effect and long service life. The discharge valve is plugged with a plunger type. The inner surface of the door block is closely matched with the inner wall of the container, and there is no dead zone of the mixture, so that the materials are evenly mixed. The door plug is sealed by end face and the seal is reliable. The temperature measurement point is set in the container, and it is in direct contact with the material, and the temperature measurement is accurate. The cold machine blades use large angled blades to force the material to rise along the inner wall of the container and return to the cooling jacket for cooling purposes. The wall of the vessel is provided with a cooling interlayer, and the cooling interlayer is provided with a spiral water passage to allow the cooling water to flow according to a set route. Cool evenly, fast cooling and good cooling effect. The container has an inverted truncated cone-shaped inner cooling jacket, which increases the cooling area and speeds up the cooling. The cold machine introduces the foreign deceleration technology and adopts the direct deceleration device, which overcomes all the disadvantages of using the reducer and makes the operation more stable. An exhaust device is arranged on the cover of the cold machine to fully eliminate the gas generated by the hot mix during the cooling process, thereby improving the quality of the product. The inner wall of the container of the unit is made of 6mm thick stainless steel plate, which increases the service life of the machine. The main shaft is made of 40CrZ and the hardness is HrC28-32. The electrical control system is temperature and time dual control, and other components are made of well-known enterprise products to make their performance reliable and more sensitive, ensuring the performance of the whole machine. According to the characteristics of the material, the stainless steel blade has two kinds of disc blades and three blades. The agitating paddle is driven by a motor through a triangular tape. It rotates clockwise to make the material move along the wall of the pot on the one hand, and simultaneously circulates up and down, processing the baffle to make the mixing effect better. Since the material is moving at a high speed, the friction between the material and the blade is very high, which causes the temperature of the material to rise rapidly, which not only reduces the heating amount of the wall, but also favors the resin to the plasticizer. Absorption, the mixing slurry is made of stainless steel, carefully machined, wear-resistant, corrosion-resistant.
Details specification pictures mixer:
|Model||Total volume||Available capacity||Motor power||Shaft speed||Heating method|
BEISU machinery and equipment recommendation: PVC/PE/PP pipe production line, PVC/PE wood plastic production line, PVC profile/profile production line, PVC/PP/PE/ABS sheet/sheet production line, PVC edge band production line and mill, High-speed mixer (group), crusher, sharpener, shredder, tractor, winder, cutting machine and other plastic auxiliary machinery.
Why choose BEISU Machinery:
A1: Plant construction, renovation plan, pipeline laying plan in the plant, construction plan of circulating cooling pool
A2: Supply of raw materials, transformers, air compressors and other procurement plans
A3: Provide relevant raw material specific formula, high quality raw material suppliers, raw material cost accounting
A4: Installation equipment, commissioning equipment, training staff, and provide technical support throughout the year
A5: BEISU company has a plastics industry engineering alliance nationwide, in the case of distance, can provide relevant talents in your company year-round work, as a technology backing
