Long Life PVC Heating Plastic Mixer Machine For Fiber Powder Materials

Long Life PVC Heating Plastic Mixer Machine For Fiber Powder Materials
Long Life PVC Heating Plastic Mixer Machine For Fiber Powder Materials Long Life PVC Heating Plastic Mixer Machine For Fiber Powder Materials Long Life PVC Heating Plastic Mixer Machine For Fiber Powder Materials Long Life PVC Heating Plastic Mixer Machine For Fiber Powder Materials Long Life PVC Heating Plastic Mixer Machine For Fiber Powder Materials

Large Image :  Long Life PVC Heating Plastic Mixer Machine For Fiber Powder Materials

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: BS-SHR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film packing and pallet fixed on the machine bottom
Delivery Time: 20 working days
Payment Terms: L/C, D/P,, T/T, Western Union
Supply Ability: 150 Sets per year
Detailed Product Description
Material: UPVC/CPVC/OPVC/PE/PP/MB/CORBON Model: Heating Mixer,heating Cooling Mixer, Cooling Mixer
Mixer Model: SHR-1500 Heating Mixermotor Power: 45/75/90/110/160/200/250Kw
Inverter Brand: ABB Temperature Control Brand: OMRON
Capacity: 3600Kg/h
High Light:

industrial mixer machine

,

high speed mixer machine



SHR-3000L high speed plastic PVC powder mixing machine with electric heating



Application:

It is used in the process of compounding, mixing, drying and coloring of various plastics. It is the most ideal equipment for profile and pipe manufacturers.



Features:

The concave and convex double-channel sealing method is adopted between the container cover and the container, and the sealing effect is better than the conventional single-channel flat sealing. The main shaft seal is made of three-layer skeleton oil seal made of imported durable rubber, and has oil filling device, which has good sealing effect and long service life.
The discharge valve is plugged with a plunger type. The inner surface of the door block is closely matched with the inner wall of the container, and there is no dead zone of the mixture, so that the materials are evenly mixed. The door plug is sealed by end face and the seal is reliable. The temperature measurement point is set in the container, and it is in direct contact with the material, and the temperature measurement is accurate.
The cold machine blades use large angled blades to force the material to rise along the inner wall of the container and return to the cooling jacket for cooling purposes.
The wall of the vessel is provided with a cooling interlayer, and the cooling interlayer is provided with a spiral water passage to allow the cooling water to flow according to a set route. Cool evenly, fast cooling and good cooling effect. The container has an inverted truncated cone-shaped inner cooling jacket, which increases the cooling area and speeds up the cooling.
The cold machine introduces the foreign deceleration technology and adopts the direct deceleration device, which overcomes all the disadvantages of using the reducer and makes the operation more stable. An exhaust device is arranged on the cover of the cold machine to fully eliminate the gas generated by the hot mix during the cooling process, thereby improving the quality of the product.

The electrical control system is temperature and time dual control, and other components are made of well-known enterprise products to make their performance reliable and more sensitive, ensuring the performance of the whole machine.

According to the characteristics of the material, the stainless steel blade has two kinds of disc blades and three blades. The agitating paddle is driven by a motor through a triangular tape. It rotates clockwise to make the material move along the wall of the pot on the one hand, and simultaneously circulates up and down, processing the baffle to make the mixing effect better. Since the material is moving at a high speed, the friction between the material and the blade is very high, which causes the temperature of the material to rise rapidly, which not only reduces the heating amount of the wall, but also favors the resin to the plasticizer. Absorption, the mixing slurry is made of stainless steel, carefully machined, wear-resistant, corrosion-resistant.

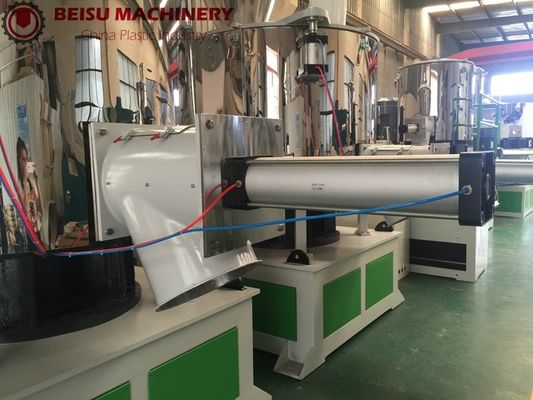

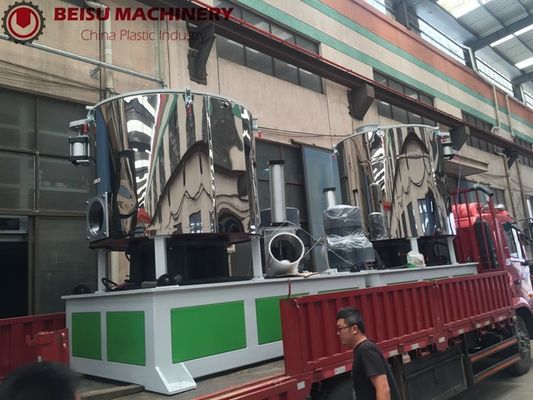

Details specification pictures mixer:

Long Life PVC Heating Plastic Mixer Machine For Fiber Powder Materials 0Long Life PVC Heating Plastic Mixer Machine For Fiber Powder Materials 1Long Life PVC Heating Plastic Mixer Machine For Fiber Powder Materials 2Long Life PVC Heating Plastic Mixer Machine For Fiber Powder Materials 3Long Life PVC Heating Plastic Mixer Machine For Fiber Powder Materials 4Long Life PVC Heating Plastic Mixer Machine For Fiber Powder Materials 5





Technical date:

Model Total volume Available capacity Motor power Shaft speed Heating method
SHR-5A 5L 3L 1.1Kw 1400rpm Self friction/electric
SHR-10A 10L 7L 3Kw 2000rpm
SHR-25A 25L 20L 5.5Kw 1440rpm
SHR-50A 50L 35L 7/11Kw 750/1500rpm
SHR-100A 100L 75L 14/22Kw 650/1300rpm
SHR-200A 200L 150L 30/42Kw 475/950rpm
SHR-300A 300L 225L 40/55Kw 475/950rpm
SHR-500A 500L 375L 47/67Kw 430/860rpm
SHR-800A 800L 600L 60/90Kw 370/740rpm
SHR-1000A 1000L 750L 83/110Kw 350/700rpm



BEISU Machinery:

BEISU machinery and equipment recommendation: PVC/PE/PP pipe production line, PVC/PE wood plastic production line, PVC profile/profile production line, PVC/PP/PE/ABS sheet/sheet production line, PVC edge band production line and mill, High-speed mixer (group), crusher, sharpener, shredder, tractor, winder, cutting machine and other plastic auxiliary machinery.



Why choose BEISU Machinery:
A1: Plant construction, renovation plan, pipeline laying plan in the plant, construction plan of circulating cooling pool

A2: Supply of raw materials, transformers, air compressors and other procurement plans

A3: Provide relevant raw material specific formula, high quality raw material suppliers, raw material cost accounting

A4: Installation equipment, commissioning equipment, training staff, and provide technical support throughout the year

A5: BEISU company has a plastics industry engineering alliance nationwide, in the case of distance, can provide relevant talents in your company year-round work, as a technology backing
