UPVC CPVC OPVC Conical Twin Screw Extruder With SIEMENS PLC

Certification
China Zhangjiagang Beisu Machinery Co., Ltd. certification
China Zhangjiagang Beisu Machinery Co., Ltd. certification
The quality of the machine of Beisu Machinery is very stable, the output is high, the details are very user friendly, and they provide a quick response when we need service.

—— Ahmed Zeitoun

The quality of the high speed mixer produced by Beisu Machinery is outstanding. We have ordered 3 sets of equipment and they are all in use. Maria provides our professional and prompt after sales service.

—— Adrew

I'm Online Chat Now

UPVC CPVC OPVC Conical Twin Screw Extruder With SIEMENS PLC

UPVC CPVC OPVC Conical Twin Screw Extruder With SIEMENS PLC
UPVC CPVC OPVC Conical Twin Screw Extruder With SIEMENS PLC UPVC CPVC OPVC Conical Twin Screw Extruder With SIEMENS PLC UPVC CPVC OPVC Conical Twin Screw Extruder With SIEMENS PLC

Large Image :  UPVC CPVC OPVC Conical Twin Screw Extruder With SIEMENS PLC

Product Details:
Place of Origin: China
Brand Name: BEISU
Certification: CE
Model Number: SJSZ65/132
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Plastic films with wood tray
Delivery Time: 40 DAYS
Payment Terms: L/C, T/T
Supply Ability: 100 SET PER YEAR
Detailed Product Description
PLC Brand: SIEMENS Feeding: Twin Screw Force Feeding
Screw Model: `Doube Screw Weight: 5000kg
Application: PVC Pellet Condition: New
Plastic Processed: PVC,wood Powder Warranty: 1 Year
Raw Material: PVC Powder,Caco3
High Light:

UPVC conical twin screw extruder

,

CPVC conical twin screw extruder

,

OPVC conical twin screw extruder

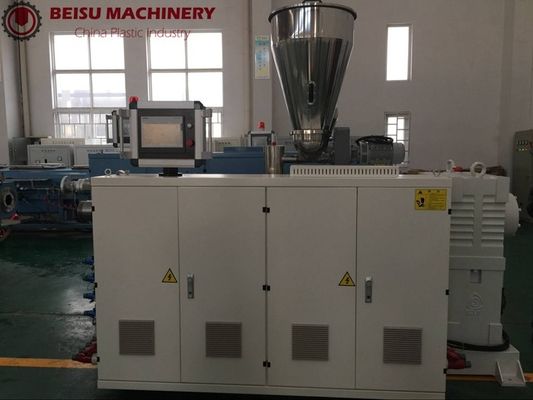

SJSZ65/132 UPVC/CPVC/OPVC conical twin screw extruder with SIEMENS PLC



Application;

SJSZ-65/132 twin-screw extruder is mainly used for extrusion of PVC electrical casing 16-40mm, PVC water supply pipe 50-110mm, PVC drainage pipe 50-110mm.



The SJSZ-65/132 twin-screw extruder adopts a tapered tapered screw structure, which can greatly improve the quality of plasticizing and mixing of PVC materials. The extruded pipe has the characteristics of good plasticizing effect and good effect.



The specific technical parameters are as follows:
- Screw diameter: 65/132mm
- Screw barrel material: 38CrMoAlA, using Zhoushan famous brand products
- barrel heating and cooling: using cast aluminum heating ring, stainless steel cover, beautiful
- barrel heating power: 4 sections heating, 12kw total heating power
-Cylinder cooling: air-cooled, 0.25kw/stage, 3-stage cooling
- Screw speed: 0.5-34.7 rev / min
-Motor power: 37kw, Xi'an Sima AC or DC motor
- Host speed control: thyristor DC speed regulator or Danish Hailip inverter
- Contactor: Schneider brand products
- Circuit breaker, open: Delixi brand products
- Intermediate relay: Schneider brand products
- Push button switch: Schneider products
- Temperature control table: Omron or RKC brand products
- With main motor overload protection alarm system
-The gearbox distribution box adopts the hard tooth surface gearbox distribution box of Jiangyin Gearbox Factory.
-Host quantitative feeding device, feeding motor power, 0.75kw, feeding speed regulation, frequency control, using Danish Hailip brand inverter



UPVC CPVC OPVC Conical Twin Screw Extruder With SIEMENS PLC 0

UPVC CPVC OPVC Conical Twin Screw Extruder With SIEMENS PLC 1UPVC CPVC OPVC Conical Twin Screw Extruder With SIEMENS PLC 2

Main technical parameter:

Model SJSZ51 SJSZ65 SJSZ80 SJSZ92 SJSZ105
Screw DIA(mm) 51/105 65/132 80/156 92/188 105/216
Qty of screw 2 2 2 2 2
Screw direction Opposite and outer
Screw speed(rpm) 1-37 1-34.7 1-36.9 1-33 1-32
Screw length(mm) 1065 1440 1800 2500 3330
Structure Conical mesh
Main motor power(kw) 22 37 55 90 185
Total power(kw) 38 58 90 140 255
Output(max: kg/h) 135 250 450 800 1400
Qty of barrel heating zone 4 4 5 5 6
Feeder Screw dosing
Center height of machine(mm) 1000 1000 1000 1100 1300




FAQ

Q1: Are you a factory or trading company?
A: We are the manufacturer and we have 5 years factory experience .As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit to our factory.
Q2: How long is the delivery time?
A: For standard machines, it would be 7-10 working days; For non-standard machines and customized machines according to client s specific requirements, it would be 25 to 35 working days.
Q3: How should I pay for my order ? what is the procession of this purchase?
A:You can do 30% prepayment at first, then we will start to make production. When the machines are ready , we will take pictures and videos to you, and then you can do the balance.After we got your payment. We will send the machine to you.
Q4:How is the machine warranty and after-sale service?
A: All our machine would have a warranty of 12 months since the date of machine installation in client's factory. And beyond warranty period, we can offer spare parts or repair service with or without charges.
