1.1kw CE Pex Tubing Cutter Plastic Auxiliary Machine

Certification
China Zhangjiagang Beisu Machinery Co., Ltd. certification
China Zhangjiagang Beisu Machinery Co., Ltd. certification
The quality of the machine of Beisu Machinery is very stable, the output is high, the details are very user friendly, and they provide a quick response when we need service.

—— Ahmed Zeitoun

The quality of the high speed mixer produced by Beisu Machinery is outstanding. We have ordered 3 sets of equipment and they are all in use. Maria provides our professional and prompt after sales service.

—— Adrew

I'm Online Chat Now

1.1kw CE Pex Tubing Cutter Plastic Auxiliary Machine

1.1kw CE Pex Tubing Cutter Plastic Auxiliary Machine
1.1kw CE Pex Tubing Cutter Plastic Auxiliary Machine 1.1kw CE Pex Tubing Cutter Plastic Auxiliary Machine 1.1kw CE Pex Tubing Cutter Plastic Auxiliary Machine

Large Image :  1.1kw CE Pex Tubing Cutter Plastic Auxiliary Machine

Product Details:
Place of Origin: CHINA
Brand Name: BEISU
Certification: CE,ISO
Model Number: BS-110,160,200,250,315
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD3000 PER SET
Packaging Details: Plastic film package
Delivery Time: 15 working days
Payment Terms: L/C, T/T, D/P
Supply Ability: 100 sets per month
Detailed Product Description
Suitable Material: PE,MPP,PP,PEX Suitable Pipe Range: 110mm~315mm
Motor Power: 1.1kw,2.2kw,3kw Dust Collection System: 0.75Kw
Blades Diameter: 82 Blades Moving: 700
Speed: 0-5
High Light:

1.1kw pex tubing cutter

,

1.1kw plastic tubing cutter

,

CE pex tubing cutter

20mm~125mm Plastic PE MPP PERT pipe cutting machine with SIEMENS PLC system

Applicable pipes: PPR, HDPE, PVC, ABS, PERT, TPU, PB, etc.
Pipe diameter 16mm-2000mm.
This machine is used to cut plastic pipes during pipe production or offline work. The maximum cutting thickness is 120mm and the size is 16-2000mm pipe. For small diameter pipes, we have high speed flying knives. For medium diameter pipes, we have planetary cutters and no dust collectors. For large diameter pipes, we do not have a dust collector and a saw blade cutter.
High performance, precision, suitable construction and design of the parts. Without auxiliary parts, the cutting tube is flat and smooth, which realizes the flash cutting of small-diameter pipes and solves the problem of high-speed hard cutting. produce.

Characteristic:
A1.Pneumatic compression; High parallelism; Precise tracking

A2.Acceptable arbitrary cutting signal,such as encoder, photoelectric switch, travel switch, proximity switch, etc.
A3.High automation, high cutting quantity
A4.Compact structure, beautiful appearance, low noise
A5. Can be equipped with a dust-separation equipment to keep the environment clean .


Introduction of Auto-cutter:
A1-Planetary cutter is mainly used to cut plastic pipes,such as PVC/UPVC pipes, HDPE/PP/PPR pipes etc.Used in plastic pipe production line.
A2-It is an ideal machine for cutting large diameter pipe, such as PE pipe, PP pipe, PPR pipe, PVC pipe, PC pipe, etc.
A3-High degree of automation, large amount of cutting, beautiful appearance.
A4-When cutting a pipe, it cannot produce chips, and the cut is smooth. So it saves the raw material, also is advantageous to the corresponding pipeline connector product.

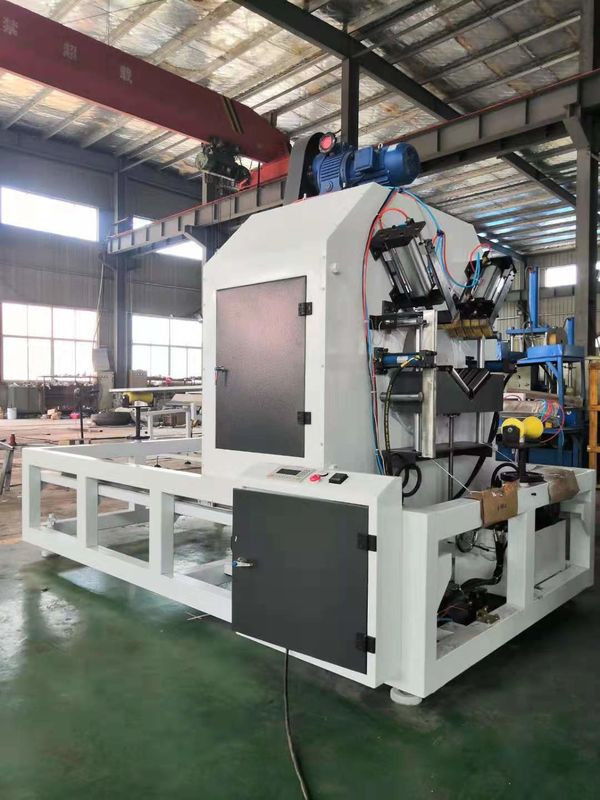

Pictures:
1.1kw CE Pex Tubing Cutter Plastic Auxiliary Machine 0
1.1kw CE Pex Tubing Cutter Plastic Auxiliary Machine 1
1.1kw CE Pex Tubing Cutter Plastic Auxiliary Machine 2
1.1kw CE Pex Tubing Cutter Plastic Auxiliary Machine 3

Techincal parameter:

Model QG-250 QG-400 QG-630
Cutting method Saw cutting(saw must small serration)
cutting pipe diameter range(mm) Φ63-Φ250 Φ200-Φ400 Φ250-Φ630
Cutting motor power(kw) 2.2 2.2 3
Rotating motor power (kw) 0.75 1.1 1.5
Central height(mm) 1000 1000-1200 1200-1500
Cutting pipe thickness 15 25 30


BEISU Machinery:
BEISU machinery and equipment recommendation: PVC/PE/PP pipe production line, PVC/PE wood plastic production line, PVC profile/profile production line, PVC/PP/PE/ABS sheet/sheet production line, PVC edge band production line and mill, High-speed mixer (group), crusher, sharpener, shredder, tractor, winder, cutting machine and other plastic auxiliary machinery.

Why choose BEISU Machinery:
A1: Plant construction, renovation plan, pipeline laying plan in the plant, construction plan of circulating cooling pool
A2: Supply of raw materials, transformers, air compressors and other procurement plans
A3: Provide relevant raw material specific formula, high quality raw material suppliers, raw material cost accounting
A4: Installation equipment, commissioning equipment, training staff, and provide technical support throughout the year
A5: BEISU company has a plastics industry engineering alliance nationwide, in the case of distance, can provide relevant talents in your company year-round work, as a technology backing
